Summary of Contents for FOS Technologies PAR 7x10W ALU

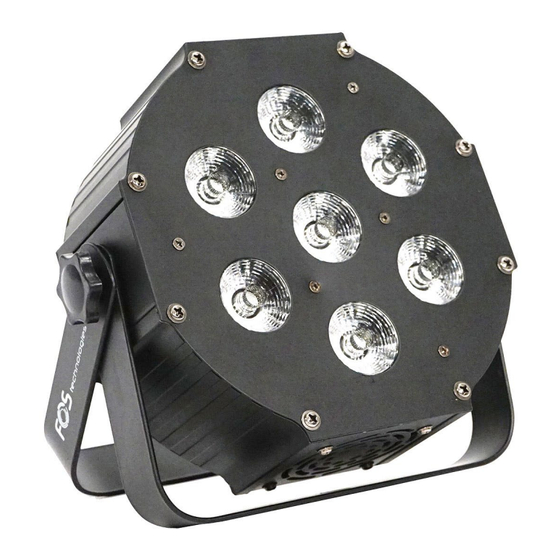

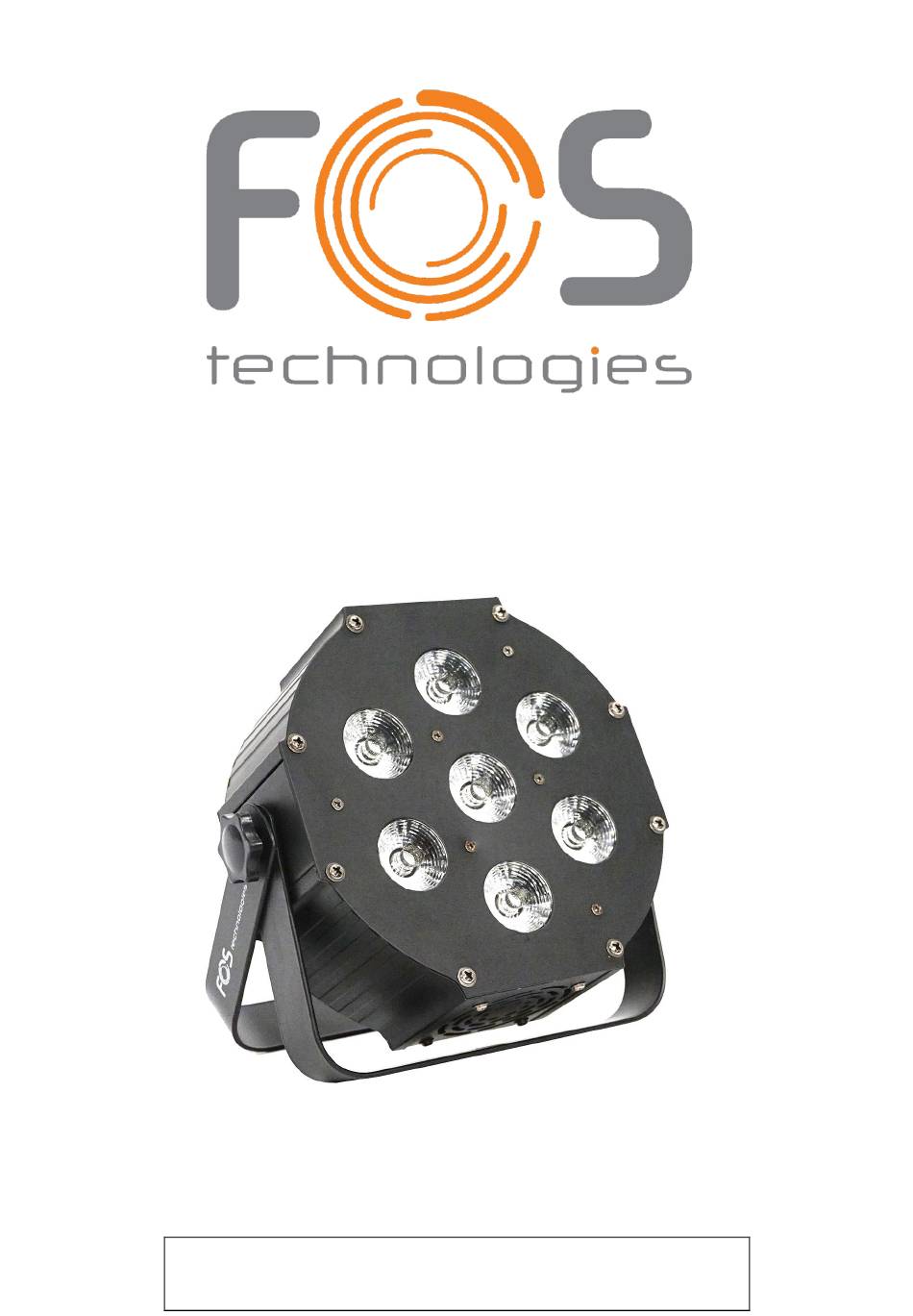

- Page 1 FOS PAR 7x10W ALU This manual contains important information. Please read before operating fixture.
-
Page 2: Security Tips
1. SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: non-professionals, not to disassemble the light arbitrarily and lighting accessories inside. rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected). - Page 3 2 TECHNOLOGY REFERENCE Power supply : AC90~240V / 50~60Hz Power consumption:70W Led:7pcs×10W RGBW LED 4in1 Beam angle:15° 25° 40° optional DMX channels:8 CHS Control mode: DMX, Auto,Sound,Master-slave, strobe ,dimmer Housing Material : Aluminium Protection:IP20 Working Environment :-20~40℃ Packing size: 22.5×10×22.5Cm (1pc/CTN) Packing size: 49×34×51Cm (12pcs/CTN) N.W.：1.8Kg G.W.：24Kg(12pcs/CTN)
-
Page 4: Operate Menu
ENTER to save the value you want. If you don’t want to save the value, press MENU more than 2sec. is okay. Operate Menu... -
Page 5: Dmx Channel Sheet
4 DMX CHANNEL SHEET Channel Value Discription Rmaind 0-10 No function 11-50 macro A1 51-100 macro A2 Macro function 101-150 macro A3 151-200 macro A4 201-255 macro A5 0-39 All color 40-49 50-59 Green 60-69 Blue 70-79 Yellow 80-89 Cyan 90-99 Purple 100-109... -
Page 6: Fixed Equipment
0-255 Speed Adjustable 0-255 Master dimming 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 5 FIXED EQUIPMENT Please fasten the fixture clamp before hanging. The clamp can be fasten by the little hole in the middle of the bracket, then tie with a safety belt. -
Page 7: Maintenance
7 Maintenance Problems Check list Trouble Shooting The fixture do 1. If your power as same as the input 1. Make sure the voltage. not work of the machine. 2. Replace the same fuse. 2. If the fuse was broken. LED dimmed If your power us same as the input Make sure the voltage... - Page 8 2. If the machine is wrong and need repairmen, please truthfully fill in the related content and feedback us the problems timely, as well as we have to improve the product. 3. In addition to the lamp, also matching accessories are as follows： accessories：...
- Page 9 Note: Based on our company continue to improve the product, the statement containing data may have changed, and will not notice the change any more. Company retains its right to change specifications related when product is improved. Thanks for your understanding.
