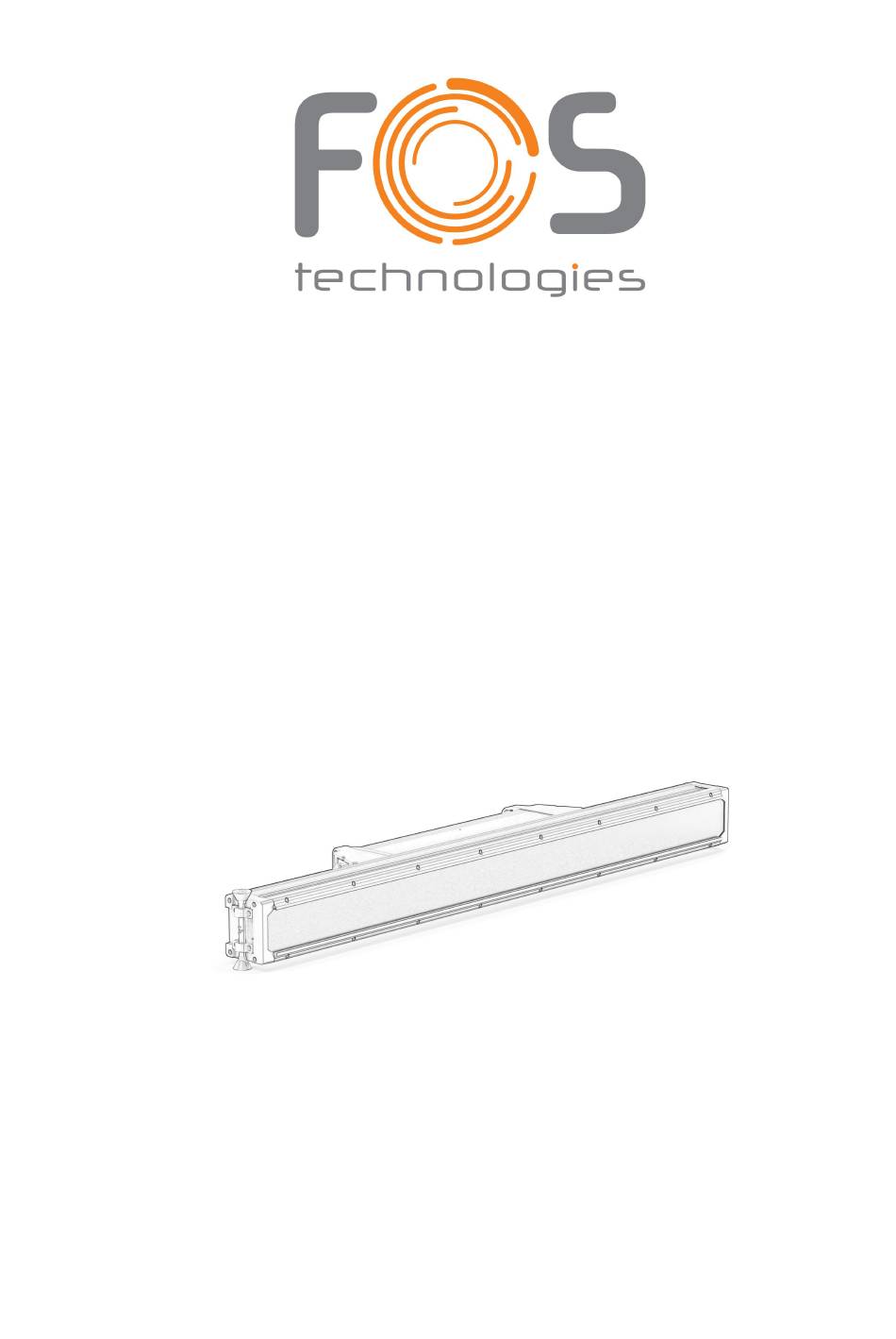

- Page 1 FOS SuperStorm User manual...
-
Page 2: Safety Warning Information
Safety warning information After receiving the lights, please open to check whether there is any damages caused by transportation. In case of damages caused of transportation, please don’t this device and contact your dealer or manufacturer as soon as possible. he projector is for indoor and outdoor use, IP65. -
Page 3: Installation
Always disconnection from Power before the device’s installation, cleaning and maintenance Installation 1.Installed on the ground 2.Hanging 3.Splicing 4.Diffuser 3/12... - Page 4 Take out 2 clamps and 1 safety rope, install the 2 clamps on the bottom of the fixture with the 4 quick knob attached to the clamps , then hang the fixture on the fixed support with the clamp, and tighten the clamp lock bolt to fix the fixture.
-
Page 5: Dmx Address Setting
Function and installation power-on password: UP - DOWN- UP - DOWN- ENTER Press button UP or DOWN if you want to browse through the various Setup Options. Press button ENTER to save your settings or enter the next menu. Press button UP or DOWN to shift. Press button Menu will return to the upper menu one by one. - Page 6 Operation menu power-on password: UP - DOWN- UP - DOWN- ENTER 1st LEVEL 2nd LEVEL 1rd LEVEL 1th LEVEL DMX Address enter （1~499） 13 CH (DMX) enter 64 CH (DMX) DMX channel enter model 89CH (DMX) enter Hold enter Manual enter OFFline statu Auto...
- Page 7 White 3 0-255 White 4 0-255 White 5 0-255 White 6 0-255 White 7 0-255 White 8 0-255 Show RGB 0-255 Speed RGB 0-255 Show W 0-255 Speed W 0-255 Char Color 0-255 Auto Prgram Char1 0-255 Char 2 0-255 Char 3 0-255 Char 4...
- Page 8 DMX channel list 13 Channel Channel Name Description Value Percentage Dimmer 0-255 0-100% 0-100%Intensity Strobe 0-255 0-100% 0-100% Strobr frequency Macro 1 0-10 0-100% invalid 11-20 0-100% Fx 1 ..245-255 Fx 25 Macro 1S 0-255 Macro 2 0-10 0-100% invalid 11-20 0-100%...
- Page 9 pixel module 16 B 0-255 0-100% 0-100% Blue pixel module 16 W 0-255 0-100% 0-100% W 89 Channel Channel Name Description Value Percentage Dimmer-W 0-255 0-100% 0-100%Intensity 0-100% Strobr frequency Dimmer-RGBW 0-255 0-100% Strobe 0-255 Macro 1 0-10 0-100% invalid 11-20 0-100% Fx 1...
-
Page 10: Maintenance
Maintenance To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens and dichroic color filters should also be regularly cleaned to maintain an optimum light output. Do NOT use any type of solvent on dichroic color filters. -
Page 11: Technical Data
Technical data Input voltage： AC 100V/120V/200V/220V /230V/240V 50/60Hz Power ： 700W@220V LED light source： Strobe Tube LEDS LED Type: 3535 5W 6500K LEDs LED Count: 144 LED Colors: Cool-White LED Segments: 16 LED Type: 5050SMD 2W RGBW 4 in1 Strobe Panel LEDs LED Count: 242 LED Colors: Cool-White LED Segments: 32 (2x16) - Page 12 Shell and protection level： High-strength casting aluminum alloy，IP66 black shell（white optional） Working temperature： -20°C～40°C Weight： 8.9 Kg Produce size： See below 12/12...
