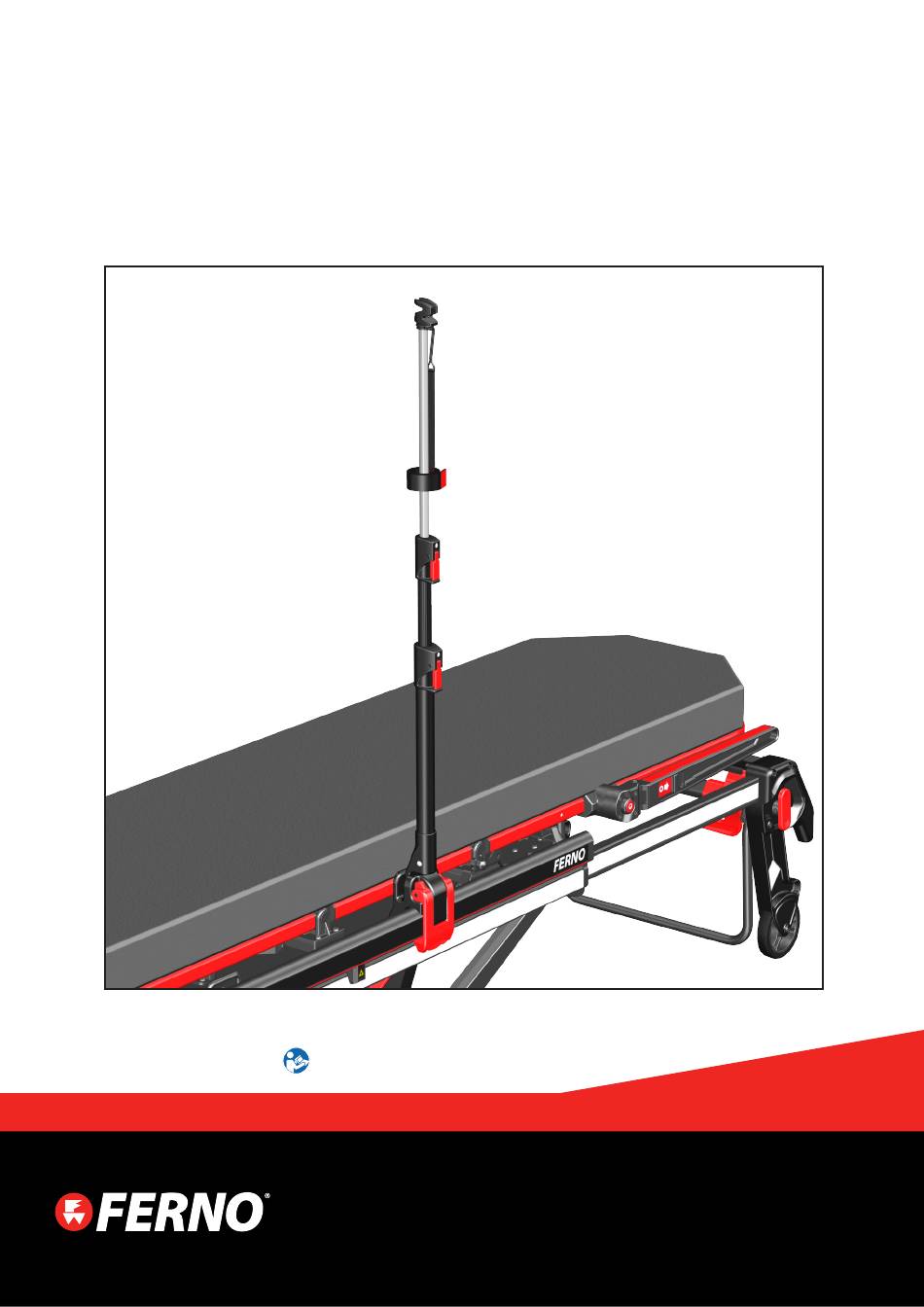

- Page 1 IV Pole Clamp On, 3-Stage LAIV-3SCL Read this Manual and Retain for Future Reference Users’ Manual Pub. No. 00271-AU-V3 Oct 2021...
-
Page 2: Ferno Customer Relations
+61 7 3881 4999 Limited Warranty Statement Ferno S.r.l. The products sold by Ferno are covered by a limited warranty, which Via B. Zallone 26, 40066 is printed on all Ferno invoices. The complete terms and conditions of Pieve di Cento, Bologna, Italy the limited warranty, and the limitations of liability and disclaimers, +39.051.6860028... -
Page 3: Table Of Contents
General Specifications ____________________________ 5 Components ____________________________________ 6 4 - Using the IV Pole _____________________________________ 7 Before Placing the IV Pole in Service _________________ 7 General Guidelines for Use _________________________ 7 Mounting the IV Pole _____________________________ 7 IV Pole Mounting Location _________________________ 7... -
Page 4: Safety Information
1.5 Symbol Glossary Warning notices indicate a potentially hazardous situation which, if The symbols defined below are used on the IV pole and/or in not avoided, could result in injury or death. this’ manual. Ferno uses symbols recognized by the International... -
Page 5: Operator Focus
3.1 Description WARNING The Ferno® Model LAIV-3SCL IV pole (called the IV pole in this manual) Improper use of the IV pole can cause injury. Use the IV is a device designed to carry IV solution bags and infustion pumps. -
Page 6: Components
About the IV Pole 3.3 Components IV Pole Tip Top Tube IV Bag Strap Small Clamp Small Clamp Lever Middle Tube Large Clamp Large Clamp Lever Bottom Tube Instruction Pivot Label (N/S)* Clamp Extrusion Release Lever Clamp Body *N/S = Not Shown... -
Page 7: Using The Iv Pole

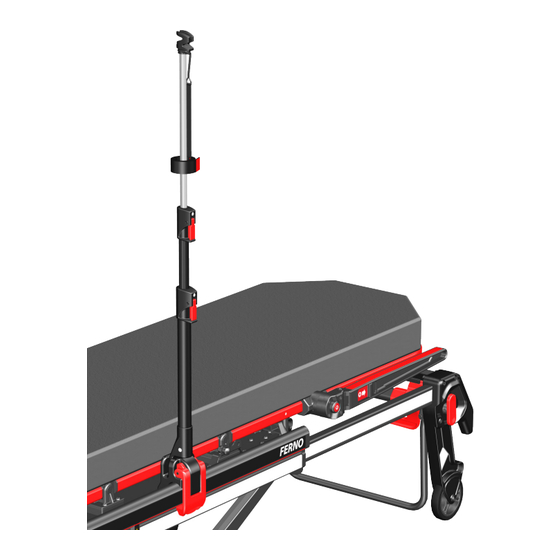

Mount the IV pole so that it does not interfere with the operation of the cot or iN∫X. Foot End Each IV pole mounts on a Mondial® Monobloc or iN∫X. Figure 1 and 2 illustrate the correct mounting area(s). A properly mounted IV pole: is mounted on the accessory rail of the cot or iN∫X. -
Page 8: Attaching The Iv Pole
Note: Attaching the IV pole is easier with the pole in the upright position. Determine which side of the cot or iN∫X the IV pole is to be mounted to. With the IV pole in the upright position, fit the extrusion clamp body on the inner surface of the accessory rail, and verify the latch bar is engaged on the lip of the accessory rail (Figure 3). -
Page 9: Attaching The Iv Bag Strap
Push the cord loop of the IV bag strap through the hole at the bottom of the IV pole tip (Figure 8). Pull the cord loop over the IV pole tip (Figure 9), and align the loop with the groove near the base of the IV pole tip (Figure 10). -
Page 10: Adjusting The Pole Height
The IV pole has three sections with two adjusters to provide a compact Top Tube IV pole that can be quickly adjusted to a wide range of heights. The top and middle stages of the IV pole can be raised or lowered in any Small Clamp sequence. -
Page 11: -Maintenance
Water under high pressure can penetrate joints, flush away CLEANING lubricant and cause corrosion. Do not use a high-pressure Hand clean all surfaces of the IV pole with warm water and a washer or steam, to clean the IV pole. mild detergent. -
Page 12: Parts And Service
1.937.383.1052 +1.937.383.1051 Internet www.EMSAR.com 6.2 Worldwide To order Ferno parts, and for professional IV Pole repair, contact your Ferno distributor. Your distributor is the only agent authorized by Ferno to manage, service, and repair Ferno products. 6.3 Parts List Part... -
Page 13: Training Record
Training Record TRAINING RECORD Date Name Training Method © Ferno-Washington, Inc. / 00271-V3... -
Page 14: Maintenance Record
Maintenance Record MAINTENANCE RECORD Date Maintenance Performed © Ferno-Washington, Inc. / 00271-V3... - Page 15 Maintenance Record MAINTENANCE RECORD Date Maintenance Performed © Ferno-Washington, Inc. / 00271-V3...
