- Page 1 FERNO ® Users’ Manual When It’s Critical ® Model 35A Series Mobile Transporter ™ 35A, 35A-ST, 35A+, 35A+ST Read this Manual February 2011 GLO and Retain for Pub. No. 234-3451-01 Future Reference...
-
Page 2: Ferno Customer Relations
ALL OTheR LOCATiONS Serial Number _________________________ For assistance or information, please contact your Ferno Location (All Models): Crosstube under shock frame distributor. If you do not have a Ferno distributor, please contact Ferno Customer Relations: Disclaimer Ferno-Washington, Inc. This manual contains general instructions for the use, operation 70 Weil Way and care of this product. -
Page 3: Table Of Contents
Training Record _________________________________31 5.7 Sidearms _________________________________15 5.8 Lead Handle ______________________________16 Maintenance Record ______________________________31 5.9 Wheel Locks (Optional) _____________________16 5.10 Oxygen Cylinder Holder (Models 35A+, 35A+ST Only) _______________17 5.11 Storage Tray (Models 35A+, 35A+ST Only) _____17 © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 4: Safety Information
Attaching improper items to the cot can cause injury. Use Ferno-manufactured cots be used in Ferno-manufactured cot only Ferno-approved items on the cot. fasteners, and that only Ferno-manufactured cot fasteners be Failure to use the safety hook can cause injury. install and used for securing Ferno-manufactured cots in ambulances. -
Page 5: Safety And Instruction Labels
Safety and instruction labels place important information from the users’ manual on the cot. Read and follow label instructions. Replace worn or damaged labels immediately. New labels are available from EMSAR (page 29) or from your Ferno distributor (page 2). -
Page 6: Operator Skills And Training
Use additional help as needed to lift the weight of the cot, operators than from tall operators because short operators must patient and equipment (see Using Additional Help, page 25). raise their arms higher in relation to their shoulders. © Ferno-Washington, Inc 234-3451-01 February 2011... -

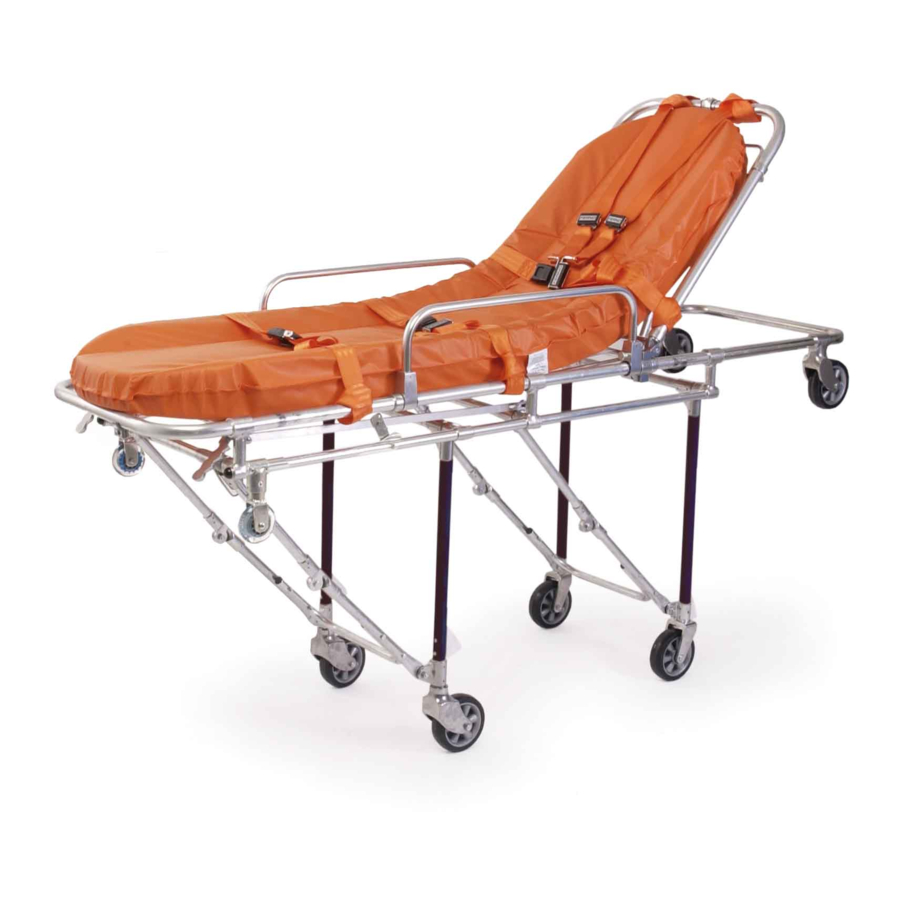

Page 7: About The Cot
A release handle as standard cot features (Model 35A-ST user-installed safety hook is shipped with the cot (Model and Model 35A+ST). -
Page 8: General Specifications
Most general specifications below are rounded to the nearest whole number. Metric conversions are calculated before rounding FOLDeD POSiTiON the Imperial measurements. For more information, contact Ferno Use the folded position to transfer the patient, secure the cot Customer Relations (page 2) or your Ferno distributor. -
Page 9: Setup And Installation
ANTLeR-AND-RAiL FASTeNeR fastener is removable (installed with large turn-knobs for easy removal). The Models 35A and 35A+ cots are compatible with all versions of the Ferno Model 175 antler-and-rail cot fasteners. The cot ®... -
Page 10: Install The Safety Hook
The hardware should be of at least SAE Grade 5 or higher, ● floor, and about the ambulance warranty. with UNC-2 threading (or equivalent), and a corrosion- reisistant coating. Safety Bar Safety Hook Figure 3 - Engaging the Safety Hook © Ferno-Washington, Inc 234-3451-01 February 2011... - Page 11 Drill holes for the screws and attach the safety hook to Lock Washer the floor (Figure 5). To test the hook, load and unload the cot. Verify that there is no interference with folding or unfolding the legs. Figure 5 - Installing the Safety Hook © Ferno-Washington, Inc 234-3451-01 February 2011...
-
Page 12: Using The Features
All Operators/Helperse: Continue to raise or lower the cot until the lock engages. All Operators/Helperse: Before relaxing your grasp on the cot main frame, verify that the cot has locked at the new position. © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 13: Ergonomic Lifting Positions
Raising and Lowering the Cot, page 19. Foot-end Operatore: Select either the upper or lower lifting frame (Figure 8) Head-end Operatore: Models 35A and 35A+ Onlye: Grasp the drop ○ frame or the safety bar (Figure 8) Models 35A-ST, 35A+ST Onlye: Grasp the ○... -
Page 14: Two-Position Drop Frame
When a light patient is on the cot, control the upward movement of the backrest so it does not move too quickly. After Usee: Buckle and/or adjust the harness restraint. ● © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 15: Shock Frame
Sidearm Release ○ need to use the release handle. Handle important Do not use the sidearms to lift the cot. Sidearms are not designed for lifting. Lift the cot only by grasping the main frame. © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 16: Lead Handle
Wheel locks are OT brakes. Engage the wheel ○ locks only when the cot is stationary. Stay with the cot and maintain control of it at all times. Do not leave the patient unattended. © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 17: Oxygen Cylinder Holder (Models 35A+, 35A+St Only)
(Figure 18). Figure 18 - Storage Tray important Items on the tray can interfere with folding the undercarriage. Empty the tray before lowering, folding, or loading the cot. © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 18: Using The Cot
Set up the cot, following the instructions in Setup and Installation, pages 9-11. ● injury. Operate the cot only as described in this manual. Confirm that the cot operates properly. See Inspecting the Cot, page 27. ● The vehicle must have a Ferno cot fastener system installed. ® ● WARNiNg An unattended patient can be 500 lb injured. -
Page 19: Raising And Lowering The Cot
This ensures the undercarriage lock engages if it has not already done so. Both Operatorse: Set the cot onto the floor or ground. Do not release your grasp until you are sure the undercarriage is locked at the new position. © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 20: Transferring The Patient To The Cot
Fasten and adjust the patient restraints (Figure 22). Disengage the wheel locks if needed. Before moving the cot or changing its position, make sure sheets and other articles will not interfere with cot operation. Figure 22 - Securing the Patient © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 21: Rolling The Cot
(grasping the drop frame) or at the side of the cot near the patient’s torso (grasping the main frame, Figure 23). Attend the patient and assist in rolling and steering the cot. © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 22: Preparing To Load The Cot
Release your grip on the undercarriage after all of the cot’s wheels are inside the ambulance. Either Operatore: Secure the cot in the cot fastener. Figure 26 - Loading and Unloading the Cot © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 23: Unloading The Cot
Loose items and debris on the patient compartment floor can interfere with the operation of the cot with the fastener. Keep the patient compartment floor clear. Figure 29 - Disengage the Cot from the Stat Trac® © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 24: One Operator, Empty Cot
Do not load or unload a Stat Trac -compatible cot with one ® operator as this can damage the cot and/or the fastener. Always use two operators to load and unload the 35A-ST or 35A+ST cot. To load the cote: Raise the ambulance folding bumper, if present. -
Page 25: Using Additional Help
They may need additional help when working with heavy loads circumstances. Follow local protocols. (patient plus equipment). Ferno recommends that helpers work in pairs to help ● Operators stand at the head and foot ends of the cot, maintain cot balance. -
Page 26: Maintenance
(see page 28). Wipe all surfaces with disinfectant. Follow the disinfectant manufacturer’s instructions for application method and contact time. Ferno recommends you inspect the cot for damage as you disinfect it. important Using abrasive cleaning compounds or applicators 7.5 Cleaning the Cot... -
Page 27: Waxing The Cot
● 7.7 inspecting the Cot Does the cot load and unload properly? ● 35A, 35A+e: Does the safety hook engage the safety ● Have your service’s equipment maintenance personnel inspect bar? the cot regularly. Follow the checklist at right and operate the cot through all its functions as described in this manual. -
Page 28: Lubricating The Cot
Shock Frame Hinge Do not lubricate Control Mechanisms Do not lubricate Telescoping Leg Do not lubricate ** Cot Serial umbers Before L-322137e: Lubricate wheel bearings and wheel shanks with WRL-191S or SAE 30-weight oil © Ferno-Washington, Inc 234-3451-01 February 2011... -
Page 29: Accessories And Related Products
Wheel fork bearings (1/2") 9.2 Worldwide 090-3335 Locking wheel axle bolt and nut To order Ferno parts, and for professional cot repair, contact your 5" Non-Locking Wheel with Tread Ferno distributor. Your distributor is the only agent authorized by 090-0080 5"... -
Page 30: Parts For Cots Serial Number L-322137 And Higher
*The 2.5" (64 cm) safety hook is for ambulances without a folding bumper. plastic slide bearings n/s = Not Shown 090-5326 Ratchet return spring 090-5527 Center X-frame axle rod with cover Wheel kits (see list) © Ferno-Washington, Inc 234-3451-01 February 2011...
