Summary of Contents for Ronix 2701V

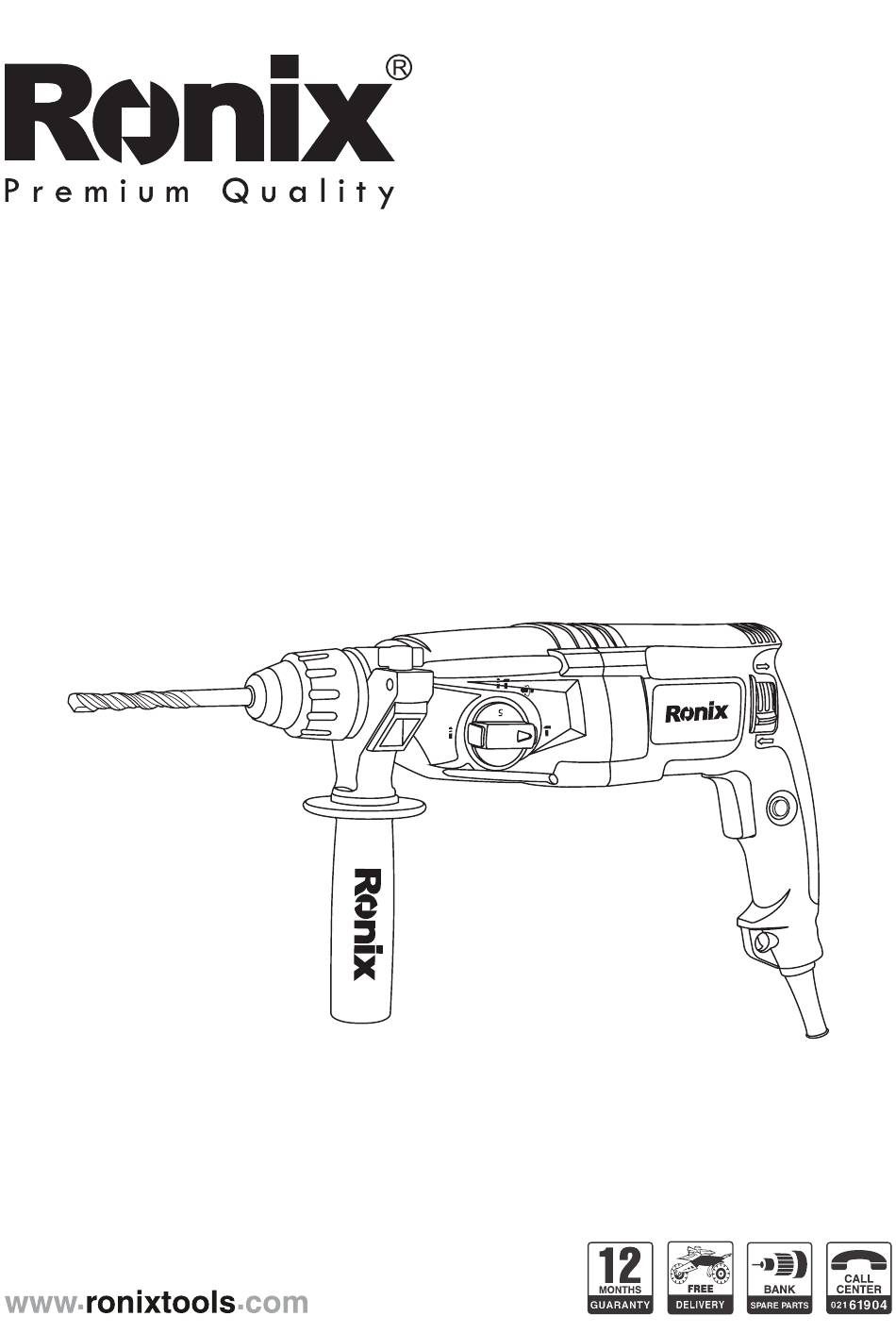

- Page 1 ROTARY HAMMER 26mm 2701V...
-
Page 2: Specifications
SPECIFICATIONS Model 2701V Power 800W Voltage 220V Frequency 50Hz No Load Speed 1100RPM Impact Rate 4000BPM Impact Energy Steel: 13mm Max Drilling Capacity Concrete: 26mm Wood: 40mm Weight 2.6KG Drill bit: 3 pcs Accessories Pointed Chisel: 1pc Flat Chisel: 1pc... -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow al instructions listed below, may result in electric shock, fire and I or serious personal injury. WORK AREA - keep your work area clean and well it. Cluttered benches and dark areas invite accidents. -
Page 4: Personal Safety
Damaged cord increase the risk of electric shock. - When operating a power tool outside, use an outdoor extension cord marked “W-A” or “W”. These cords are rated for outdoor use and reduce the risk of electric shock. PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. - Page 5 workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control. - Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
- Page 6 Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury. SPECIFIC SAFTETY RULES DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to rotary hammer safety rules.
- Page 7 - In cold weather or when the tool has not been used for a long time, let the tool warm up for a while by operating it under no load. This will loosen up the lubrication. Without proper warm-up, hammering operation is difficult. - Do not point the tool at any one in the area when operating.
-
Page 8: Forward/Reverse Switch
Chuck Front Cap INSTALL OR REMOVE SIDE GRIP The side grip has been installed on the machine inside the box. If you want to adjust the angle of side grip, please swivel the grip anticlockwise to loosen it and turn to the desired angle, then swivel it clockwise. -
Page 9: On/Off Switch
Shift the Forward/Reverse switch to forward or reverse drilling. HAMMERING AND DRILLING FUNCTION Press down the small knob and turn the big knob till the “ ” to “ “ and release the small knob, then it is for drilling function only. Press down the small knob and turn the big knob till the “... - Page 10 MAINTENANCE & DAILY CARE CAUTION: Always be sure that the tool is switch off and unplugging before attempting to perform inspection and maintenance. 1) The tool and its air vents have to be keep clean, regularly clean the tool’s air vents or whenever the vents start to become obstructed.
