Ronix 2730 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ROTARY HAMMER
2730

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronix 2730

Summary of Contents for Ronix 2730

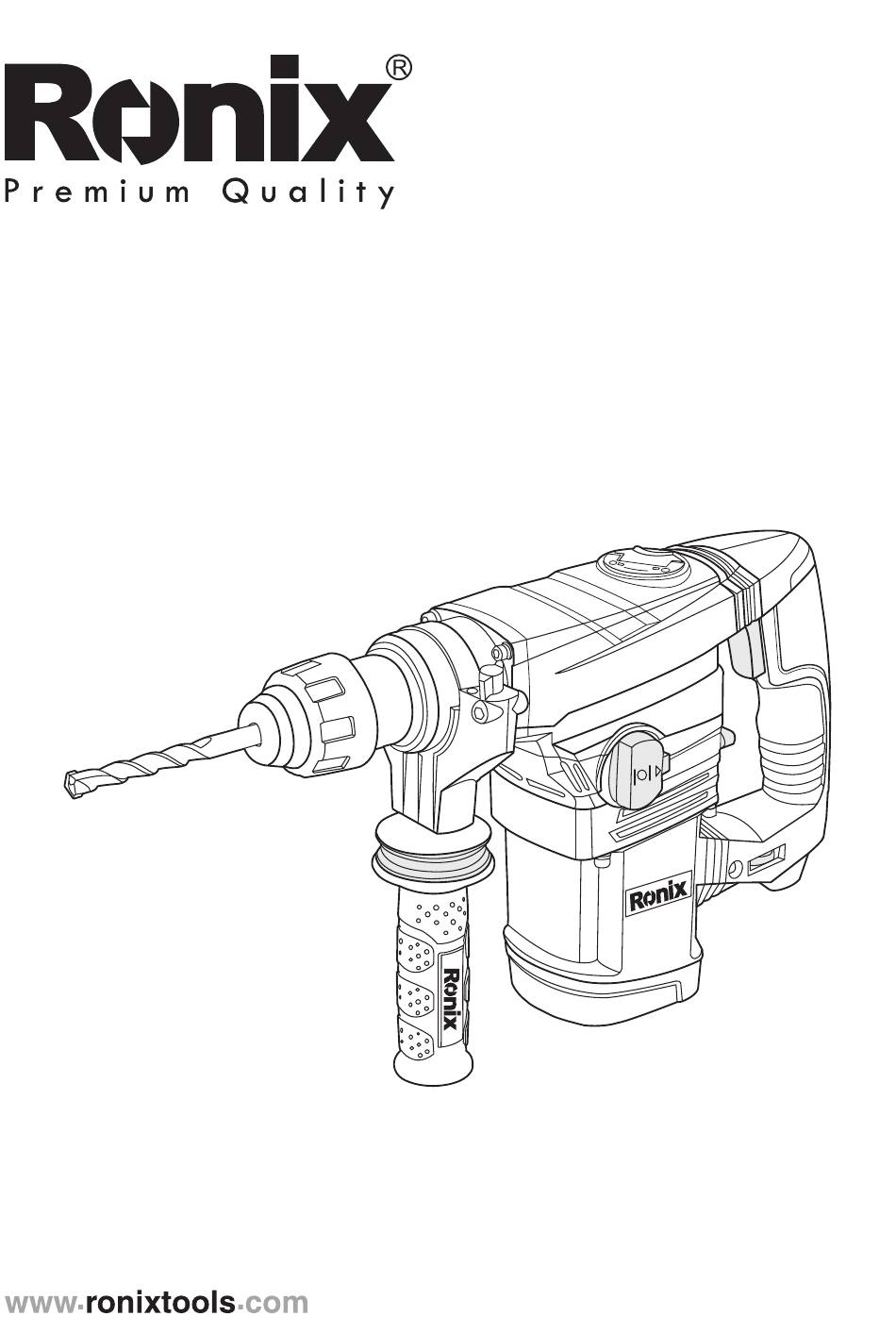

  • Page 1 ROTARY HAMMER 2730...

  • Page 3: Specifications

    SPECIFICATIONS Model 2730 Power 1100W Voltge 220V Frequency 50Hz Impact Rate 0~2600bpm Impact Energy 0~5 J Weight PARTS LIST Oil Gauge Trigger Depth Gauge SDS Chunch Speed Controller Motor Housing FOR YOUR SAFETY WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

  • Page 4: Work Area

    SAVE THESE INSTRUCTIONS WORK AREA a) Keep work area clean and well lit. Cluttered and dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 5 b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Avoid accidental starting. Ensure the switch is in the off position before plugging in.

  • Page 6: Before Use

    parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control;...

  • Page 7: Intended Use

    The voltage of the power source must agree with the value given on the nameplate of the machine. Machines designated for 230 V can also be operated with 220 V. INTENDED USE The machine is intended for hammer drilling in concrete, brick and stone. TOOL CHANGING Take care that the dust protection cap 3 is not damaged when changing tools.

  • Page 8: Working Instructions

    WORKING INSTRUCTIONS Overload Clutch If the drill bit becomes jammed or caught, the drive to the drill spindle is interrupted. - Because of the forces that occur as a result, always hold the machine with both hands and take a secure stance. The machine should be used only with an auxiliary handle.

  • Page 9: Maintenance And Cleaning

    3. Drill mode Turn the mode selector switch 8 to , then turn switch 9 to direction. Sharpening the Chiseling Tools With sharpened insertion tools, one achieves good working performance and long service life. Therefore, sharpen the chisel regularly. Sharpen the chisel regularly. Sharpen the tool on a grinding wheel (e.g.

  • Page 10: Environmental Protection

    ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing as waste. Machine, accessories and packaging should be sorted for environment-friendly recycling. These instructions are printed without chlorine. The plastic components are labelled for categorized recycling. GUARANTEE We guarantee products in accordance with statutory/country-specific regulations (proof of purchase by invoice or delivery note).
