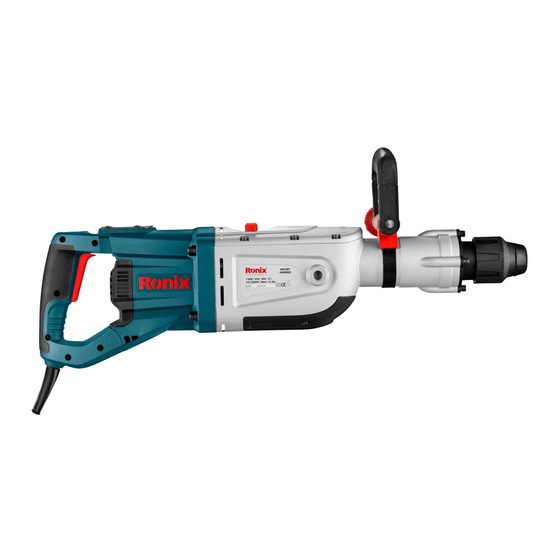

SPECIFICATIONS Model 2750 power 1700W Impact Rates 1850BPM Impact energy Max drilling Capacity 50mm Net Weight 10.3Kg PRODUCT ELEMENTS Mode Selector ON/OFF Switch Lock ON/OFF Button Bit Holder Sleeve Auxilary Handle Rotating Handle FOR YOUR SAFETY Working safely with this machine possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed.
Page 3
The machine must not be damp and must not be operated in a wet environment. Keep long hair away from the machine. Do not operate while wearing loose clothing. - Connect the mains plug only when the tool is switched off. After using, pull the mains plug.
Inserting Clean and lightly the tool before inserting. Insert the dust – free tool into the tool holder 2 with twisting until it latches. The tool locks itself. Check the locking by pulling on the tool. Removing Pull the locking sleeve 4 to the rear and hold while removing the tool. Tools without SDS-max Do not use tools without SDS-Max for hammer drilling or chiseling! Putting into Operation...
Page 5
Turn the mode slector with 7 to 2. Chisel mode Turn the mode selector switch 8 to 3. adjustment mode Turn the mode selector switch 8 to SHARPENING THE CHISELING TOOLS With sharpened insertion tools, one achieves good working performance and long service life.
MAINTENANCE AND CLEANING Before any work on the machine itself, pull the mains plug. For safe and proper working, always keep the machine and the ventilation slots clean. Clean the tool mount daily. Replacing the dust protection Cap Damaged udst protection caps should be replaced as possible since dust that enters the tool holder can cause malfunctions.
Page 7
handling will be excluded from the guarantee. In case of a claim, please send the machine, completely assembled, to your dealer or the service center for electric power tools. Safety instructions WARNING! Read all safety warnings and all instructions Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury.
Page 8
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) if operating a power tools in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Page 9
must be repaired. c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Page 10
Environmental Protection Waste electrical products should not be disposed of with house hold waste, please recycle where facilities exist. Check with your local Authority or retailer recycling advice.
