Ronix 2702 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ROTARY HAMMER
2702

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2702 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 2702

Summary of Contents for Ronix 2702

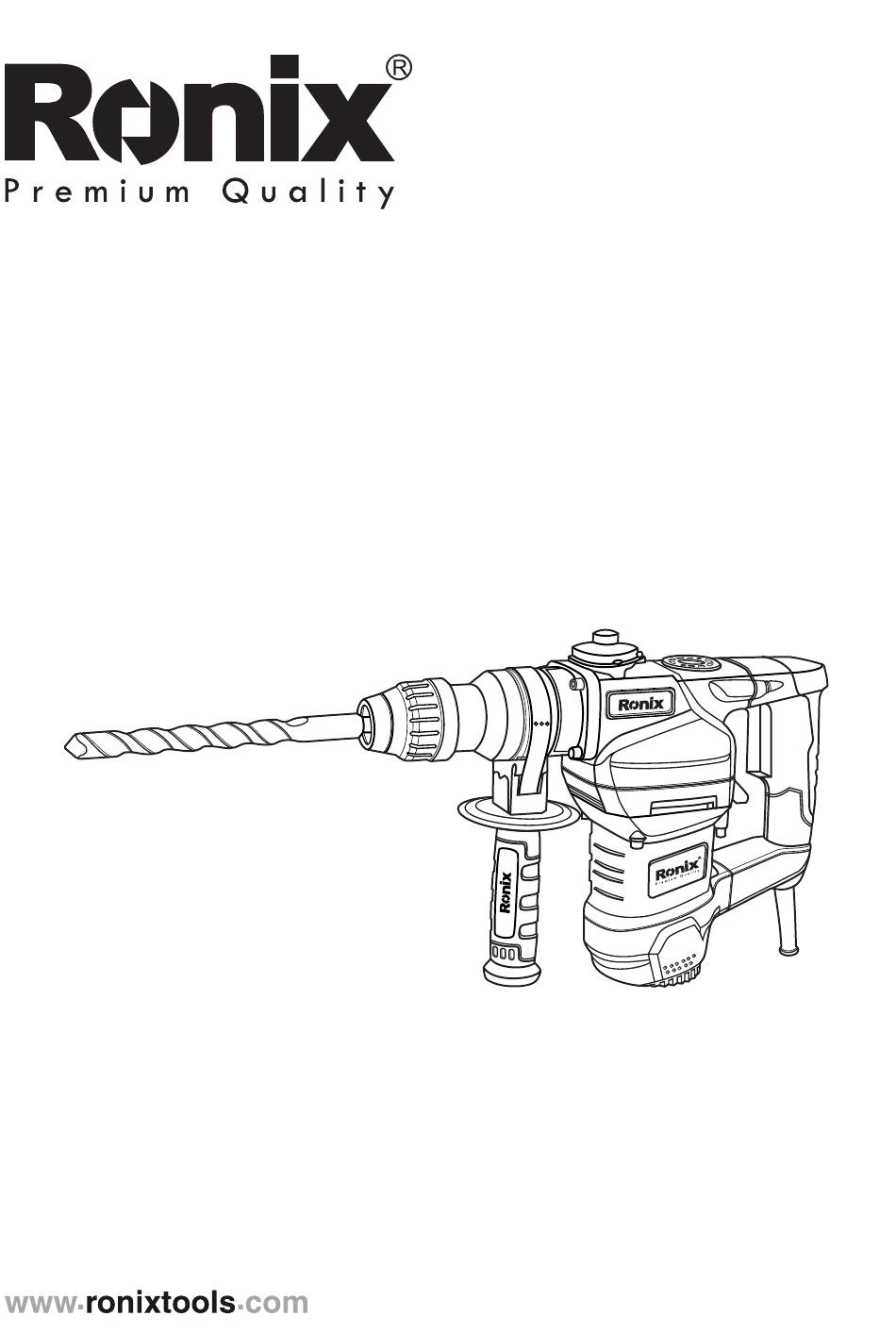

  • Page 1 ROTARY HAMMER 2702...

  • Page 3: Specifications

    SPECIFICATIONS Frequency 230 50Hz Hex Chuck Hex fitting Hex chuck 28mm Voltage 230V 50Hz Reversible Input power 1100 w(approx.) Impact hammer action 850r/min(approx.) Weight 4.6kgs(approx.) WARNING! The electric hammer chisel power tool noise output may exceed 85dB(A) at the workplace. In this instance, wear ear protection. Wear safety-hearing protection Wear Dust mask Wear safety goggles...

  • Page 4: Power Tool Safety

    KNOW YOUR ELECTRIC CHISEL POWER TOOL SAFETY GENERAL SAFETY RULES WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

  • Page 5: Electrical Safety

    ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
  • Page 6 Avoid accidental starting. Ensure the switch is in the OFF position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch ON invites accidents. Remove any adjusting key or wrench before turning the power tool on.
  • Page 7 to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use.

  • Page 8: Specific Safety Rules

    SPECIFIC SAFETY RULES WARNING! For your safety, do not plug in your Power tool until you have read and understood this Owner’s Manual. - WEAR EYE PROTECTION. Use face or dust mask along with safety goggles. Use hearing protection, particularly during extended periods of operation, wear safety shoes, wear hard - “Wear ear protectors with impact chisels.

  • Page 9: Drill Safety

    DRILL SAFETY - When using electric hammer chisel only use bits that are configured with the correct slots for this chuck. - BEFORE STARTING the operation, jog the chisel switch to make sure the chisel bit does not wobble or vibrate. - DO NOT USE fly cutters or multiple-part hole cutters, as they can come apart or become unbalanced in use.
  • Page 10 pascals Hours minutes seconds No load speed ./min or minˉ¹ Revolutions or reciprocations per minute direct current alternating current ² two-phase alternating current two-phase alternating current with neutral three-phase alternating current three-phase alternating current with neutral Rated current of the appropriate fuse-link in amperes Time-lag miniature fuselink where X is the symbol for the time/current characteristic, as given in EN 60127 protective earthing at earthing terminal, Class I tools...

  • Page 11: Available Accessories

    ACCESSORIES & CARTON CONTENTS AVAILABLE ACCESSORIES WARNING! Use only accessories recommended for this electric hammer chisel. Follow instructions that accompany accessories. Use of improper accessories may cause injury to the operator or damage to the cordless drill. Do not use any accessory unless you have completely read the instructions or Owner’s Manual for that accessory.

  • Page 12: Assembly And Operation

    CARTON CONTENTS – CONT’D ROTARY HAMMER Description Rotary hammer Chisels Drill bits Oil key Carry case ASSEMBLY & OPERATION WARNING! Always make sure the power tool is isolated from the power supply before fitting any attachment Handle. See Always make sure the fixed handle is secure before any job takes place as a loose handle could invite injuries.
  • Page 13 Trigger switch WARNING! The electric hammer chisel continues for a few second after the trigger has been release, be careful when putting it down. Fitting a chisel bit into the Hex housing. Put the bit into the hex housing and clamp the bit by turning the stop lever half a turn anti clockwise.
  • Page 14 This chisel does not have torque facility. It is not recommended to use any other bit other than masonry or chisels do not use metal cutting drills, this could cause serious injury. NOTE: chiseling for an extended period of time may cause the chisel motor to overheat.
  • Page 15 10) Always wear suitable dust mask. 11) Always wear protective footwear. 12) Always wear hardhat. INFORMATION ON HOW TO USE THE ELECTRIC HAMMER CHISEL Prior to operation 1) Power source Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.
  • Page 16 HOW TO USE THE ELECTRIC HAMMER CHISEL Place the bit you are going to use to do the job in hand as in page 11. 1) Pull the trigger switch after applying the chisel bit tip to the chiseling position. 2) It may be necessary to punch the bit against the crushing position forcibly in order to begin the striking stroke.

  • Page 17: Maintenance

    Due to low temperature or has been standing idle for long pe- riod. Run the chisel for approx 5 minutes to bring the oil tem- perature up. MAINTENANCE OIL FEEDING CAUTION: Prior to oil feeding, always disconnect the plug from the power supply receptacle.

  • Page 18: Maintenance And Inspection

    MAINTENANCE AND INSPECTION 1) Inspecting the tool When using dull tool bits this can cause motor malfunction and degraded efficiency. Always replace dull bits with new ones without delay when abrasion is noted. 2) Inspecting the mounting screws Regularly inspect all mounting screws and ensure that they are properly tightened.

  • Page 19: Replacement Steps

    Always keep carbon brushes clean and ensure that they slide freely within the brush holders. REPLACEMENT STEPS The carbon brush can be removed by removing the cap cover (9), cap rubber and brush cap in that order at the interior To replace carbon brush reverse order of removal.
  • Page 20 WARNING! Be prepared for binding and bit breakthrough. When these situa- tions occur, the chisel bit has the tendency to grab the workpiece. This action will kick the chisel opposite to the direction of chisel bit rotation and could cause loss of control when breaking through material as you complete chiseling the hole.

  • Page 21: Parts Diagram

    PARTS DIAGRAM USER MANUAL...

  • Page 22: Parts List

    PARTS LIST When servicing, use only identical replacement parts. Use of any other parts may create HAZARD or cause damage to your power tool. Any attempt to repair or replace electrical parts on this power tool may create a hazard unless repair is performed by a qualified technician.
