Ronix 2711 Manual

Rotary hammer 32mm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ROTARY HAMMER 32MM
2711

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2711 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronix 2711

Summary of Contents for Ronix 2711

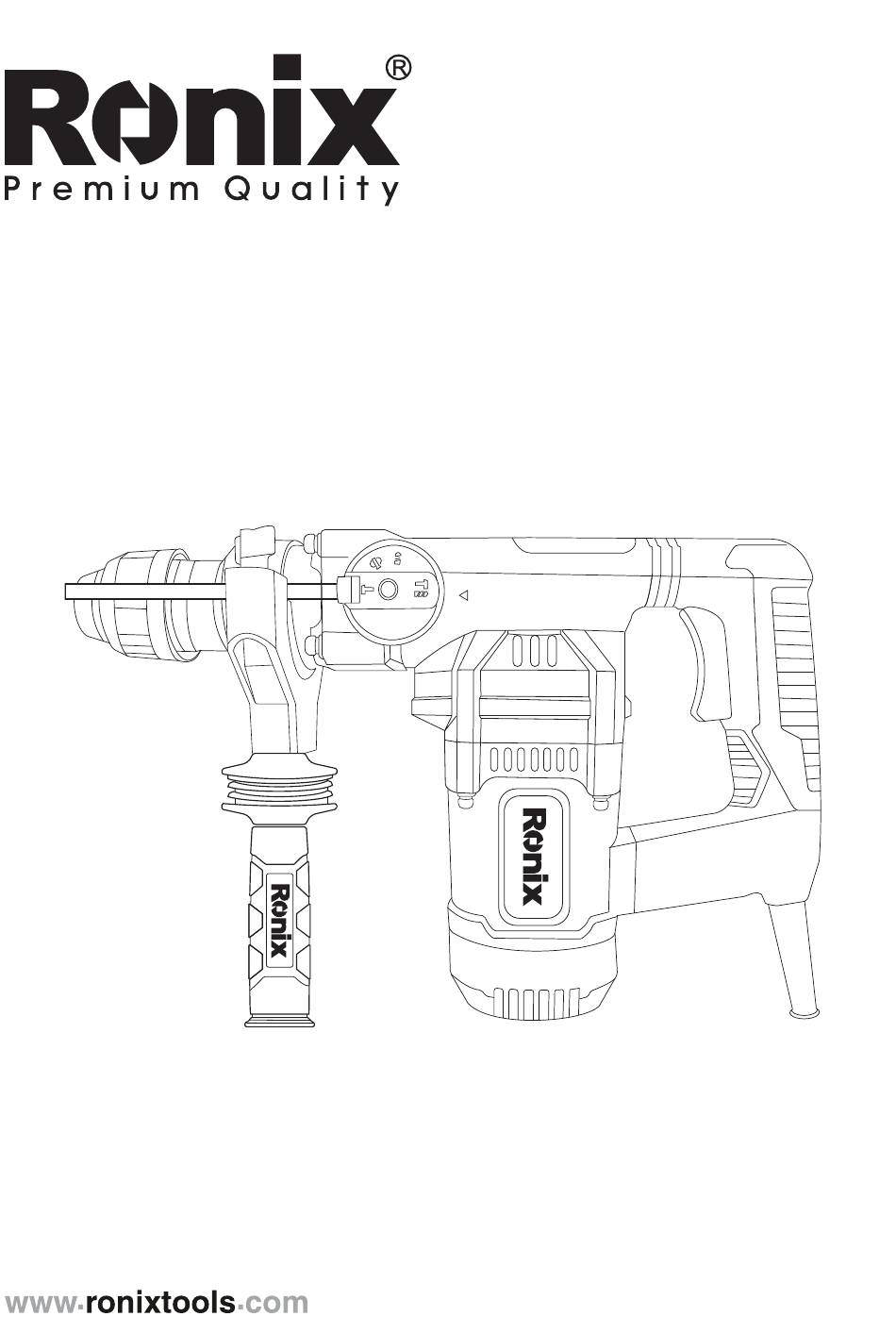

  • Page 1 ROTARY HAMMER 32MM 2711...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS Model 2711 Power 1200W 220-240V Voltage Frequency 50-60Hz No-load Speed 1050RPM Impact Rate 4200BPM Impact Energy Chuck Type SDS Plus Concrete: 32mm Max. Drilling Diameter Steel: 13mm Wood: 40mm Weight SDS PLUS 8×150mm Drill bit SDS PLUS 10×150mm Drill bit SDS PLUS 12×150mm Drill bit...

  • Page 3: Parts List

    PARTS LIST SDS-Plus drill chuck Dust Locking Operational mode Locking protection cap button sleeve selection switch Tool holder (SDS-Plus) On/Off switch Auxiliary handle INTENDED USE The machine is intended for hammer drilling in concrete, brick and stone. It is likewise suitable for drilling without impact in wood, metal, ceramic and plastic.

  • Page 4: Electrical Safety

    ELECTRICAL SAFETY - Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. - Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
  • Page 5 - Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. - Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
  • Page 6 work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation. SERVICE your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

  • Page 7: Before Use

    - Connect the mains plug only when the tool is switched off. After using, pull the mains plug. - Always direct the cable to the rear away from the machine. - Do not carry the machine by the cable. - When working with the machine, always hold it firmly with both hands and provide for a secure stance.

  • Page 8: Operation

    INSERTING TOOL - Clean lightly the tool before inserting. - Pull the Locking sleeve backward - Insert the tool into the tool holder and rotate it to engage. - Release the Locking sleeve and make sure the tool is locked out by pulling it out.

  • Page 9: Depth Stop

    WORKING INSTRUCTIONS AUXILIARY HANDLE You will be able to obtain a safe position when working by rotating the handle attachment. Loosen and turn the handle attachment in an anticlockwise direction. Then tighten the handle attachment. DEPTH STOP Loosen auxiliary handle. Adjust the drilling depth on the depth stop. Retighten the winged screw.
  • Page 10 2) Drilling 3) Hammering 4) Chisel position adjustment SHARPENING THE CHISELING TOOLS With sharpened insertion tools, one achieves good working performance and long service life. Therefore, sharpen the chisel regularly. Sharpen the tool on a grinding wheel (e.g. alumina oxide) with constant water supply.

  • Page 11: Maintenance And Cleaning

    NOTE: Do not attempt to manipulate at any time during the warranty period and, in the event of any inconvenience, ask for help from authorized RONIX AFTER SALES SERVICE representatives. - Before any work on the machine itself, pull the mains plug.
