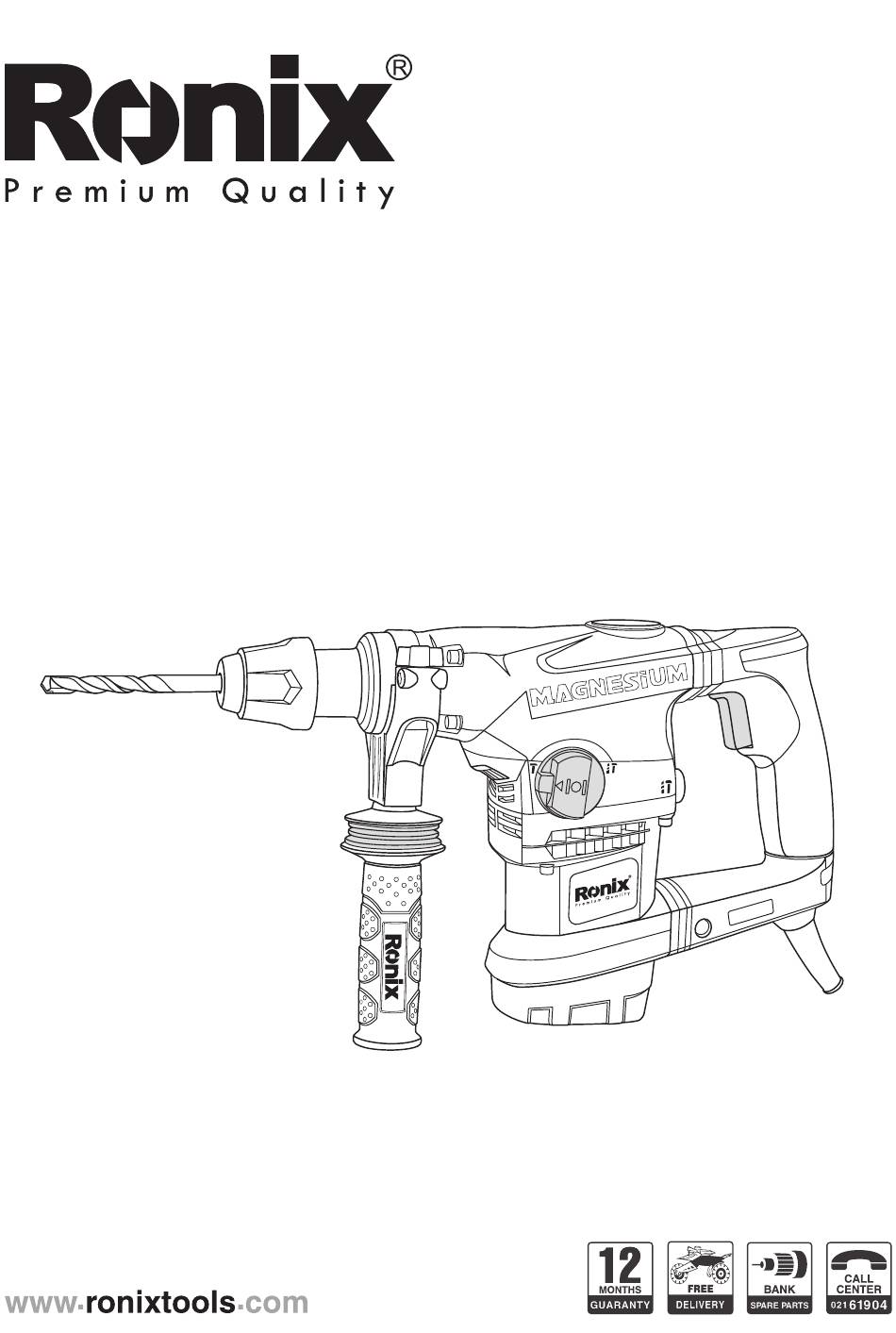

- Page 1 ROTARY HAMMER 2732...
-
Page 2: Specifications
SPECIFICATIONS Model 2732 Power 1250W Voltage 220V Frequency 50Hz Chuck Type SDS Plus Chuck Size 32mm Impact Energy 4.5J Max Capacity in Wood 40mm Max Capacity in Steel 13mm Max Capacity in Concrete 32mm No-load RPM 0-800 RPM Max Imapct Rate... -
Page 3: Power Tool Safety
Wear dust mask Wear safety goggles Wear safety shoes Wear hard hat Save these instructions for reference POWER TOOL SAFETY GENERAL SAFETY RULES WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool”... -
Page 4: Electrical Safety
ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. - Page 5 clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.
- Page 6 maintenance performed by unqualified personnel could result in risk of injury. When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.
-
Page 7: Drill Safety
DRILL SAFETY - When using electric hammer chisel only use bits that are configured with the correct slots for this chuck. - BEFORE STARTING the operation, jog the chisel switch to make sure the chisel bit does not wobble or vibrate. - DO NOT USE fly cutters or multiple-part hole cutters, as they can come apart or become unbalanced in use. -
Page 8: Available Accessories
seconds No load speed ./min or minˉ¹ Revolutions or reciprocations per minute direct current alternating current two-phase alternating current ² two-phase alternating current with neutral three-phase alternating current three-phase alternating current with neutral Rated current of the appropriate fuse-link in amperes Time-lag miniature fuselink where X is the symbol for the time/current characteristic, as given in EN 60127 protective earthing at earthing terminal, Class I tools... -
Page 9: Carton Contents
Do not use any accessory unless you have completely read the instructions or Owner’s Manual for that accessory. - Various chisels CARTON CONTENTS WARNING! If any part is missing or damaged, do not plug the chisel into the power source until the missing or damaged part is replaced. Carefully unpack the tools see “Components chart”... - Page 10 Switching the chisel on/off The chisel has an On/Off switch built in to the handle. Holding the chisel with both hands simply squeeze the trigger and the motor will start. To switch off release the trigger. Trigger switch WARNING! The electric hammer chisel continues for a few second after the trigger has been release, be careful when putting it down.
- Page 11 Do not use the chisel until you are satisfied the bit is secured. This electric hammer chisel does not have reverse direction, so always take care not to force the chisel in case the chisel bit gets stuck. Always make sure you keep the chisel going in and out to remove debris. This chisel does not have torque facility.
- Page 12 7) The bit can become very hot during operation exercise extreme caution as this could cause injury. 8) Always wear protective safety glasses. 9) Always wear ear defenders or earplugs. 10) Always wear suitable dust mask. 11) Always wear protective footwear. 12) Always wear hardhat.
-
Page 13: Maintenance
2) It may be necessary to punch the bit against the crushing position forcibly in order to begin the striking stroke. This is not due to malfunction of the tool, it means that the safe guard mechanism against no-load striking is working. 3) By utilizing the weight of the machine and by firmly holding the hammer chisel with both hands, one can effectively control the subsequent recoil motion. -
Page 14: Maintenance And Inspection
assuming that the chisel is used continuously 3-4 hours daily. Feed oil into the oil tank as described below before using the hammer chisel. 1) When the chisel is held upright look through the oil gauge window to see if oil is visible, if no oil shows oil must be installed before operating. If chisel is used without oil this could seriously damaged the chisel and forfeit any warranty given. -
Page 15: Replacement Steps
4) Inspecting the carbon brushes The motor employs carbon brushes that are consumable parts; since an excessively worn carbon brush could result in motor trouble, replace the carbon brush. Wear limiter (6) No of carbon brush (7). 4 mm 17 mm Always keep carbon brushes clean and ensure that they slide freely within the brush holders. - Page 16 Every time you use the drill you should verify the following: 1) Hex bit is secure. 2) Oil level is full. 3) Select to the function you want to do before you engage in the proposed operation 4) All safety apparel. Safety Glasses Safety Shoes. Safety Gloves. Ear Defenders and Safety Hat are being worn.
