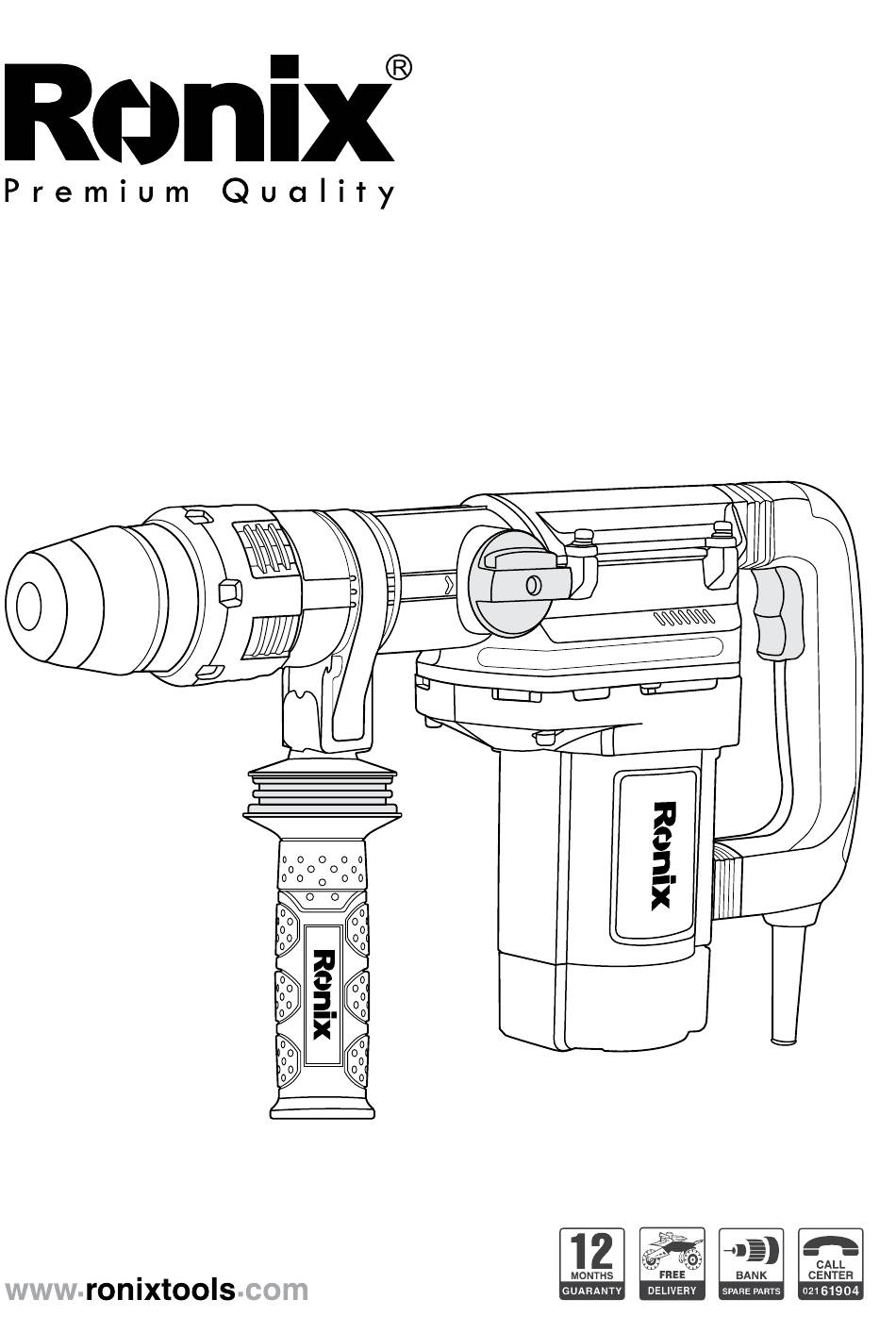

- Page 1 ROTARY HAMMER 40MM 2741...
-
Page 2: Product Elements
SPECIFIATIONS Model 2741 power 1250W Voltage 2200V Frequency 50Hz No load speed 410 RPM Impact rate 3100 BPM Impact energy Max Drill Capacity 40mm Net Weight 7.3Kg SDS MAX 16x320mm Drill bit SDS MAX 18x320mm Drill bit SDS MAX 22x320mm Drill bit... -
Page 3: Intended Use
INTENDED USE The machine is intended for hammer drilling in concrete, brick and stone. It is likewise suitable for drilling without impact in wood, metal, ceramic and plastic. GENERAL SAFETY RULES WORK AREA - Keep work area clean and well lit. Cluttered and dark areas invite accidents. - Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. - Page 4 PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 5 - Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. - Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.
-
Page 6: Before Use
- If the cable is damaged or cut through while working, do not touch the cable but immediately pull the mains plug. - Never use the machine with a damaged cable. - Wear safety glasses, protective gloves and sturdy shoes. - Wear ear protection to prevent damage to your hearing. -
Page 7: Operation
SDS MAX TOOLS The SDS MAX tool is designed to be freely movable. This causes eccentricity when the machine is offload. However, the drill automatically centers itself during operation. This does not affect drilling precision. INSERTING TOOL - Clean lightly the tool before inserting. - Insert the dust-free tool into the tool holder (1) with twisting until it latches. - Page 8 OPERATING MODES Warning!When switching operation modes, please trigger ON/OFF switch slightly. 1) Hammer Drilling 2) Chisel position adjustment 3) Chiseling SHARPENING THE CHISELING TOOLS With sharpened insertion tools, one achieves good working performance and long service life. Therefore, sharpen the chisel regularly. Sharpen the tool on a grinding wheel (e.g.
-
Page 9: Maintenance And Cleaning
Do not attempt to manipulate at any time during the warranty period and, in the event of any inconvenience, ask for help from authorized RONIX AFTER SALES SERVICE representatives. - Before any work on the machine itself, pull the mains plug.
