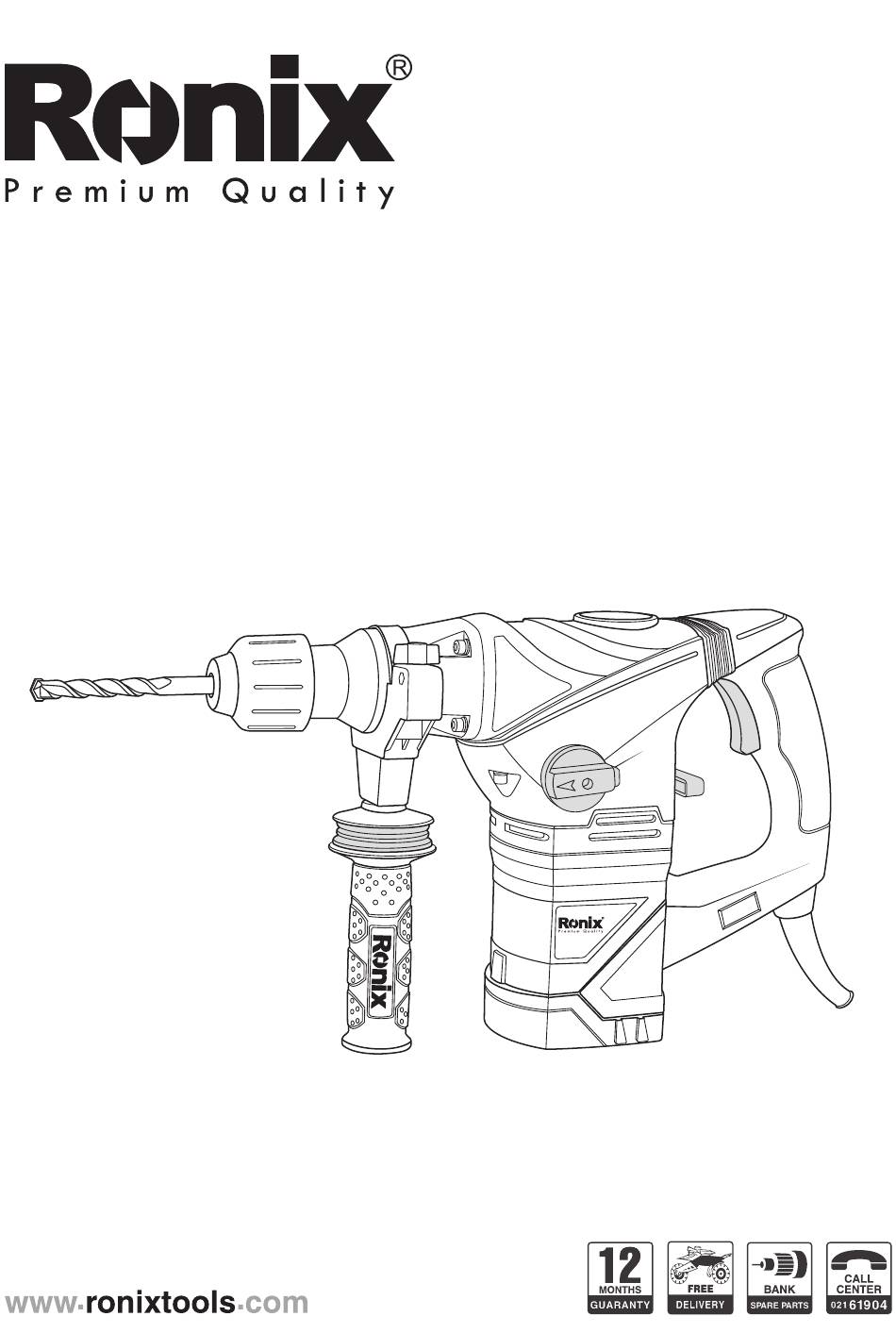

- Page 1 ROTARY HAMMER 2736...
-
Page 2: Specifications
SPECIFICATIONS Model 2736 Power 1500W Voltage 220V Frequency 50Hz Chuck Type SDS Plus Chuck Size 36mm Impact Energy Max Capacity in Concrete 36mm No-load RPM 750 RPM Max Imapct Rate 3000 BPM Weight 5.5kg WARNING! The electric hammer chisel power tool noise output may exceed 85dB(A) at the workplace. -
Page 3: Power Tool Safety
KNOW YOUR ELECTRIC CHISEL Oil Gauge Trigger SDS chunch Motor Housing Carbon Brush POWER TOOL SAFETY GENERAL SAFETY RULES WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. -
Page 4: Electrical Safety
ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. - Page 5 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 6: Specific Safety Rules
SERVICE Tool service must be performed only by qualified personnel. Service or maintenance performed by unqualified personnel could result in risk of injury. When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury. -
Page 7: Drill Safety
DRILL SAFETY - When using electric hammer chisel only use bits that are configured with the correct slots for this chuck. - BEFORE STARTING the operation, jog the chisel switch to make sure the chisel bit does not wobble or vibrate. - DO NOT USE fly cutters or multiple-part hole cutters, as they can come apart or become unbalanced in use. -
Page 8: Available Accessories
seconds No load speed ./min or minˉ¹ Revolutions or reciprocations per minute direct current alternating current two-phase alternating current ² two-phase alternating current with neutral three-phase alternating current three-phase alternating current with neutral Rated current of the appropriate fuse-link in amperes Time-lag miniature fuselink where X is the symbol for the time/current characteristic, as given in EN 60127 protective earthing at earthing terminal, Class I tools... -
Page 9: Carton Contents
Do not use any accessory unless you have completely read the instructions or Owner’s Manual for that accessory. - Various chisels CARTON CONTENTS WARNING! If any part is missing or damaged, do not plug the chisel into the power source until the missing or damaged part is replaced. Carefully unpack the tools see “Components chart”... - Page 10 secure before any job takes place as a loose handle could invite injuries. Switching the chisel on/off The chisel has an On/Off switch built in to the handle. Holding the chisel with both hands simply squeeze the trigger and the motor will start. To switch off release the trigger.
- Page 11 Put the bit into the hex housing and clamp the bit by turning the stop lever half a turn anti clockwise. This will lock the bit in place. Do not use the chisel until you are satisfied the bit is secured. This electric hammer chisel does not have reverse direction, so always take care not to force the chisel in case the chisel bit gets stuck.
- Page 12 5) Before starting any job like breaking, chipping a wall, floor or ceiling, thoroughly confirm that no items such as an electric cable, water pipe or conduit are buried inside as this could cause injury or flooding. 6) Properly set the bit holder. 7) The bit can become very hot during operation exercise extreme caution as this could cause injury.
- Page 13 .HOW TO USE THE ELECTRIC HAMMER CHISEL Place the bit you are going to use to do the job in hand as in page 11. 1) Pull the trigger switch after applying the chisel bit tip to the chiseling position. 2) It may be necessary to punch the bit against the crushing position forcibly in order to begin the striking stroke.
-
Page 14: Maintenance And Inspection
MAINTENANCE OIL FEEDING CAUTION: Prior to oil feeding, always disconnect the plug from the power supply receptacle. Since an oil chamber is built in this electric hammer chisel, it can be used for approximately 20 days without supplying lubrication oil, assuming that the chisel is used continuously 3-4 hours daily. -
Page 15: Replacement Steps
Always replace dull bits with new ones without delay when abrasion is noted. 2) Inspecting the mounting screws Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious injury. 3) Maintenance of the motor The motor unit winding is the very “heart”... -
Page 16: Installing Bits
INSTALLING BITS Never hold the chuck body with one hand and use the chisel power to the chisel body to loosen or tighten bits. You may severely injure your hand. WARNING! Have you read “POWER TOOL SAFETY”, “DRILL SAFETY” and “SYMBOLS”... - Page 17 may be damaged by their use. Use clean cloth to remove dirt, dust, oil, grease etc. Do not at any time allow brake fluids, gasoline, petroleum-based products, penetrating oils, etc. to come in contact with plastic parts. They contain chemicals that can damage, weaken or destroy plastic. DO NOT abuse power tools.
