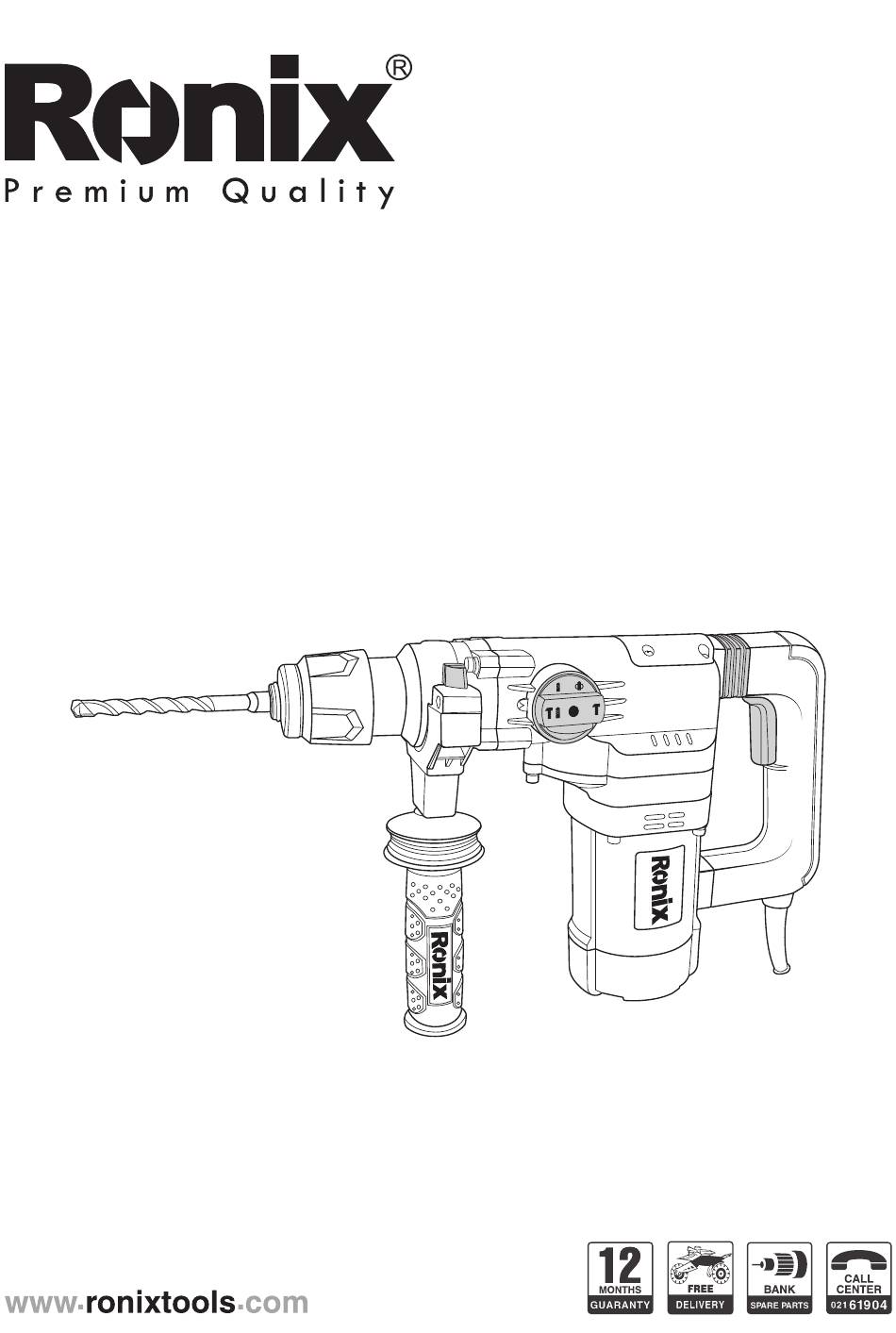

- Page 1 ROTARY HAMMER 26mm 2729...
-
Page 2: Specifications
SPECIFICATIONS Model 2729 Power 1200W Voltage 220V Frequency 50Hz No load speed 1000rpm Impact rate 4300bpm Impact energy 4.2J Maximum Bit Holder Capacity 28mm Concrete 28mm Steel 13mm Wood 40mm Bit Holder System SDS-Plus Net. Weight 4.6Kg Grease Tube, Side Handle,... -
Page 3: General Safety Rules
The machine is intended for hammer drilling in concrete, brick and stone. It is likewise suitable for drilling without impact in wood, metal, ceramic and plastic. GENERAL SAFETY RULES WORK AREA - Keep work area clean and well lit. Cluttered and dark areas invite accidents. -
Page 4: Personal Safety
a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. - Page 5 and must be repaired. - Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. - Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 6 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR HAMMER DRILL - Wear protective goggles. - When working, sparks or flying splinters, shavings, and dust can cause loss of vision NOTE: - Working safely with this machine possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed.
-
Page 7: Before Use
BEFORE USE - Be careful of hidden electrical lines or gas and water pipes. Check the working area, e.g. with a metal detector. - Always use the correct supply voltage! - The voltage of the power source must agree with the value given on the nameplate of the machine. -
Page 8: Working Instructions
OPERATION SWITCHING ON Press the on- off switch (9) SWITCHING OFF Release the on- off switch (9) WORKING INSTRUCTIONS OVERLOAD CLUTCH - If the drill bit becomes jammed or caught, the drive to the drill spindle is interrupted. - Because of the forces that occur as a result, always hold the machine with both hands and take a secure stance. - Page 9 1) Hammer Drilling 2) Drilling 3) Chisel position adjustment 4) Chiseling SHARPENING THE CHISELING TOOLS With sharpened insertion tools, one achieves good working performance and long service life. Therefore, sharpen the chisel regularly. Sharpen the tool on a grinding wheel (e.g. alumina oxide) with constant water supply.
-
Page 10: Maintenance And Cleaning
- These instructions are printed without chlorine. - The plastic components are labeled for categorized recycling. NOTE: To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by RONIX SERVICE Authorized centers, always using RONIX replacement parts. USER MANUAL...
