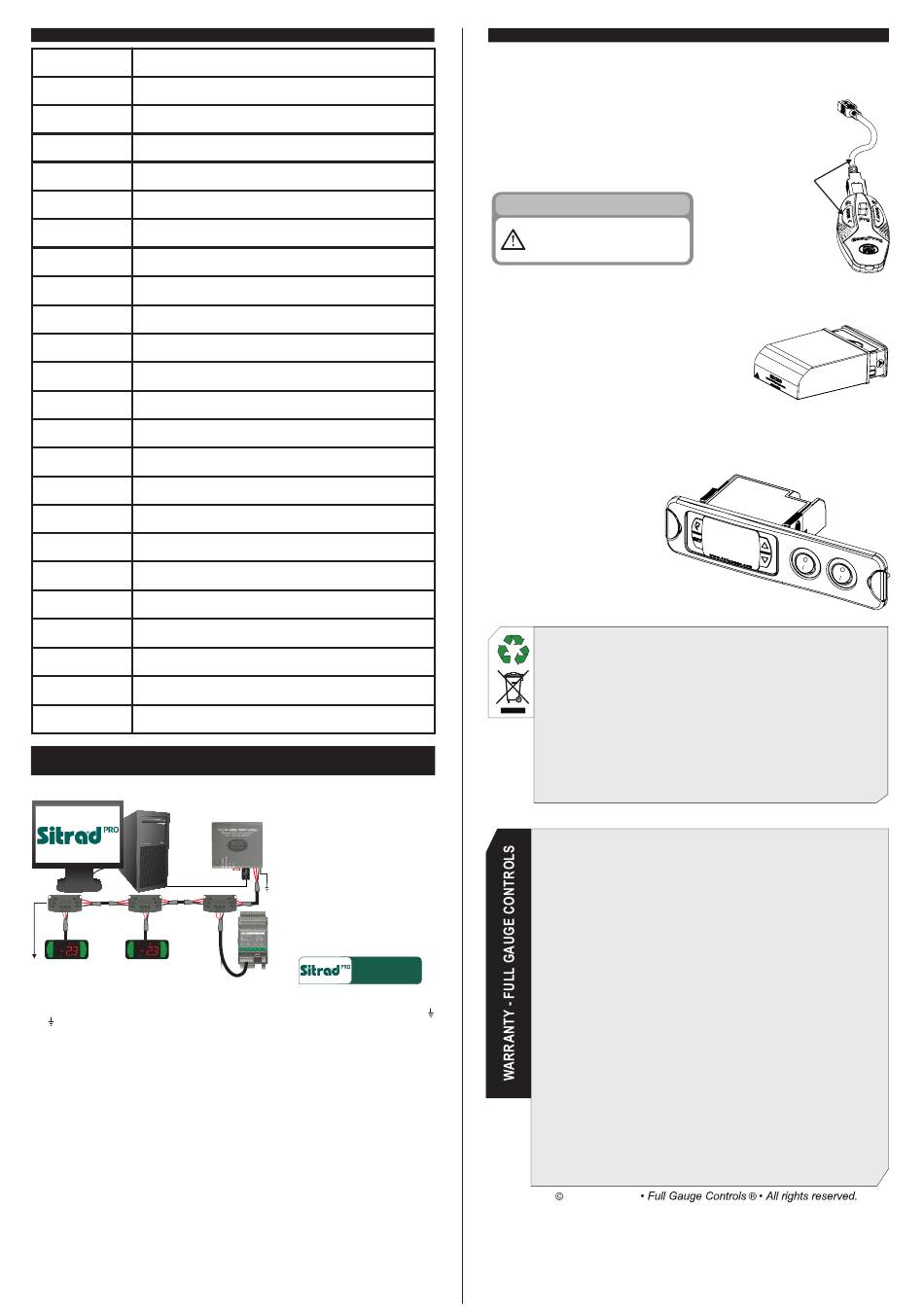

7. SIGNALS
[Err1]
Ambient sensor disconnected or out of range.
[Err2]
Evaporator sensor disconnected or out of range.
[Err3]
Sensor 3 disconnected or out of range.
[ALrE]
External alarm (digital input).
[eCO,]
Operating with economic setpoint.
[OpEn]
Open door indication.
[AOPn]
Open door alarm indication.
[Athi]
High ambient temperature alarm (sensor1).
[Atlo]
Low ambient temperature alarm (sensor1).
[AtC1]
High temperature in condenser alarm (level 1).
[AtC2]
High temperature in condenser alarm (level 2).
[AMaI]
Indicates maintenance the compressor.
Compressor reached the maximum time on without reaching
[ALrC]
the SP.
[OFF,]
Control routines off.
It indicates that the temperature for end of defrost has not
[,,,,. ]
been reached.
[adfl]
Datalogger memory full.
[Hipr]
High pressure event.
[lopr]
Low pressure event.
[aplo]
Low pressure alarm (manual reset required).
[apHi]
High pressure alarm (manual reset required).
[emem]
Please contact Full Gauge Controls.
[eClO]
Invalid date and/or time (adjust the clock).
[eCAL]
Please contact Full Gauge Controls.
[pppp]
Reconfigure the values of the functions.
8. INTEGRATING CONTROLLERS, RS-485 SERIAL INTERFACE
AND COMPUTER
MT-530 super MT-530 super
CONNECTION BLOCK
It is used to connect more than one controller to the Interface. The wire connections must be made as follows: Terminal A of the controller connect
to terminal A of the connection block, which in turn, must be connected to terminal A of the Interface. Repeat the procedure for terminals B and ,
being the cable screen. dd
The TC-900e Log allows you to configure the RS-485 communication port for the MODBUS-RTU protocol. For more information about the
implemented commands and the registration table, contact Full Gauge Controls.
* INTERFACE SERIAL RS-485
Device used to establish the connection of Full Gauge
®
Controls instruments with Sitrad .
*
Full Gauge offers different interface options, including
technologies such as USB, Ethernet, Wifi, among
others.
For more information, consult Full Gauge Controls.
Sold separately.
MODBUS PROTOCOL
The controller allows you to configure the RS-485
communication port for the MODBUS-RTU protocol.
For more information about the implemented
commands and the registration table, contact Full
Gauge Controls.
Keep Sitrad
updated at site:
http://www.sitrad.com
9. OPTIONAL ITEMS - Sold Separately
EasyProg - version 2 or higher
It is an accessory that has as its main function to store the parameters of the controllers. At any time,
you can load new parameters of a controller and download them on a production line (of the same
controller), for example. It has three types of connections to load or unload the parameters:
- Serial RS-485: It connects via RS-485 network to the controller (only
for controllers that have RS-485).
- USB: it can be connected to the computer via the USB port,
using Sitrad's Recipe Editor.
- Serial TTL: The controller can be connected directly to
EasyProg by the TTL Serial connection.
IMPORTANT
TO PERFORM THE COMMUNICATION
WITH EASYPROG THIS EQUIPMENT MUST
NOT BE COMMUNICATING WITH SITRAD
SOFTWARE.
Ecase protective cover
It is recommended for the Evolution line, keeps water from entering the back part of the instrument. It
also protects the product when the installation site is washed.
Extended frame
It allows the installation of Evolution line controllers with sizes 76 x 34 x 77 mm in various situations,
since it does not require precision in the notch of the instrument fitting panel.
The frame integrates two switches of 10 Amperes that may be used to actuate interior light, air curtain,
fan, and others.

ENVIRONMENTAL INFORMATION

Packaging:
The materials used in the packaging of Full Gauge products are 100% recyclable. Try to
perform disposal through specialized recyclers.
Product:
The components used in Full Gauge controllers can be recycled and reused if
disassembled by specialized companies.
Disposal:
Do not incinerate or dispose the controllers that have reached the end of their service as
household garbage. Observe the laws in your area regarding disposal of electronic
waste. If in doubt, please contact Full Gauge Controls.
Products manufactured by Full Gauge Controls, as of May 2005, have a two (02) year
warranty, as of the date of the consigned sale, as stated on the invoice. They are guaranteed
against manufacturing defects that make them unsuitable or inadequate for their intended
use.
EXCEPTIONS TO WARRANTY
The Warranty does not cover expenses incurred for freight and/or insurance when sending
products with signs of defect or faulty functioning to an authorized provider of technical
support services. The following events are not covered either: natural wear and tear of parts;
external damage caused by falls or inadequate packaging of products.
Products will automatically lose its warranty in the following cases:
- The instructions for assembly and use found in the technical description and installation
procedures in Standard IEC60364 are not obeyed;
- The product is submitted to conditions beyond the limits specified in its technical
description;
- The product is violated or repaired by any person not a member of the technical team of
Full Gauge Controls;
- Damage has been caused by a fall, blow and/or impact, infiltration of water, overload
and/or atmospheric discharge.
To make use of the warranty, customers must send the properly packaged product to Full
Gauge Controls together with the invoice or receipt for the corresponding purchase. As much
information as possible in relation to the issue detected must be sent to facilitate analysis,
testing and execution of the service.
These procedures and any maintenance of the product may only be provided by Full
Gauge Controls Technical Support services in the company's headquarters at Rua Júlio de
Castilhos, 250 - CEP 92120-030 - Canoas - Rio Grande do Sul – Brasil
Copyright 2019
EASYPROG
LOSS OF WARRANTY
USE OF WARRANTY
Rev. 03
