6.3.12 Hourmeter
The hourmeter indicates the number of working hours of the compressor. The hourmeter can be viewed
through the quick access menu (;) in the option [Hour] and the working time of the compressor is
displayed in hours. The maximum working time of the compressor can be configured through the
function F66. When the number of working hours of the compressor reaches the value set in this
function, the display will show a warning ([aMaI]), indicating that the compressor must be serviced.
To turn the warning off or to reset the hourmeter counter, access the option [Hour] in the quick access
menu ;, press/ and then press < for 2 seconds while the compressor working time is being
displayed until the message [rStH]is displayed.
6.3.13 View current date and time
Quickly pressing the key /(short touch) makes it possible to view the current date and time set in the
controller. The current day ([,--d]), month ([,--m]), year ([,--y]), day of the week([day-]),
and hour and minute ([00: 0 0]) will be shown in sequence on the display. It is also possible to view the
date and time through the quick access menu in the option [ClO,].
NOTE:The controller leaves the factory with the clock disabled, to set the clock in operation
proceed as described in item 6.4.4
Example: [day1] is Sunday.
6.3.14 Manual datalogger activation
The manual activation of the internal record of temperature values and state of control outputs
(Datalogger) is performed through the quick access menu in the option
[dtL,] will be displayed followed by the message
[OFF,] when it is deactivated. It is also possible to activate the datalogger manually by pressing the
keys and for 10 seconds. < >
NOTE: For correct operation of the datalogger, it is necessary to set the clock. See item 6.4.4
6.3.15 Selection of temperature measurament units
To select the temperature measurament units the system will use to operate,
press<and>simultaneously while the temperature is being displayed, enter the option
[Code]using the access code [,231] and then press/.Then select the desired unit [,=C,] or
[,=F,]using the keys<or>, and press / to confirm.
NOTE: Whenever the units are changed, the configuration of the functions assume the factory
default, so they need to be configured again.
6.4 Advanced Operations
6.4.1 Access to the main menu
The main menu can be accessed through the quick access menu, option [Func] or by pressing <
and >simultaneously (short touch) while the temperature is being displayed.
The following options will be displayed:
[Code]- Entry to the access code
[Func]- Change the parameters
[ClO,]- Adjust or visualization of the date and time
[Log,]- Datalogger configuration
[Prog]- Defrost schedule configuration by hour programming
[LUMI]- Configuration of the economic setpoint activation sensor
NOTE: The menu [Prog] is enabled only if function F01 - Defrost by hour programming is
configured with 1.
6.4.2 Access code
To allow changing the parameters or adjusting the clock, enter the option [Code] pressing
touch) and enter the access code 123 (one hundred and twenty-three) using the keys
/
confirm with .
6.4.3 Changing the controller parameters
In the main menu select the option [Func] and then the desired function using the keys
/
Press (short touch) after selecting the function to view its value. Use
/
and press when ready to save the configured value and return to the function menu. To leave the
menu and return to the normal operating mode (temperature indication), press
[----]appears.
NOTE: If the function lock is active, the controller will show the message [LOC,] , in the display
< >
upon pressing or and will not allow adjusting the parameters.
6.4.4 Date and time adjustment
Select the option [ClO,]in the main menu. The controller will enter the date and time adjustment
mode if the access code [,123] was correctly entered. Use
/
when ready to save the configured value. If the date entered is invalid, the message [ECLO]
press
will be shown on the display.You can also set the date and time using the provided menu. In this case, it
is not necessary to enter the access code.
IMPORTANT: The controller has an auxiliary internal power supply to keep the clock running for at
least 72 hours in case of power failure. If the controller remains off for a long period of time, the message
[ECLO] will be displayed to indicate that the clock is not programmed. In this case, the date and time
must be adjusted and the controller must be kept on for 10 hours to fully recharge the auxiliary power
supply.

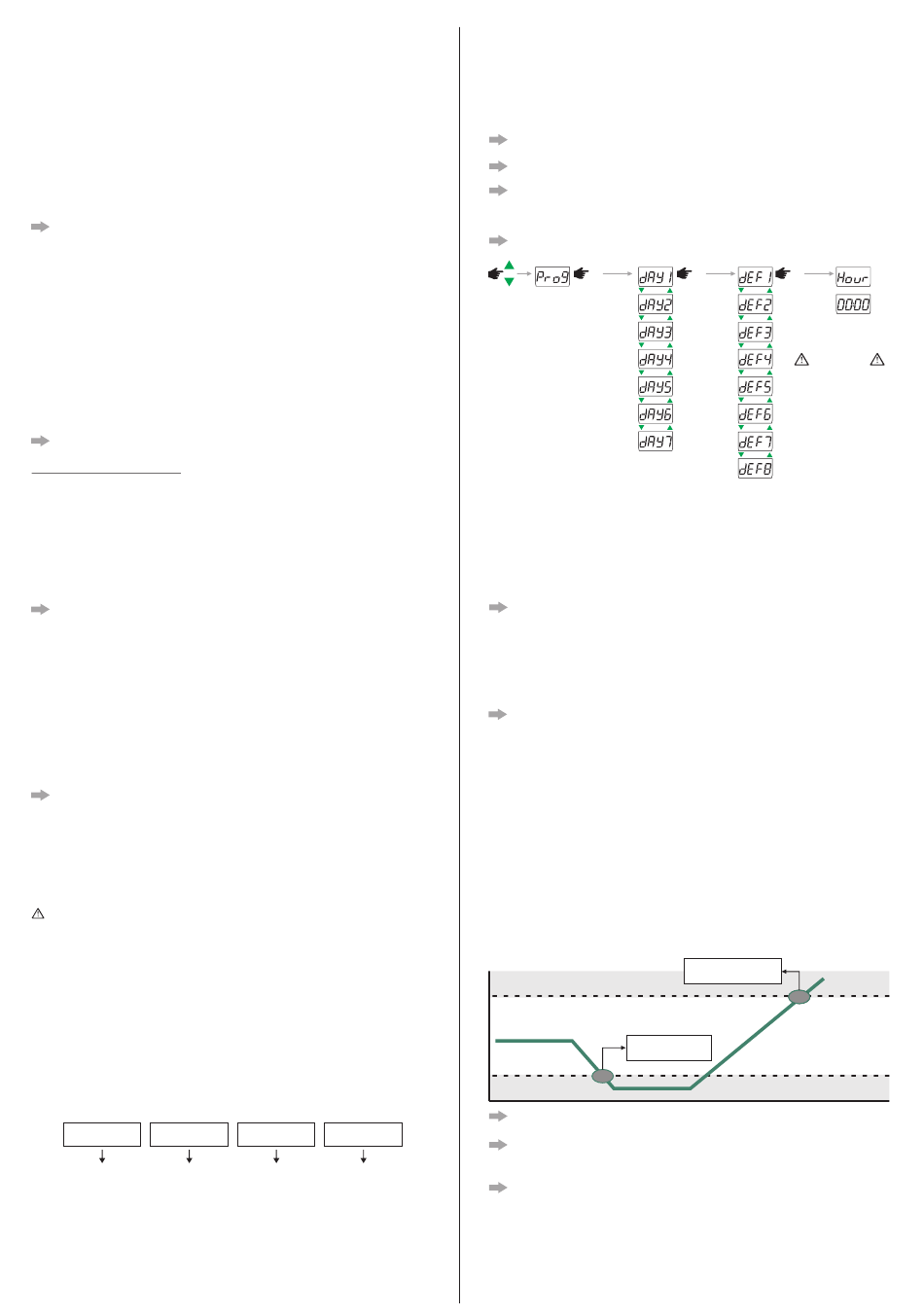

6.4.5 Defrost schedule
The function menu allows configuring the schedule of defrosts distributed among equal periods of time
according to the programmed number of defrosts per day. To do this, enable the defrost schedule by
configuring F01 with 2, and configure the number of defrosts per day and the preferred time using
functions F25 to F30.
In this case the defrost schedule allows creating a program for Monday to Friday, a program for
Saturday, and another program for Sunday.
Example: For the Monday to Friday program, if the preferred time is set to 1 PM (and the number of
defrost cycles is set to 4 and the interval is 6 hours), the defrost will be performed at 1 AM, 7 AM, 1 PM
and 7 PM of the same day.
MONDAY TO FRIDAY
01:00 07:00
DEFROST DEFROST
It is also possible to create a defrost schedule with different times (the defrosts do not need to be equally
spaced) for each day of the week with up to eight defrosts per day through the menu [Prog]. For this
menu to be available, function[,F01] must be configured with 1.
To configure the defrost schedule in menu [Prog]:
< >
a)Press and (short touch) simultaneously, the option[Code]will be displayed to request the
access code.
/
b)Press and enter the access code 123 using the keys
[Code]will appear again.
[dtl,] . The message
[On,,] when the datalogger is activated or
/
(short
< >
or and
< >
or
< >
or to change the value
/
(long touch) until
< >
or to change the value and
13:00 19:00
DEFROST DEFROST
< > /
or , confirming with . The option
c)Browse the menu using the keys<or>until the option [Prog] appears, and then press/.
d)Use the keys <or>to select the day of the week to create the defrost schedule and press/.
e)Again use the keys<or>to select which of the eight available defrosts will be configured and
press/.
f)The time configured for the chosen defrost will be displayed. Use the keys<or>to change the time
and press/again to return to de defrost programming menu.
g)To leave the defrost programming menu and return to the previous menu, press /until the message
[----]is displayed.
NOTE:To disable the programming of undesirable defrosts, displace the adjustment to the
maximum using the key<until the message [,OFF]is displayed.
NOTE2:The access code is not required to view the times programmed in the defrost schedule
(without changing them).
NOTE3:For the defrosts to be performed by the schedule (programmed times), at least one (1)
defrost must be programmed for each day of the week. Otherwise the defrosts will be performed
by the normal process (after the cooling time is over or by temperature, as configured in F45), and
function F01 will be automatically configured with "0".
NOTE4: To set the defrost timer, you need to set the clock. See item 6.4.4
/
or
e
TC-900 Log
Wednesday
6.4.6 Internal datalogger (internal memory)
The configuration functions of the datalogger are available in menu [Log,].
When the datalogger is enabled (F86), it is possible to store records in the controller's internal memory.
It can be configured to store records by time interval (F87), by temperature variation (F88), and/or by
the variation of the state of the digital output or inputs (F89). The activation of alarms also performs the
storage of records. The information contained in a record are: Temperature of sensors S1, S2 (if
enabled), and S3 (if enabled), state of the control outputs, door state (if the digital input is configured as
door contact), active alarms and their respective timestamp.
NOTE: No records are stored in the datalogger if the clock is not programmed.
6.4.7 Configuration of the economic setpoint activation sensor
The option [LUMI] in the main menu allows configuring the sensor to activate the economic setpoint
through the following functions:
[On,,]Light intensity for which the room is considered bright (deactivate the economic setpoint).
[OFF,]Light intensity for which the room is considered dark (activate the economic setpoint).
[TIME]Time for which the controller must be exposed to the luminosity levels configured to activate
and deactivate the economic setpoint.
NOTE: The sensor is disabled if the time configured in function [TIME]is equal to zero.
.
To configure it correctly perform the following steps:
a)In the main menu use the keys <or> until reaching option [LUMI] , then press/.
b) Keep the room where the controller will work with the light intensity for which the room is considered
to be bright, for which the economic setpoint must not be activated.
c)Browse to the option [On,,], press /and the message[++++] will keep flashing.
Make sure that the room is exposed to the desired light intensity to deactivate the economic setpoint
and press/again.
d)Now change the luminosity of the room where the controller will work to a level regarded as dark, for
which the economic setpoint must be activated.
e)Browse to the option[OFF,], press/and the message [____] will keep flashing.
Make sure that the room is exposed to the desired light intensity to activate the economic setpoint and
press/again.
f)Now that the light intensities are configured the luminosity sensor feature can be enabled through
option [TIME].
g)Browse to option [TIME], press/ then, using the keys< >change the value of the time in
minutes for which the luminosity must be above the [On,,] threshold for the room to be considered
bright, which will be the same time that the luminosity must be below the [OFF,]threshold for the
room to be considered dark.
LUMINOSITY
ECO
NOTE:Even with the luminosity sensor enabled, the other forms of activating/deactivating the
economic setpoint still work, as described in item 6.3.4.
NOTE: If the light intensity configured to deactivate the economic setpoint is lower than the light
intensity configured to activate the economic setpoint, or vice-versa, the luminosity sensor will be
deactivated.
NOTE: The conditions to activate/deactivate the economic setpoint are listed on the table in item
6.3.4.
/
Sunday
e e
TC-900 Log TC-900 Log
Monday
TC-900 e Log TC-900 e Log
Tuesday
TC-900 e Log e
TC-900 Log
TC-900 e Log TC-900 e Log
Thursday
e e
TC-900 Log TC-900 Log
Friday
e e
TC-900 Log TC-900 Log
Saturday
e
TC-900 Log TC-900 e Log
e
TC-900 Log
, or
DEACTIVATE ECONOMIC
SETPOINT
ACTIVATE ECONOMIC
SETPOINT
/
e
TC-900 Log
e
TC-900 Log
IMPORTANT
If the serial programming
accessory (EasyProg) is
being used, the defrost
schedule configured in the
menu [Prog]will not be
replicated to the other
c o n t r o l l e r s , o n l y t h e
parameters of the controller
( f u n c t i o n t a b l e ) a r e
replicated.
ON
ECO
OFF
TIME
