F016-P
5

CONFIGURATION

5.1

INTRODUCTION

This chapter describes how technicians can use configuration settings to configure the F-Series for
optimal functionality. Configuration of the F016-P can be done in SETUP mode, using the front keys.
5.2

CONFIGURING USING SETUP MODE

For an overview of Operating modes, see
Changing settings may influence current operation
In SETUP mode the unit remains fully operational. Make sure the product is not being used for any
application when changing settings.
5.2.1

ENTERING SETUP MODE

1. Press the PROG-key for 7 seconds. During this, the symbols ▲▼ are displayed. You may be
prompted to enter a password.
2. The
SETUP
5.2.2

NAVIGATING THE SETUP MENU

The SETUP menu contains several menu groups, which each contain various menu items. Each
menu item has a unique number which is displayed at the bottom of the display. Additionally, each
menu item is expressed with a keyword.
The menu number is a combination of two figures separated by a dot:
● the first figure indicates the selected menu group (e.g. 1. TOTAL).
● the second figure indicates the menu item (e.g. 1.1 UNIT).

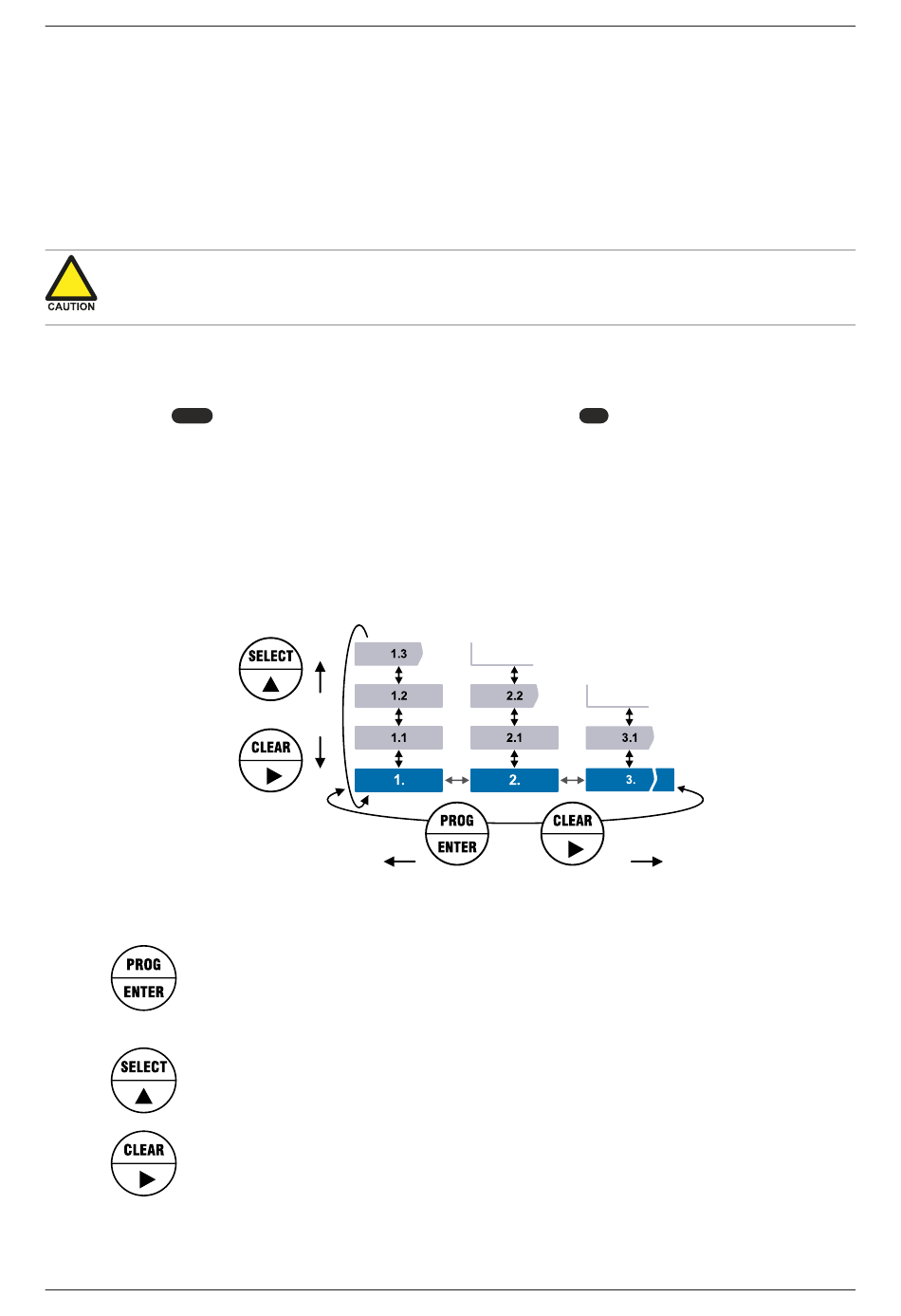

The following image shows the layout of the menu structure:
Navigate the SETUP menu with the following functions:
PROG-key
When a menu item is selected (e.g. 1.1), this key is used to start the programming
sequence.
When a menu group is selected (and no function), this key is used to scroll back a group
(e.g. 3. à 2. à 1. à 3. à 2. ...)
SELECT-key
This key is used to select the next menu item in the list (e.g. 1. à 1.1 à 1.2 à 1.3 à
1. ...). When the top of the list is reached, it will wrap around and return to the menu group
selection.
CLEAR-key
This key is used to select the previous menu item in the list (e.g. 1.3 à 1.2 à 1.1 à 1. à
2. ...). When the bottom of the list is reached, it returns to the menu group selection.
When a menu group is selected (and no item), this key is used to scroll to the next group
(e.g. 1. à 2. à 3. à 1. à 2. ...)
FW_F016-P_M_v0501-03_EN
indicator is now activated on the display and the
Fig. 6:
SETUP menu layout and navigation
Section 4.1.1: Operating modes [»8]
RUN
User Manual
.
indicator is deactivated.
Page 11
