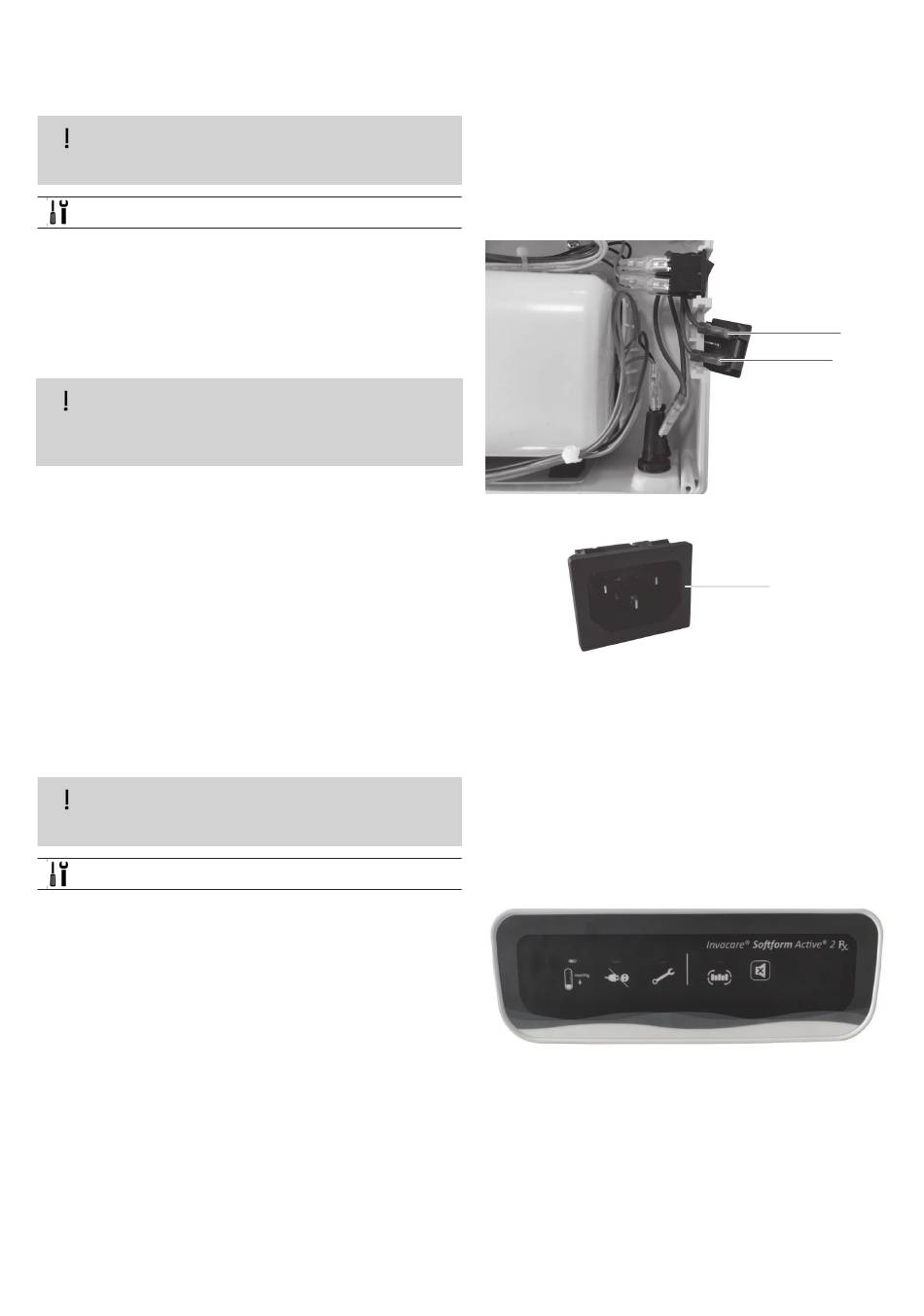

4.2 Replacing the Mains Cable Socket
Refers to spare parts kit SP1633237
NOTICE!
Risk of damaging the PCB by electro-static discharge
Handle PCBs only in Electrostatic Protected Areas
PH1 Philips Key
1. Switch off the control unit and disconnect from mains
supply.
2. Remove the bottom housing (see 4.1 Replacing the Front
Housing, page 6, step 4).
3. Unplug the brown A and blue B wires from the defective
mains socket.
NOTICE!
Risk of malfunction or damage to the Control Unit
Ensure the brown A and blue B wires are plugged
back into their original positions.
4. Plug the brown A and blue B wires to the new mains socket
C, ensuring they are installed in the original position. Slide
the socket into its slit.
5. Reinstall the bottom housing.
4.3 Replacing the User Interface
Refers to spare parts kit SP1633237
NOTICE!
Risk of damaging the PCB by electro-static discharge
Handle PCBs only in Electrostatic Protected Areas
PH1 Philips Key
1. Switch off the control unit and disconnect from mains
supply.
2. Remove the bottom housing (see 4.1 Replacing the Front
Housing, page 6, step 4).
3. Remove the user's interface label from the front housing.
8
4 Service | Digital Control Unit
A
B
C
