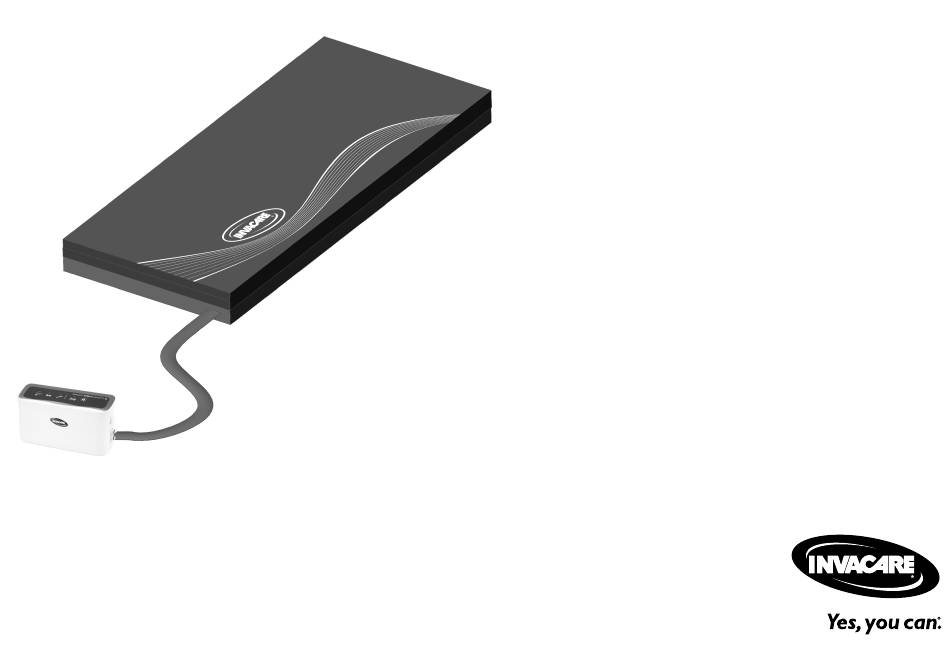

- Page 1 Invacare® Softform Premier Active 2 with RX pump en Hybrid mattress User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
6.2.2 Cleaning Intervals......18 Contents 6.2.3 Cleaning Instructions ......18 6.2.4 Disinfection Instructions . -
Page 4: General
Invacare® Softform Premier Active 2 with RX pump In case of a serious incident with the product, you should 1 General inform the manufacturer and the competent authority in your country. 1.1 Introduction 1.2 Symbols in this Document This user manual contains important information about the handling of the product. -
Page 5: Limitation Of Liability
General 1.4 Limitation of Liability Invacare accepts no liability for damage arising from: • Non-compliance with the user manual • Incorrect use • Natural wear and tear • Incorrect assembly or set-up by the purchaser or a third party •... -
Page 6: Safety
Invacare® Softform Premier Active 2 with RX pump 2 Safety WARNING! Risk of Developing Pressure Injuries The mattress delivers effective pressure reduction, 2.1 Safety Information when the support surface is covered with a cotton, cotton combination or linen bed sheet,... -
Page 7: Emc Information
– Only use original parts for the product in use. – Due to regional differences, refer to your local Invacare catalog or website for available options or contact your Invacare distributor. See addresses at the end of this document. -
Page 8: Product Overview
Invacare® Softform Premier Active 2 with RX pump 3.2.1 Indications 3 Product Overview Suitable for supporting the management of all categories 3.1 Product Description of pressure injuries when combined with an individual and comprehensive pressure injury protocol. The mattress system acts as a static pressure reducing... -
Page 9: Labels On The Product
Product Overview 3.4 Labels on the Product U-shape, non-castellated base layer The shown label serves as examples only. The labels on your Alternating air cell insert product might differ from these examples. Castellated insert Control Unit Micro-processor controlled control unit CPR connector Multi-stretch vapour-permeable cover Toughened PU coated base... -
Page 10: Symbols On The Product
Invacare® Softform Premier Active 2 with RX pump the labels for these components are not shown here. For Machine wash explanations of the symbols which are printed on the temperature. mattress and the cover, see section 3.5 Symbols on the Do not iron Max. -
Page 11: Setup
Setup 4 Setup WARNING! Risk of entrapment! Patient entrapment with bed side rails may cause 4.1 Safety information injury or death. – Mattress MUST fit bed frame and side rails WARNING! snugly to prevent patient entrapment. Electrical shock hazard! – Follow the manufacturer’s instructions. –... -
Page 12: Installing The System
Invacare® Softform Premier Active 2 with RX pump 4.2 Installing the system 4. Switch on mains power of the outlet if present. 5. Move the mechanical switch D on the left side of the Control unit to the On position. A faint single beep sounds and the system in cycle light flashes while the system powers up. -
Page 13: Usage
Usage 5 Usage CAUTION! Risk of damage to the mattress If holes are present in the mattress cover, there is 5.1 Safety Information a risk that liquids may ingress and contamination may occur. WARNING! – Ensure that the mattress is not jammed or Insufficient repositioning of the patient can damaged by sharp edges. -
Page 14: Control Unit Menu Display
Invacare® Softform Premier Active 2 with RX pump 5.2 Control unit menu display Overview Pos. Description Function Mute button The relevant audible / visible indicator turns on when low pressure, power failure or alternate failure is recognised. To mute the audible signal, press the Mute button. -
Page 15: Cpr Procedure
In the case of abnormal alternate or no alternate, the audible signal will be activated and alternate failure indicator will flash. 5.3 CPR procedure The Invacare® Softform Active® 2 Rx mattress has been fully tested to comply with the current CPR standard of 5- 6 cm compression depth. -
Page 16: Transport Mode
Invacare® Softform Premier Active 2 with RX pump 1. Hold down Red CPR button A. 2. Pull hose connector firmly away from the control unit B. 3. Switch off the control unit. Mattress will start to deflate. The deflation time is 20 seconds. -
Page 17: Maintenance
Maintenance 6 Maintenance CAUTION! Risk of electric shock and product damage – Switch off the device and disconnect from 6.1 Inspection mains, if applicable. – When cleaning electronic components consider It is recommended to check mattresses (air cells and cover) their protection class regarding water ingress. -
Page 18: Cleaning Intervals
Invacare® Softform Premier Active 2 with RX pump 6.2.2 Cleaning Intervals 3. Wipe off the control unit casing and hose fittings with a damp cloth to remove all detergent. IMPORTANT! 4. Air dry all treated surfaces. Regular cleaning and disinfection enhances... -
Page 19: Disinfection Instructions
Maintenance 6.2.4 Disinfection Instructions Heavy soilage Where the mattress is badly soiled, we IMPORTANT! recommend cleaning with a dilute cleaning – Only use disinfectants and methods approved solution at maximum temperature in the washing by your local infection control institution and machine (see product label). - Page 20 Invacare® Softform Premier Active 2 with RX pump IMPORTANT! – Ensure that the corners of the foam insert are positioned correctly into the corners of the cover. – Ensure that the castellated foam is facing upwards when inserted into its cover.
-
Page 21: After Use
After Use 7.3 Disposal 7 After Use Be environmentally responsible and recycle this product 7.1 Storage through your recycling facility at its end of life. Disassemble the product and its components, so the different IMPORTANT! materials can be separated and recycled individually. –... -
Page 22: Troubleshooting
Invacare® Softform Premier Active 2 with RX pump 8 Troubleshooting 8.1 Identifying and repairing defects There are audio and visual alarms present on the control unit. Cause Solution Problem / Alarm Mattress not inflating Mattress CPR hose disconnected. Connect CPR hose connector, lock it in place. - Page 23 Kinked connection hose Make sure that there are no kinks or bends in the hose. In case of issues with troubleshooting, please contact Invacare for further assistance (contact details on the back page of this User Manual). 1632862-A...
-
Page 24: Technical Data
Invacare® Softform Premier Active 2 with RX pump 9 Technical Data 9.1 Mattress Specifications Dimensions [inch] Maximum Air cell height Weight of Product user weight [inch] product [lbs] Length Width Height [lbs] Softform Active 2 Rx 80, 84 39, 42, 48 9.2 Control Unit Specifications... -
Page 25: Materials
Technical Data Power rating 23 VA T1 AL 250 V Control unit fuse 9.3 Materials Foam Polyurethane Combustion Modified High Resilience Foam Cover Polyurethane transfer coating on weft knitted fabric Air Cells Polyurethane coated nylon Glide Membrane Polyurethane Film Control unit and mattress components do not contain natural rubber latex. 9.4 Environmental Conditions Operation Storage and Transport... -
Page 26: Guidance And Manufacturer's Declaration
Invacare® Softform Premier Active 2 with RX pump 9.5 Guidance and manufacturer’s declaration The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 27 Technical Data Electromagnetic immunity Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance Electrostatic discharge ±8 kV contact ±8 kV contact Floors should be wood, concrete or ceramic tile. (ESD) If floors are covered with synthetic material, the ±2 kV, ±4 kV, ±8 kV, ±2 kV, ±4 kV, ±8 kV, relative humidity should be at least 30%.
- Page 28 Invacare® Softform Premier Active 2 with RX pump Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance Power frequency Power frequency magnetic fields should be at 30 A/m 30 A/m (50/60 Hz) magnetic levels characteristic of a typical location in a field typical commercial or hospital environment.
- Page 29 Technical Data Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance Radiated RF d = 1.12 x √P 80 MHz to 800 MHz 10 V/m 10 V/m IEC 61000-4-3 80 MHz to 2.7 GHz 80 MHz to 2.7 GHz d = 2.3 x √P 800 MHz to 2.5 GHz 385MHz - 5785MHz 385MHz - 5785MHz...
- Page 30 Invacare® Softform Premier Active 2 with RX pump NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
- Page 31 Technical Data Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
- Page 32 Invacare Distributors USA: Invacare Corporation One Invacare Way Elyria, Ohio USA 44035 800–333–6900 www.invacare.com Manufacturer: Invacare UK Operations Limited Pencoed Technology Park, Pencoed Bridgend CF35 5AQ 1632862-A 2020-08-27 Making Life’s Experiences Possible® *1632862A*...
