Replacing The Compressor - Invacare Softform Active 2 Rx Service Manual

Invacare® Softform Active® 2 Rx

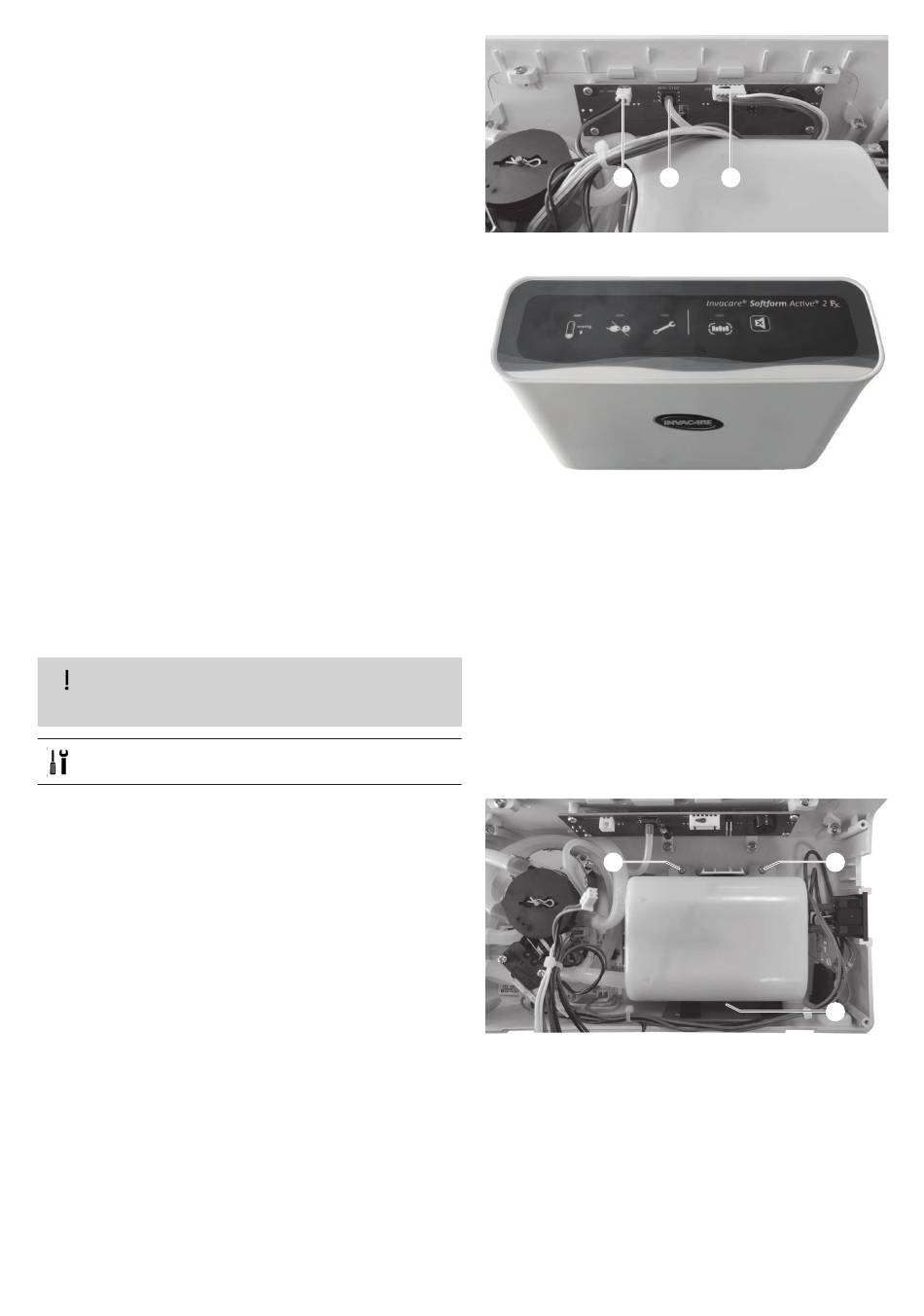

4. Unplug wires A, silicone tube B, and wires C from the
UIPCB.
5. Loosen and remove the seven screws fixing the interface
label to the front housing (see 4.1 Replacing the Front
Housing, page 6, step 12).
6. Remove the non-functioning UIPCB from the housing.
7. Install the new User's interface, which includes a new -
already attached - UIPCB, on the front housing.
8. Position and tighten the provided screws.
9. Plug wires A, silicone tube B, and wires C into the new
UIPCB.
10. Reinstall the bottom housing (see 4.1 Replacing the Front
Housing, page 6).
11. Place the unit with the Invacare logo facing forward and
install the new digital control's stick-on label as illustrated.
4.4 Replacing the Compressor
Refers to spare parts kit SP1633237
NOTICE!
Risk of damaging the PCB by electro-static discharge
Handle PCBs only in Electrostatic Protected Areas
PH1 Philips Key
Wire clippers
1. Switch off the control unit and disconnect from mains
supply.
2. Remove the bottom housing (see 4.1 Replacing the Front
Housing, page 6, step 4).
3. Loosen and remove the three screws A fixing the
compressor to the front housing.
