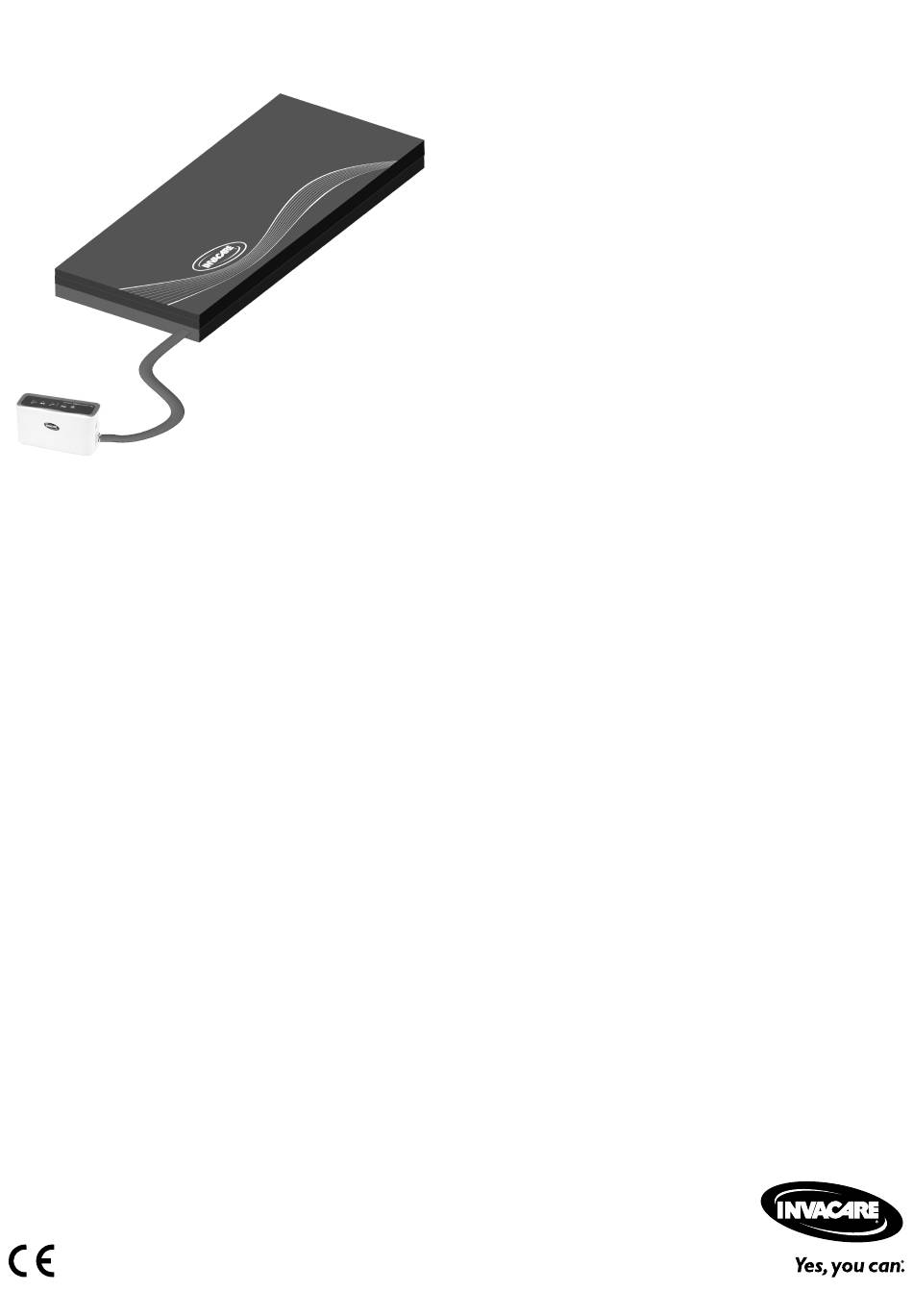

- Page 1 Invacare® Softform Active® 2 with RX pump en Mattress system User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 General ......... 1.1 Introduction . -
Page 4: General
The models and configurations available in your country can be found in the country-specific sales documents. 1.4 Warranty Information Invacare reserves the right to alter product specifications We provide a manufacturer’s warranty for the product without further notice. in accordance with our General Terms and Conditions of Business in the respective countries. -
Page 5: Safety
Risk of Serious Injury or Damage – Due to regional differences, refer to your Improper use of this product may cause injury local Invacare catalog or website for available or damage. options or contact your Invacare distributor. – If you are unable to understand the warnings, See addresses at the end of this document. -
Page 6: Product Overview
Alternating air cell insert 3.1 Product description Castellated insert Micro-processor controlled control unit The Invacare® Softform Active® 2 Rx mattress system acts as a static pressure reducing support/mattress for patients CPR connector at High/Very High risk that can, by facilitating the air pump,... -
Page 7: Symbols On The Product
Product Overview 3.5 Symbols on the product Type BF applied Class II equipment part European Read user manual Conformity Do not pierce or Do not put near flame Medical Device Caution Machine wash temperature. Max. Hand wash European Manufacturer temperature is representative shown in symbol. -
Page 8: Setup
Invacare® Softform Active® 2 with RX pump 4 Setup WARNING! This mattress is recommended to be installed on medical bed frames with bed side rails or assist rails. It is preferred that the rails to be in the 4.1 Safety information raised position whenever the patient is on the bed. -
Page 9: Usage
Usage 5 Usage CAUTION! Risk of damage to the mattress If holes are present in the mattress cover, there is a risk that liquids may ingress and contamination 5.1 Safety Information may occur. – Ensure that the mattress is not jammed or WARNING! damaged by sharp edges. -
Page 10: Control Unit Menu Display
In the case of abnormal alternate or no alternate, the audible signal will be activated and alternate failure indicator will flash. 5.3 CPR procedure The Invacare® Softform Active® 2 Rx mattress has been fully tested to comply with the current CPR standard of 5- 6 cm compression depth. This was achieved at all stages of inflation/deflation. -
Page 11: Transport Mode
Usage Air supply hose should be stored by attaching to the fastener Mattress will start to deflate. The deflation time is at foot of the mattress. 20 seconds. For Active Care mattress, the air hose is located inside the 4. When CPR is complete reactivate the system following mattress. -
Page 12: Maintenance
Invacare® Softform Active® 2 with RX pump 6.2.2 Cleaning Intervals 6 Maintenance IMPORTANT! Regular cleaning and disinfection enhances 6.1 Inspection smooth operation, increases the service life and prevents contamination. It is recommended to check mattresses (air cells and cover) Clean and disinfect the product for strike-through (this may include fluid ingress, stains, rips –... -
Page 13: Disinfection Instructions
Maintenance 6.2.4 Disinfection Instructions WARNING! – In event of contamination, contact your hygiene IMPORTANT! specialist. – Only use disinfectants and methods approved – Remove contaminated foams from use. by your local infection control institution and follow your local infection control policy. –... -
Page 14: After Use
Invacare® Softform Active® 2 with RX pump • Inspection 7 After Use • Cleaning and disinfection For detailed information, see 6 Maintenance, page 12. 7.1 Storage Make sure that the user manual is handed over with the product. IMPORTANT! – Store mattresses in a dry environment. -
Page 15: Troubleshooting
Kinked connection hose Make sure that there are no kinks or bends in the hose. In case of issues with troubleshooting, please contact Invacare for further assistance (contact details on the back page of this User Manual). 1627707-D... -
Page 16: Technical Data
Invacare® Softform Active® 2 with RX pump 9 Technical Data 9.1 Mattress Specifications Maximum Dimensions [mm] Air cell height Weight of Product user weight [mm] product [kg] Length Width Height [kg] 1810 — 2100 830 — 900 247.6 Softform Active 2 Rx Weight can vary depending on mattress size. -
Page 17: Control Unit
Technical Data 9.2 Control unit Main Supply 220 – 240 V~, 50/60 Hz Rated Input Current Supply Fuse Noise Level ≤ 24 dB Classification Class II Type BF Cycle Time 10 min, A/B +/- 1 min Size 275 mm X 155 mm X 105 mm Weight 1.75 kg Air Flow... - Page 18 Invacare® Softform Active® 2 with RX pump Electromagnetic immunity Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance Electrostatic discharge ±8 kV contact ±8 kV contact Floors should be wood, concrete or ceramic tile. (ESD) If floors are covered with synthetic material, the ±2 kV, ±4 kV, ±8 kV,...
- Page 19 Technical Data NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 20 Invacare® Softform Active® 2 with RX pump Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
- Page 21 Notes...
- Page 22 Notes...
- Page 23 Notes...
- Page 24 Fax: (44) (0) 1656 776 220 Fax: (353) 1 810 7085 uk@invacare.com ireland@invacare.com www.invacare.co.uk www.invacare.ie Australia: Invacare Australia Pty. Ltd. 1 Lenton Place, North Rocks NSW 2151 Australia Phone: 1800 460 460 Fax: 1800 814 367 orders@invacare.com.au www.invacare.com.au Invacare Portugal, Lda...
