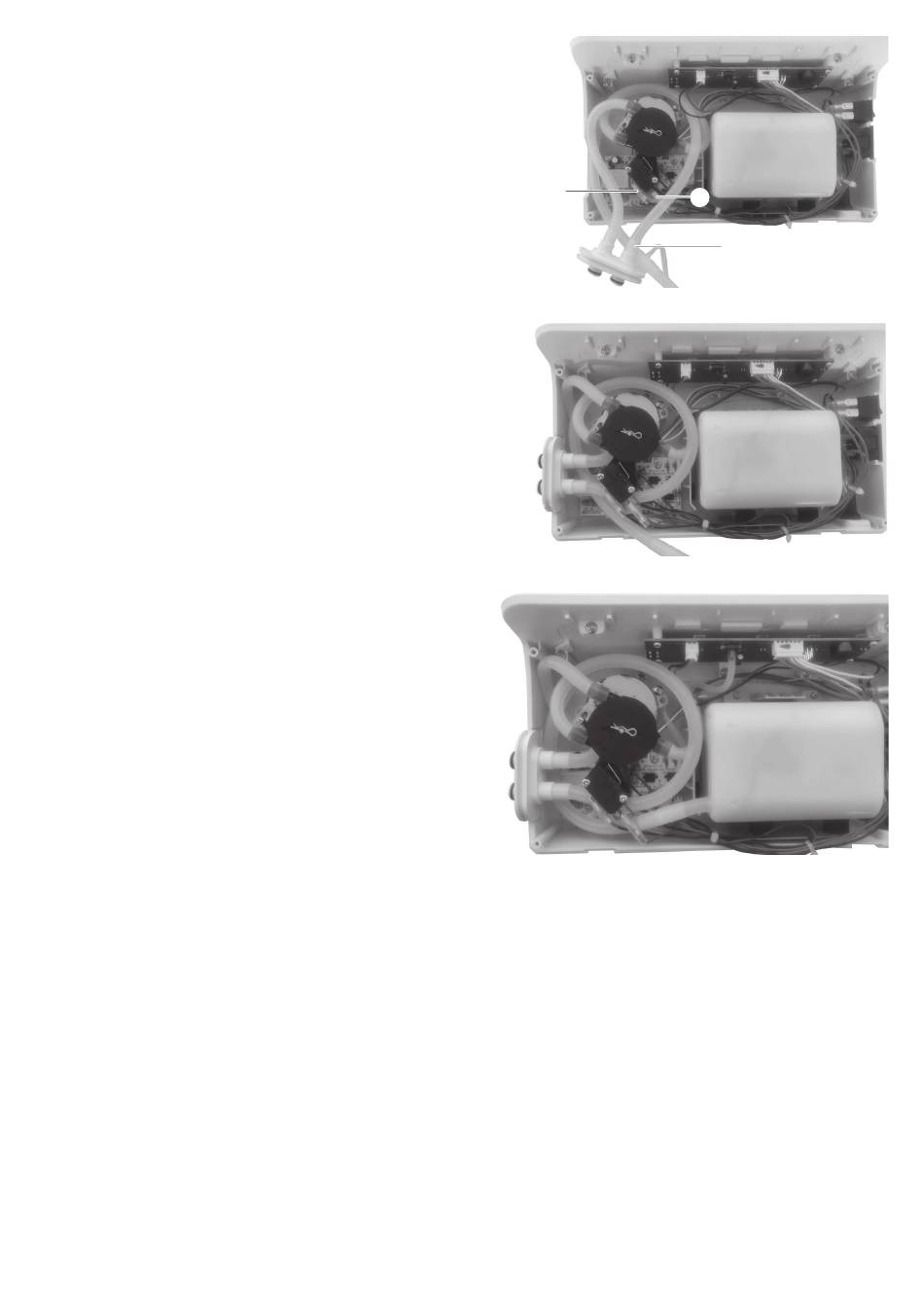

15. Pick the longer tube connected to the CPR connector , put
it around the motor, clockwise, and plug it back to the
connector, threading it under the microswitch wires D.
16. Install the CPR connector in its place, making sure the longer
silicone tube is underneath.
17. Slide the T-valve underneath the microswitch, connect the
wider tube to the compressor and the thinner one to the
user interface, making sure it goes under all the other tubes.
18. Reinstall the bottom housing.
