INSTALLATION INSTRUCTIONS
DXV Modulus
Solid Surface Shower Base
Models: D16030STR, D16030STL, D16032STR,
D16032STL, D14836STC
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and
plumbing supply stores. It is essential that the tools and materials be on hand before work has begun.
Tools
• Level
• Pencil
• Square
• Tape Measure
• Pipe Wrench
The opening dimensions should be at least 1/8" larger than dimensions shown.
For the best fit, the opening measurements should be verified against the actual shower base received.

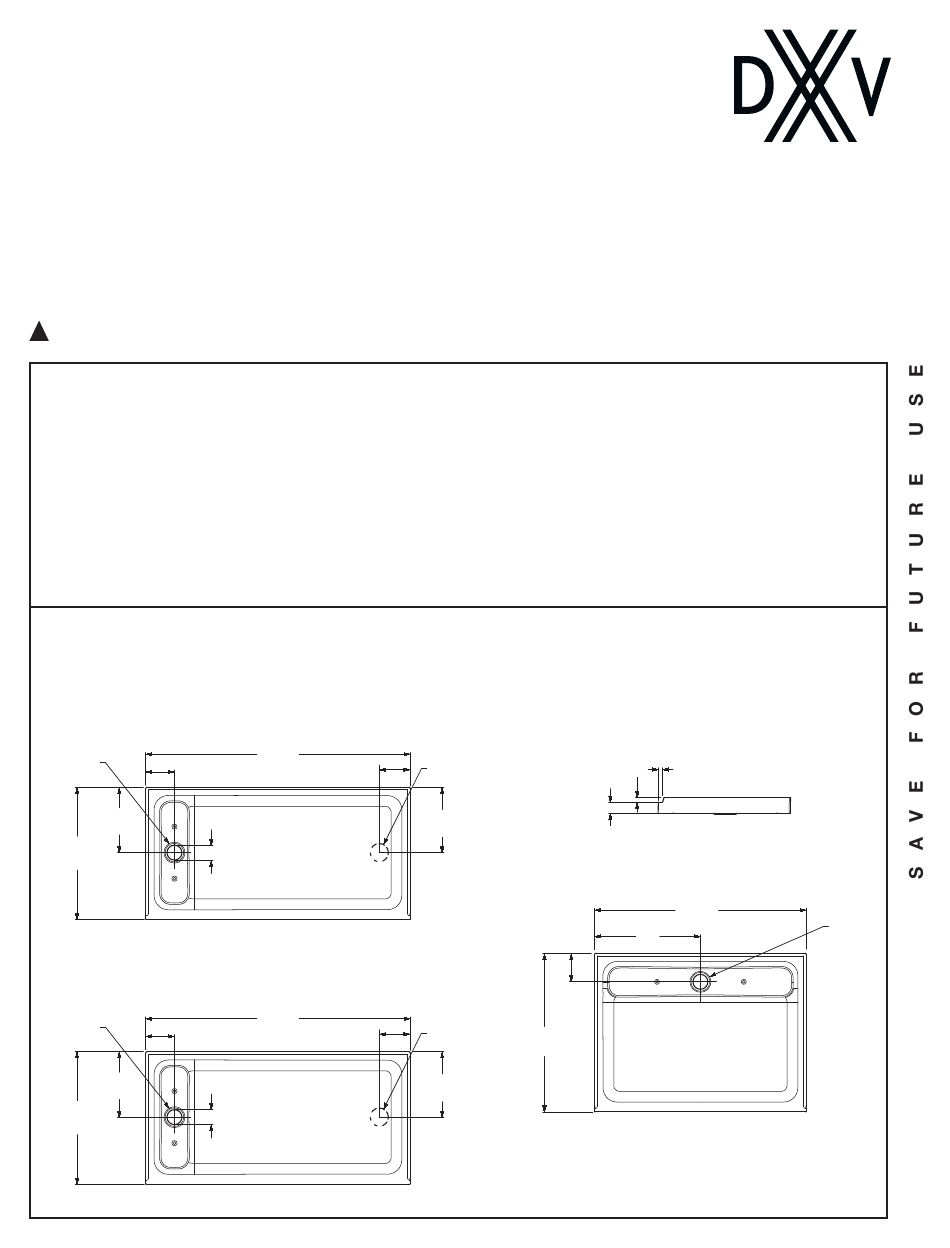

ROUGH-IN REFERENCES
LEFT-HAND
6-1/2"
OUTLET
(165 mm)
14-7/8"
(378mm)
30"
(762 mm)
LEFT-HAND
OUTLET 6-1/2"
(165 mm)
16"
(406 mm)
32"
(813 mm)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
™
• Slip Joint Pliers
• Screw Driver
• Standard Woodworking Tools
• Personal Safety Equipment
• Caulking Gun
D16030STR / D16030STL
60"
(1524 mm)
6-1/2"
(165 mm)
3-3/8" (86 mm)
FRONT
TOP VIEW
D16032STR / D16032STL
60"
(1524 mm)
6-1/2"
(165 mm)
3-3/8" (86 mm)
FRONT
TOP VIEW
Materials
• Silicone Sealant
• Drop Cloth
• Mortar Mix or Grout
RIGHT-HAND
OUTLET
2-1/2"
(64 mm)
14-7/8"
(378mm)
6-1/2"
(165 mm)
RIGHT-HAND
36"
OUTLET
(914 mm)
16"
(406 mm)
- 1 -
FOR ALL MODELS
1"
(25 mm) 2-1/8" (54 mm)
THRESHOLD DEPTH
RIGHT SIDE
D14836STC.XXX
48"
(1219 mm)
24"
(610mm)
FRONT
TOP VIEW
755193-100 Rev. B (4/18)
CENTER
OUTLET
