INSTALLATION INSTRUCTIONS

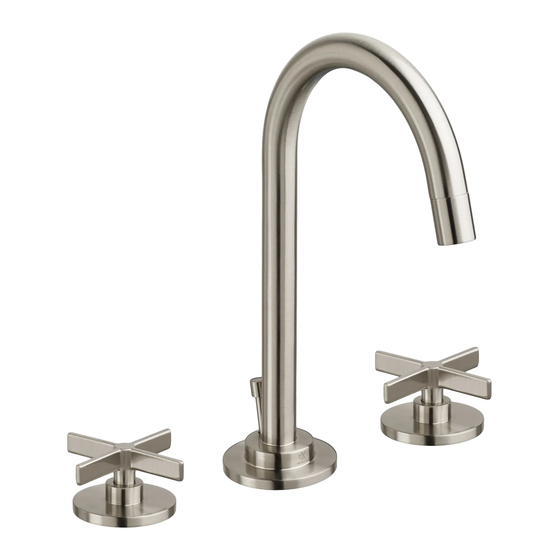

Percy
®
Widespread Faucet
Cross Handle
Model D3510584C
Lever Handle
Model D3510580C
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks

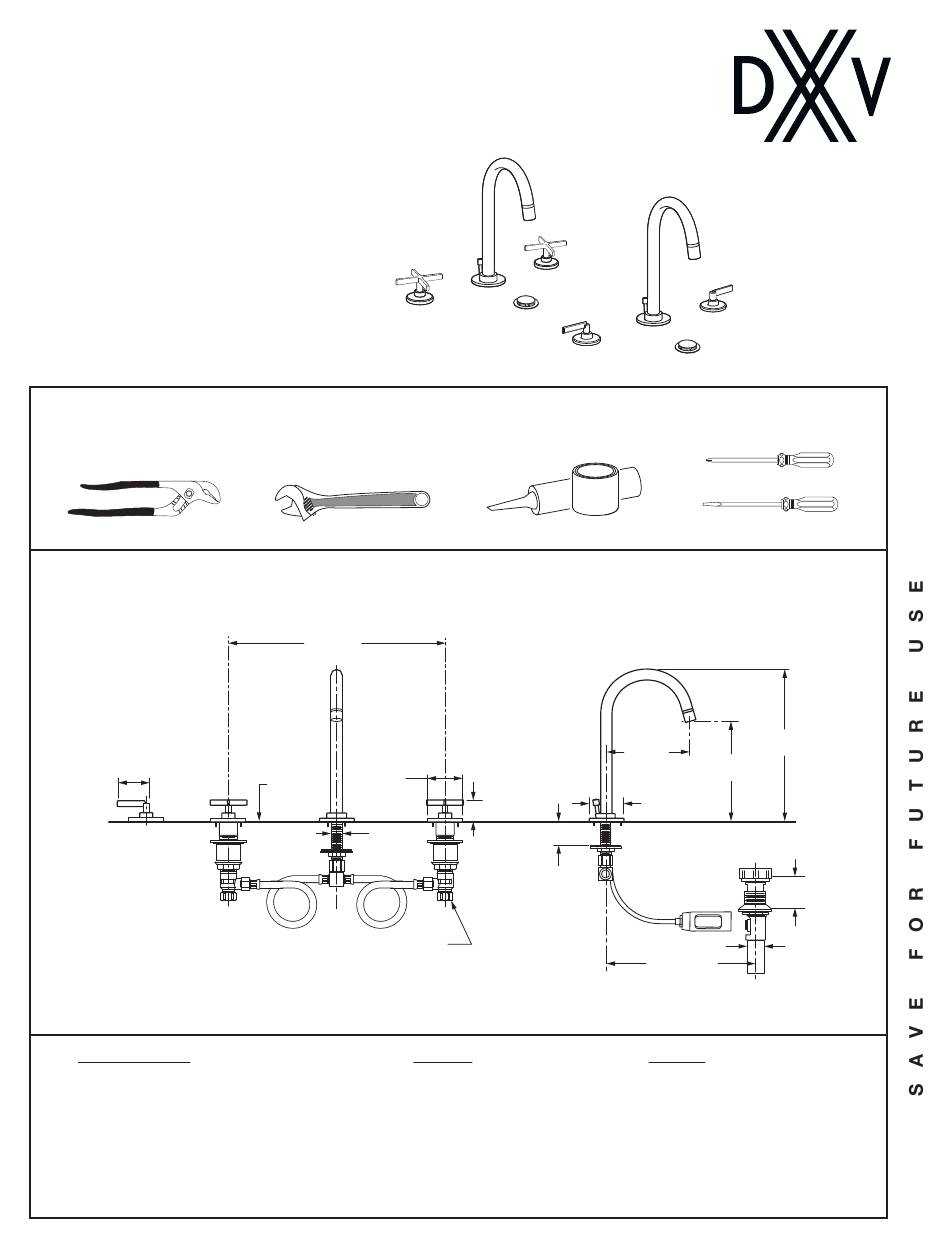

ROUGHING-IN DIMENSIONS:
• For reference
2-1/2"
(63 mm)
CROSS
LEVER
HANDLE
HANDLE
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Adjustable Wrench
6" to 12"
(152 to 305 mm)
2-1/4"
MOUNTING
(57 mm)
SURFACE
7/8" DIA.
(22 mm)
CONNECTIONS:
• 1/2" IPS FLEXIBLE SUPPLIES
• 3/8" O.D. BULL-NOSE RISERS
NOTE: MOUNTING HOLES ARE 1-3/8" DIA. (35 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Plumbers' Putty or Caulking
5-7/16"
(138 mm)
1-1/2"
(37 mm)
1-1/2" MAX.
(38 mm)
- 1 -
Phillips Screwdriver
Flat Blade Screwdriver
9-11/16"
(245 mm)
6-9/16"
(167 mm)
2-1/4" DIA.
(57 mm)
2" MAX
(51 mm)
1-1/4" O.D.
(32 mm)
10-1/2" MAX.
(267 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965710 Rev. 1.0 (5/17)
Advertisement
Table of Contents
Related Manuals for DXV Percy D3510584C
Summary of Contents for DXV Percy D3510584C
- Page 1 Cross Handle Model D3510584C Lever Handle Model D3510580C Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores.
- Page 2 SPOUT ASSEMBLY TEE ASSEMBLY Turn off hot and cold water CAUTION supplies before beginning. • Thread TEE BODY (1) COUPLING NUT (2) to SPOUT SHANK (3). Tighten with wrenches. • Insert SPOUT ASSEMBLY (1) and CABLE CONNECTOR (2) through center hole, making sure O-RING SEAL (3) is properly seated in SPOUT BASE (4) groove.
- Page 3 INSTALL POP-UP DRAIN Fig. B. Fig. A. Fig. B. • Remove CLEAR PLASTIC COVER (1). Fig. A. DRAIN • Remove FOAM SPACER (2) from under BODY DRAIN POP-UP (3). Fig. A. • Tighten TAILPIECE (4) on DRAIN BODY before installing DRAIN BODY. Fig. B. REMOVE MOUNTING WASHERS Fig.
- Page 4 ATTACH CABLE CONNECTOR Fig. A. Fig. B. Fig. A. • Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4"...
- Page 5 CONNECT DRAIN • Connect 1-1/4" (32mm) O.D. tailpiece on POP-UP DRAIN to waste outlet. 1-1/4" (32mm) O.D. TAILPIECE WASTE OUTLET TEST INSTALLED FITTING • With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. •...
- Page 6 Speed Connect Drain ® Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
- Page 7 STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). Fig. G. LOCKED MODE: • Look at the Plastic Loop at the bottom of the Stopper and notice that the Loop is on one side of the Stopper.
- Page 8 Percy ® Widespread Faucet MODEL NUMBERS Cross Handle D3510584C Lever Handle D3510580C Replace the “YYY” with appropriate finish code POLISHED CHROME BRUSHED NICKEL M964630-YYY0A M964629-YYY0A LEVER HANDLE CROSS HANDLE ASSEMBLEY ASSEMBLEY M964751-YYY0A LIFT KNOB M964752-YYY0A ASSEMBLY AERATOR ASSEMBLY M964712-0070A O-RING M952430-0070A SPEED CONNECT CABLE ASSEMBLY...
