Installation Quick Reference

The IP Endpoint Company

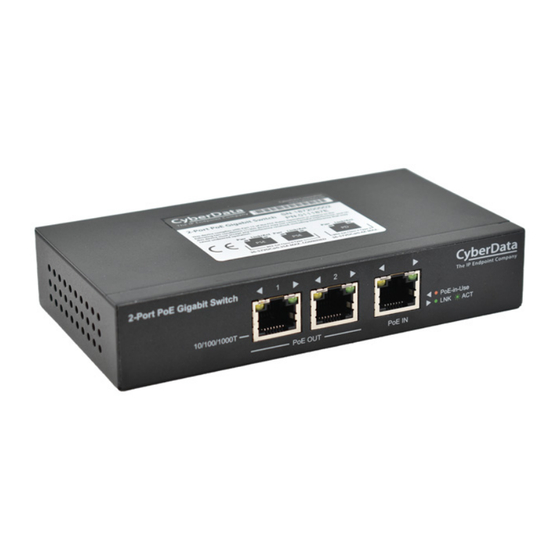

2-Port PoE Gigabit Switch

011187

Installation Method

The site where you install the switch may greatly affect its performance. When installing, please take the following into

consideration.

•

Install the switch in a cool, dry place. See the technical specifications tab at

https://www.cyberdata.net/products/011187

•

Install the switch on a secure, level surface. Alternatively, the switch can be applied to any smooth dry surface

using furnished stick-on tape.

•

Leave at least 10cm of space at the front and rear of the switch to ensure adequate ventilation.

Typical Installation

802.3 af /

802.3 at

Screw* Mounting

* Mounting screws and adhesive are included

Quick Reference



for the acceptable temperature and humidity operating ranges.

PoE power for the phone

Adhesive* Mounting

930469L

Non-PoE
