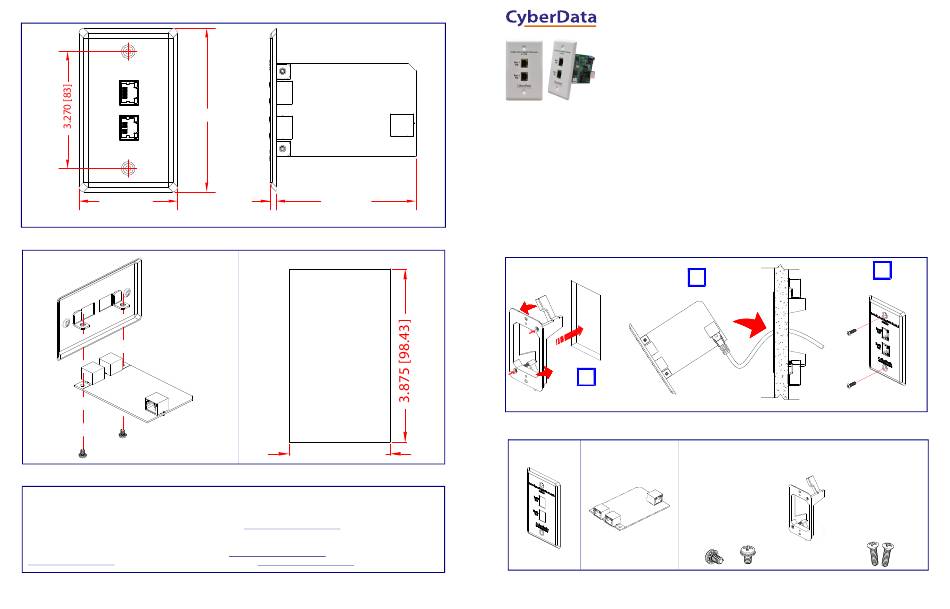

Dimensions
4.567 [116]
2.756 [70]
Dimensions are in Inches [Millimeters]
DIMENSIONS ARE IN INCHES [MILLIMETER]
Mount PCBA to Faceplate
Faceplate
PCBA
Mounting Screw
Contacting CyberData
Corporate Headquarters
Sales: 831-373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: 831-373-2601 ext. 136
Phone: 831-373-2601
RMA Email: RMA@CyberData.net
Fax: 831-373-4193
RMA Status:
http://www.cyberdata.net/
Warranty Information:
© 2021, CyberData Corporation, ALL RIGHTS RESERVED
0.177 [4.5]
3.900 [99]
Wall Cutout
Dimensions are in Inches [Millimeters]
2.250 [57.15]
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931826A
Quick Reference
Installation Quick Reference

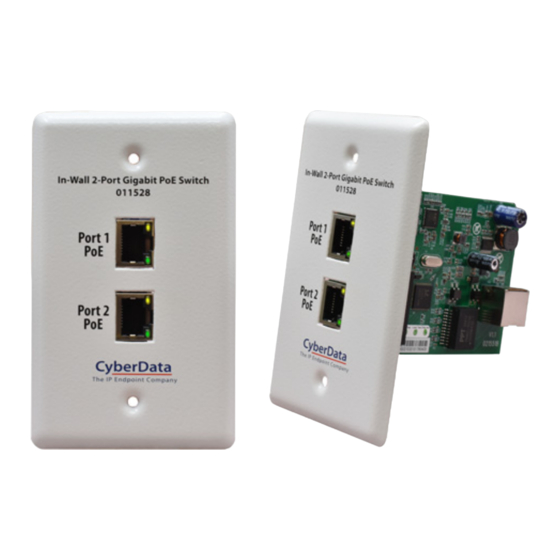

In-Wall 2-Port Gigabit PoE Switch
The IP Endpoint Company
011528
Installation Method
The site where you install the switch may greatly affect its performance. When installing, please take the following into
consideration:
•
Test the PoE network drop before connecting the CyberData device.
•
Use caution when inserting or modifying connections and install the product in a clean, flat wall surface.
•
Ensure there are no temperature or humidity concerns in the intended environment. See the Specs tab at
https://www.cyberdata.net/products/011528
for the acceptable temperature and humidity operating ranges.
•
To prevent electrical issues, avoid installing in close contact with other electrical wires, next to in-wall insulation, or exposing
the circuit board upon completing the installation.
•
Never install components in wet locations or during lightning storms.
•
It is advised to consult a certified electrician for installation.
Typical Wall Installation
Plug in the network cable and angle in
1
Fold flagnuts down,
then insert into wall cutout and
tighten screws
Parts
(1) Faceplate
(1) PCBA
Quick Reference
2
Secure Unit with Faceplate Screws
Accessory Kit
(1) Low Voltage Bracket
(2) PCBA Mounting Screws
(2) Faceplate Screws
931826A
© 2021, CyberData Corporation, ALL RIGHTS RESERVED
3
