CyberData 011187 Installation Quick Reference

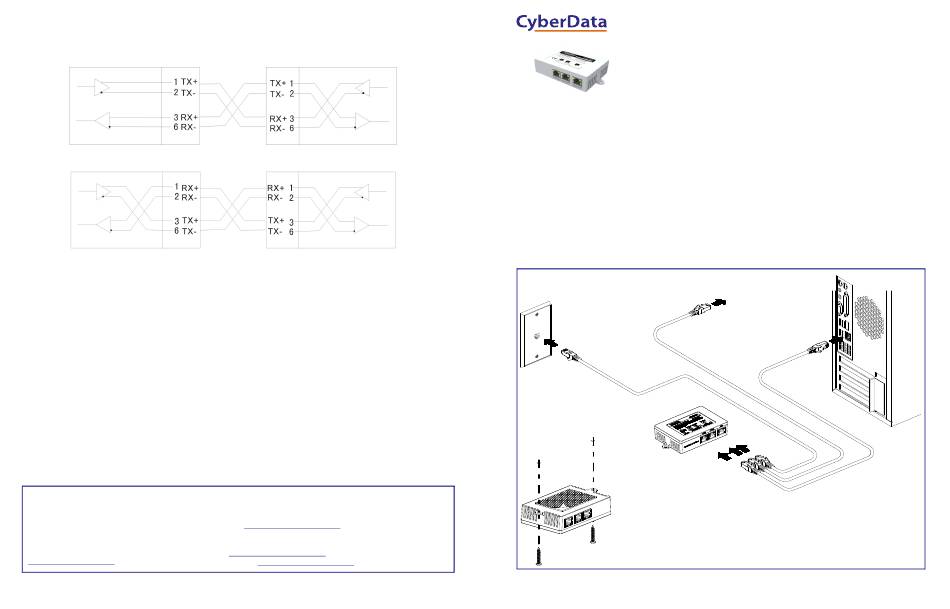

The Standard Cable, RJ-45 Pin Assignment
The following figures shows a straight cable and a crossover cable connection. Use a straight cable connection to connect switch/
Hub or other devices:
Straight cable for the switch (uplink MDI-II port) to switch/Hub or other devices connection.
Crossover cable for switch (MDI-X port) to switch/hub or other network devices (MDI-X port) connection.
Contacting CyberData
Corporate Headquarters
Sales: 831-373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: 831-373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2021, CyberData Corporation, ALL RIGHTS RESERVED
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
930469I Quick Reference
Installation Quick Reference

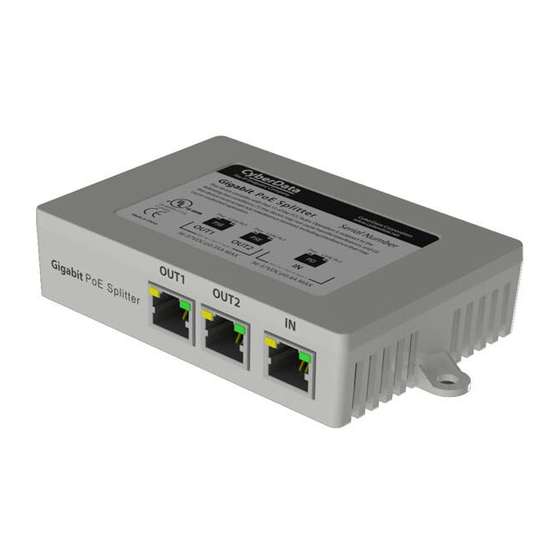

The IP Endpoint Company 2-Port PoE Gigabit Switch
011187
Installation Method
The site where you install the switch may greatly affect its performance. When installing, please take the following into
consideration.
• Install the switch in a cool, dry place. See the technical specifications tab at
for the acceptable temperature and humidity operating ranges.
• Install the switch on a secure, level surface. Alternatively, the switch can be applied to any smooth dry surface using
furnished stick-on tape.
• Leave at least 10cm of space at the front and rear of the switch to ensure adequate ventilation.
Desktop or Shelf Installation
When installing the switch on a shelf on desktop, make sure that the previously mentioned guidelines in the
Installation Method section are followed for adequate ventilation.
Typical Installation
PoE Power for Phone
802.3af or
802.3at
Mounting Options:
1. Mounting Screws (not included)
• Use a size 6 to 8 pan head screw.
2. Adhesive
• Peel off the adhesive backing and attach the
unit to a suitable surface.
Quick Reference
https://www.cyberdata.net/products/011187
Non-PoE
930469I © 2021, CyberData Corporation, ALL RIGHTS RESERVED
