CyberData 011508 Installation Quick Reference

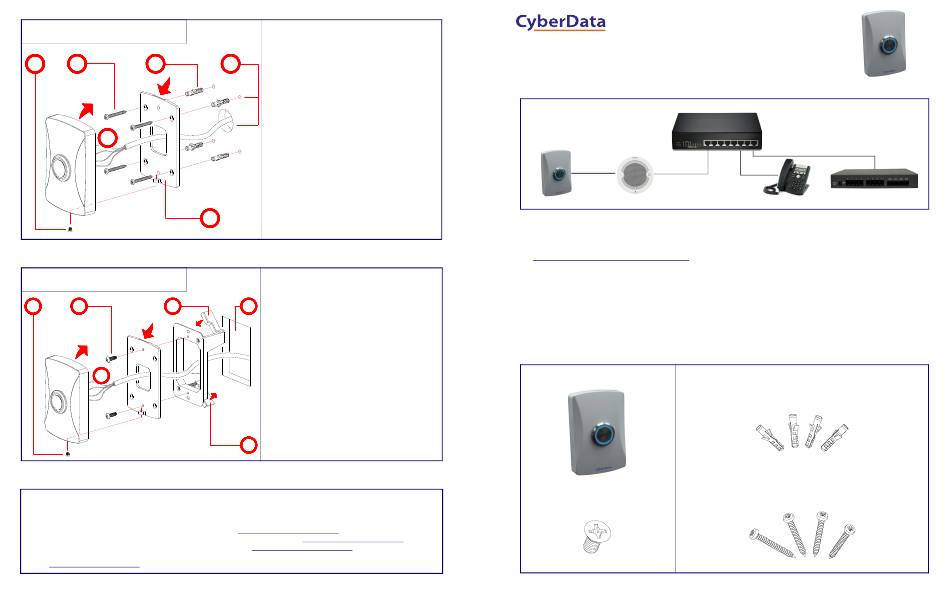

Mounting Options—Wall Mounting
To be installed and or used in accordance with the
appropriate electrical codes and regulations.
6 4 2
5
BP
RCB
Mounting Options—Plastic Low Voltage Bracket
To be installed and or used in accordance with the
appropriate electrical codes and regulations.
3 2
5
4
BP
RCB
Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601
Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
1. Prepare a hole cutout for both wires and the plastic-
ribbed anchors. Use the provided Mounting Template
1
or place the backplate directly onto the mounting
surface. Mark the surface, and then drill the holes. (Drill
Size: 3/16-inch / 4.8-mm) for the plastic-ribbed anchors.
2. Use a rubber mallet to hammer the plastic-ribbed
anchors into the prepared holes.
3. Lineup the backplate's Elongated Hole to the plastic-
ribbed anchors.
4. Install the mounting screws through the backplate
and plastic-ribbed anchors.
5. Connect the wires to the terminals on the Remote
Call Button. See the Connections diagram on the
Quick Reference Placemat.
6. Put the Remote Call Button and the backplate
together by installing the flat head machine screw on
3
the bottom.
1. Make a hole cutout for the Low Voltage Bracket*.
1
2. Fold down the flagnuts, and then insert the Low
Voltage Bracket into the hole cutout.
3. Install the mounting screws* through the backplate
and the Low Voltage Bracket.
4. Connect the wires to the terminals on the Remote
Call Button. See the Connections diagram on the
Quick Reference Placemat.
5. Put the Remote Call Button and the backplate
together by Installing the flat head machine screw on
the bottom.
*The Low Voltage Bracket and mounting screws are
not provided.
2
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
931700C Quick Reference
Installation Quick Reference

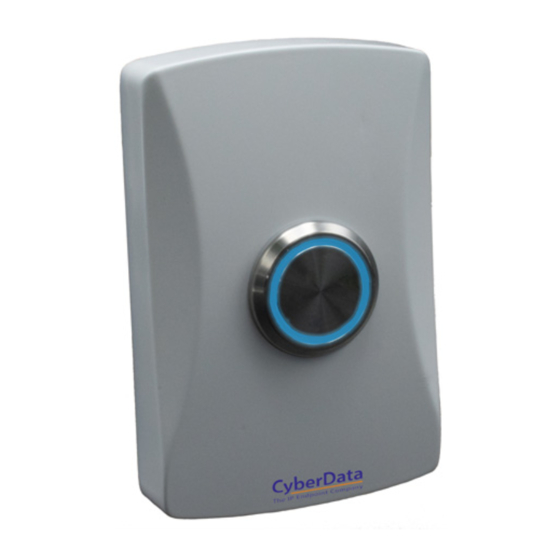

The IP Endpoint Company Remote Call Button
011508

Typical Installation

802.3af Compliant Ethernet Switch
Talk-Back Speaker
Remote Call Button

Getting Started

• Download the Remote Call Button Operations Guide PDF file from the Downloads tab at:
https://www.cyberdata.net/products/011508/
• Create a plan for the locations of your speakers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The Call Button enclosure is not rated for any AC voltages!

Parts

(1) Call Button Assembly
(1x) M3 x 6mm Flat Head Machine Screw
Quick Reference
IP Phone IP PBX Server
Accessory Kit
(4x) Plastic Ribbed Anchor
(4x) Wall Mounting #6x1.25" Pan
Head Phillips Sheet Metal Screw
931700C © 2023, CyberData Corporation, ALL RIGHTS RESERVED
