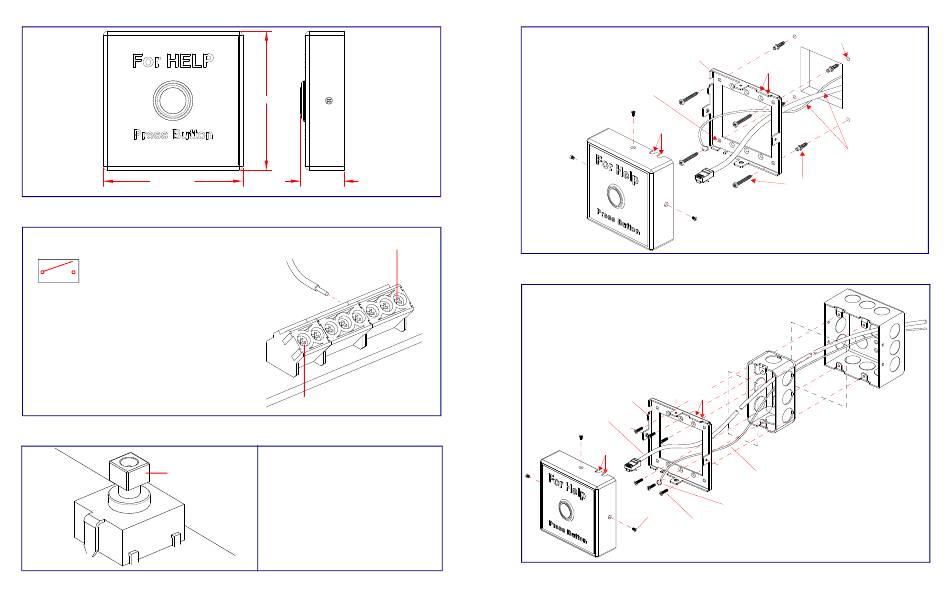

CyberData 011049 Installation Quick Reference page 2

Dimensions
4.528 [115.0]
DIMENSIONS ARE IN INCHES [MILLIMETER]
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
RTFM Button
RTFM button (SW1)
© 2024, CyberData Corporation, ALL RIGHTS RESERVED
4.528 [115.0]
1.400 [35.6]
Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws
Wire (IN)
Tin Leads
Approx. 1/4" or
6mm
8
Terminal Block
can accept 16 AWG wire
To restore the device to factory default settings:
• Press and hold the RTFM button for longer than
five seconds. After releasing the RTFM button,
the LED button remains solid BLUE for about 17
seconds and then turns off for about 40 seconds
while the device is rebooting. Once the unit is
fully rebooted it will return back to solid BLUE.
931549C Quick Reference
Wall Mounting Options
Pick One of Four Mounting Hole
for Ground Wire Connection
Gang Box Mounting Options
1
Network Cable
(Not Provided)
Quick Reference
Backplate
Cable
Slots
Closed
Cable
Entry
Slot
Screw Accessory Kit
Mounting
Screw (3x)
Cable
Slots
Closed
Backplate
Cable
Entry
Wall Cutout
Slot
Ground Wire
(Not Provided)
Pick One of Two or Four
Mounting
Available Mounting Hole
Screw (3x)
for Ground Wire Connection
121002B
Screw
Accessory Kit
Single Gang Box use two
Two Gang Box use Four
931549C © 2024, CyberData Corporation, ALL RIGHTS RESERVED
Pre Drill Holes
(4 Places) on Wall
Wall
Cutout
Network Cable &
Ground Wire are
Not Provided
121001A
Wall Cutout
Backplate accept
Single Gang Box
or Two Gang Box
