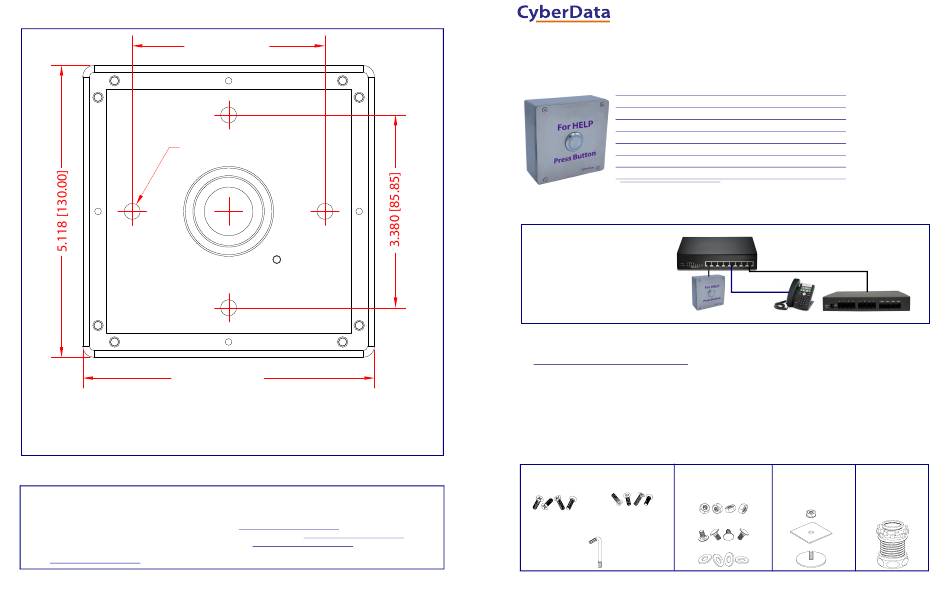

CyberData 011491 Installation Quick Reference

Maximum Recommended Wall Cutout Dimensions
3.380 [85.85]
Ø0.280 [Ø7.11]
(4 Places)
Scale: 1 to 1
5.118 [130.00]
Dimensions are in Inches [Millimeters]
Printing Instructions: Before printing this document or the mounting template, check the following:
• Make sure that the Paper Size setting of the printer is set to 11"x 17".
• Make sure that the Page Scaling setting of the printer is set to NONE (with no scaling [1:1])
• Make sure that the Fit to Paper Size setting of the printer is not selected.
Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601 Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
© 2024, CyberData Corporation, ALL RIGHTS RESERVED
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
931654D Quick Reference
Installation Quick Reference

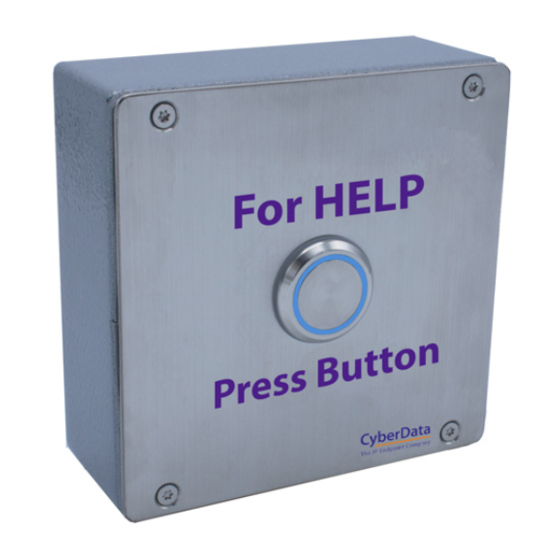

SIP Outdoor Call Button
The IP Endpoint Company
SIP Compliant
011491
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
802.3af Compliant Ethernet Switch
SIP Outdoor Call Button
Getting Started
• Download the SIP Outdoor Call Button Operations Guide PDF file, from the SIP Outdoor Call Button product page at:
https://www.cyberdata.net/products/011491
• Create a plan for the locations of your SIP Outdoor Call Buttons.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
•
WARNING: This enclosure is not rated for any AC voltages!
Parts
Accessory Kit Optional Accessories
(for gooseneck mounting)
(4) Phillips Screws (4) Security Torx Screws
(4) Carriage bolt nuts
(4) Carriage bolts
Mounting Component
Security Torx Key
(4) Carriage bolt washers
Quick Reference
Factory Default Setting
DHCP
192.168.1.23
admin
admin
255.255.255.0
192.168.1.1
IP Phone IP PBX Server
Optional Accessories Sold Separately
(1) 531085* Hole (1) 1/2-inch EMT
plug assembly compression
connector with extra
sealing locknut
