Assembly and Operating Instructions

max. 150 kg

~ 120 Min.

95 kg

L 170 | W 134 | H 205

IFP1301

FSTFIFP1301.01.01

Art. No. TF-IFP1301

TF-

LAT PULLDOWN

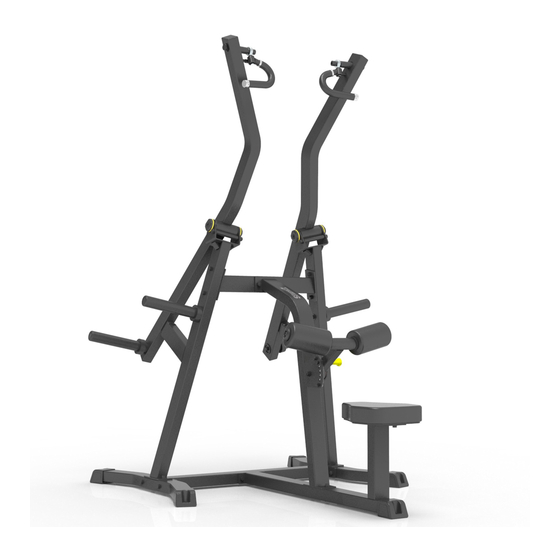

Taurus Pro Lat Pulldown

OWNER'S MANUAL

23M

Need help?

Do you have a question about the Pro Lat Pulldown and is the answer not in the manual?

Questions and answers

Summary of Contents for Taurus Pro Lat Pulldown

Page 1 Assembly and Operating Instructions max. 150 kg ~ 120 Min. 95 kg L 170 | W 134 | H 205 IFP1301 FSTFIFP1301.01.01 Art. No. TF-IFP1301 LAT PULLDOWN Taurus Pro Lat Pulldown OWNER'S MANUAL...
Page 2 Pro Lat Pulldown...
Page 3 Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing...
Page 4 Pro Lat Pulldown...
Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
Page 6 (person with legal responsibility). Class H (home use): use at home. These stationary training devices are intended for the use in private homes where access to the training device is regulated by the owner (person with legal responsibility). Pro Lat Pulldown...
Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ࣑...
Page 8 Box 2: 173.5 cm x 51.5 cm x 23 cm Set-up dimensions (L x W x H) approx.: 170.3 cm x 139.9 cm x 204.7 cm Maximum user weight: 150 kg Maximum load: 200 kg Use class: Pro Lat Pulldown...
Page 9 Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
Page 10 For Class S equipment, Specifica the exercise equipment Class: S may only be used in areas where access, Maximum supervision and control Maximum are specifically regulated by the owner. Product D Product T Product T Pro Lat Pulldown...
Page 11 ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
Page 12 IFP1301-BOX1 Part List Item No. Description √ Base Frame ASSY Bottom Crossmember Lat Seat Frame ASSY Upright Frame ASSY Left Frame ASSY Right Frame ASSY Top Crossmember Hardware Owner's Manual Pro Lat Pulldown...
Page 13 IFP1301-BOX2 Part List Item No. Description √ Left Arm Frame ASSY Right Arm Frame ASSY Weight Horn ASSY Weight Plate Storage ASSY Foam Frame ASSY Handle Frame ASSY Seat Pad Foam Pad Pivot Shaft φ25 Weight Horn Rubber Donut...
Page 14 Tools Required Ratchet Wrench and Socket Ratchet Wrench and Socket Adjustable Wrench Adjustable Wrench Rubber Mallet Rubber Mallet Hex Key Wrench Set Hex Key Wrench Set Phillips Screwdriver Phillips Screwdriver Pro Lat Pulldown...
Page 15 Assembly STEP 1 Attach two Base Frame ASSY (#1) and the Lat Seat Frame ASSY (#3) to the Bottom Step 1: Assembly of the Main Frame Parts, Part 1 Crossmember (#2) using: six M10*100 HHB (#25) NOTICE twelve Φ11*Φ20*2 Flat Washer (#32) Do not tighten screws, bolts and nuts completely yet.
Page 16 3. Attach the Upright Frame ASSY (#4) to the Lat Seat Frame ASSY (#3) and the Top Tighten the bolts and nuts with the appropriate tools. Crossmember (#9) using: four M10*30 HHB (#27) four Φ11*Φ20*2 Flat Washer (#32) four Φ10 Spring Washer (#34) Note: Wrench Tighten Bolts and Nylon Lock Nuts. Pro Lat Pulldown...
Page 17 Assembly STEP 3 Step 3: 1. Attach the Left Arm Frame ASSY (#5) to the Left Frame ASSY (#7), and attach the Assembly of the Arm Frames and Handle Frames Right Arm Frame ASSY (#6) to the Right Frame ASSY (#8) using: Attach the left arm frame (5) to the left frame (7) and the right arm frame (6) to the right frame two Pivot Shaft Φ25 (#16) four Φ62*Φ10.5*3 Washer (#18)
Page 18 Ø13*Ø24*2.5 flat washers (30) and one lock nut (35). one M12*105 HHB (#24) two Φ13*Φ24*2.5 Flat Washer (#30) Tighten the bolts and nuts with the appropriate tools. one M12 Nylon Lock Nut (#35) Note: Wrench Tighten Bolts and Nylon Lock Nuts. Pro Lat Pulldown...
Page 19 STEP 5 1. Attach two Foam Pad (#15) to the Foam Frame ASSY (#12) using: four Plastic Washer (#22) two End Cap (#21) two Φ11*Φ20*2 Flat Washer (#32) Step 5: Assembly of the Foam Pads and Seat Pad two M10*30 BHCS (#29) Attach the two foam pads (15) to the foam frame (12) using two M10*30 screws (29), two 2.
Page 20 Sit on the seat pad and adjust the foam pad to the desired position. Pull the handles straight down. Pause slightly and then slowly return to the starting position. Spring Pin Weight Plate Pro Lat Pulldown...
Page 21 STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
Page 22 Cause Solution Squeaking & cracking Screw connections loosened Check lubricate screw noises or too tight connections* Uneven ground Align unit Unit wobbles Loose screw connections Tighten screw connections * With a grease-free silicone oil or silicone spray. Pro Lat Pulldown...
Page 23 Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;...
Page 24 Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat triceps rope weight block extension Pro Lat Pulldown...
Page 25 Enter the serial number in the appropriate field. Serial number: IFP1301 LAT PULLDOWN Brand / Category: OWNER'S MANUAL Taurus / multi gym CAUTION! Read all precautions and instructions in this manual before using this equipment. Model Name: Taurus Pro Lat Pulldown Article Number: TF-IFP1301...
Page 26 Hex Head Bolt M12*105 GB5780M10*100DHS20 Hex Head Bolt M10*100 GB5780M10*75DHS20 Hex Head Bolt M10*75 GB5781M10*30DHS20 Hex Head Bolt M10*30 GB70M10*30DHS20NL Socket Head Cap Screw M10*30 PNLM10*30*30DHS20NL Button Head Cap Screw M10*30 GB9512DHS2 Flat Washer Φ13*Φ24*2.5 DQ10DHS2C Flat Washer Φ11*Φ30*2 Pro Lat Pulldown...
Page 27 GB9510DHS2 Flat Washer Φ10*Φ20*2 GB9316DHS12 Spring Washer Φ16 GB9310DHS12 Spring Washer Φ10 NM12DHS2 Nylon Lock Nut M12 NM10DHS2 Nylon Lock Nut M10 NBS4DHS Hex Key S=4 NBS6DHS Hex Key S=6 NBS8DHS Hex Key S=8 NBS12DHS Hex Key S=12 Base Frame Frame ASSY (1) Grade No.
Page 28 Right Frame ASSY (8) Grade No. Part no. Description Qty. IFP13010800 Right Frame RS17000400 Rubber Bumper GB70M10*20DHS20NL Socket Head Cap Screw M10*20 BB1500 Limit Sleeve GB5780M12*155DHS20 Hex Head Bolt M12*155 GB9512DHS2 Flat Washer Φ13.5*Φ27*2 NM12DHS2 Nylon Lock Nut M12 Pro Lat Pulldown...
Page 29 Weight Horn ASSY (10) Grade No. Part no. Description Qty. 10.1 IFP13011000 Weight Horn 10.2 IFP12013400 Weight Horn Sleeve Φ50*250 10.3 IFP12013500 Weight Horn Plastic Cap Weight Plate Storage ASSY (11) Grade No. Part no. Description Qty. 11.1 IFP16131600 Weight Plate Storage 11.2 IFP12013400 Weight Horn Sleeve Φ50*250...
Page 30 Exploded View and Parts List Exploded Drawing Overall Pro Lat Pulldown...
Page 31 Exploded View and Parts List Base Frame ASSY Lat Seat Frame ASSY Exploded View and Parts List Upright Frame Left Arm Frame ASSY Part No. Description Grade No. IFP13010100 Base Frame IFP12013300 Plastic Horizontal Rectangular Shoe GB17880.5M6*16.5DS17 Flat Head Hexagon Riveted Nut M6*16.5 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Part No.
Page 32 Flat Washer Φ13.5*Φ27*2 NM12DHS2 Nylon Lock Nut M12 Part No. Description Grade No. IFP13010800 Right Frame RS17000400 Rubber Bumper Pro Lat Pulldown GB70M10*20DHS20NL Socket Head Cap Screw M10*20 BB1500 Limit Sleeve GB5780M12*155DHS20 Hex Head Bolt M12*155 GB9512DHS2 Flat Washer Φ13.5*Φ27*2...
Page 33 Exploded View and Parts List (11) (12) Weight Plate Storage ASSY Foam Frame ASSY Part No. Description Grade No. 11.1 IFP16131600 Weight Plate Storage 11.2 IFP12013400 Weight Horn Sleeve Φ50*250 11.3 IFP12013500 Weight Horn Plastic Cap Part No. Description Grade No. 12.1 IF93020800 Foam Frame...
Page 34 Exploded View and Parts List (13) Handle Frame ASSY Part No. Description Grade No. 13.1 IFP13011300 Handle Frame 13.2 V39600 Aluminium Grip Cap Φ25.4 13.3 V39500 Aluminium Grip Ring Φ25.4 13.4 YZGB7710-32*3.2N19NL Socket Set Screw 10-32*3.2 13.5 FE97203100 Φ25 Grip Pro Lat Pulldown...
Page 35 WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
Page 36 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. Pro Lat Pulldown...
Page 37 CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� info@fitshop.dk info@fitshop.co.uk �� technik@fitshop.de �� Åbningstider kan findes på You can find the opening ��...
Page 38 Visit us also on our social media platforms or our blog! Pro Lat Pulldown...
Page 40 Taurus Pro Lat Pulldown...
