JSI Seat Linking Inline Table Install Instructions

Seat Linking Inline Table
Install Instructions
Tools Required
•
#2 Phillips Head
•
Drill
Hardware Included
•
4 - Locknut
•
4 - Split Lock Washer
•
8 - Pan Head Screw
Installation
1. Locate all objects included in box.
2. Turn chairs so the back is on the ground and the bottom of the unit is
accessible (Figure A).
3. Line one of the inline brackets with the holes on the frame of Chair A.
4. Ensure the bracket is facing the correct direction.
5. Using 2 x pan head screws and 2 x locknuts to secure the bracket to
Chair A (Figure B).
6. Repeat on Chair B, but on opposite side of chair (Figure B).
7. Line up holes on inline table with holes on inline brackets (Figure C).
8. Use 4 x split lock washer and 4 x pan head screw to secure inline table
to inline brackets (Figure C).
9. Stand unit upright.
2/13/2024

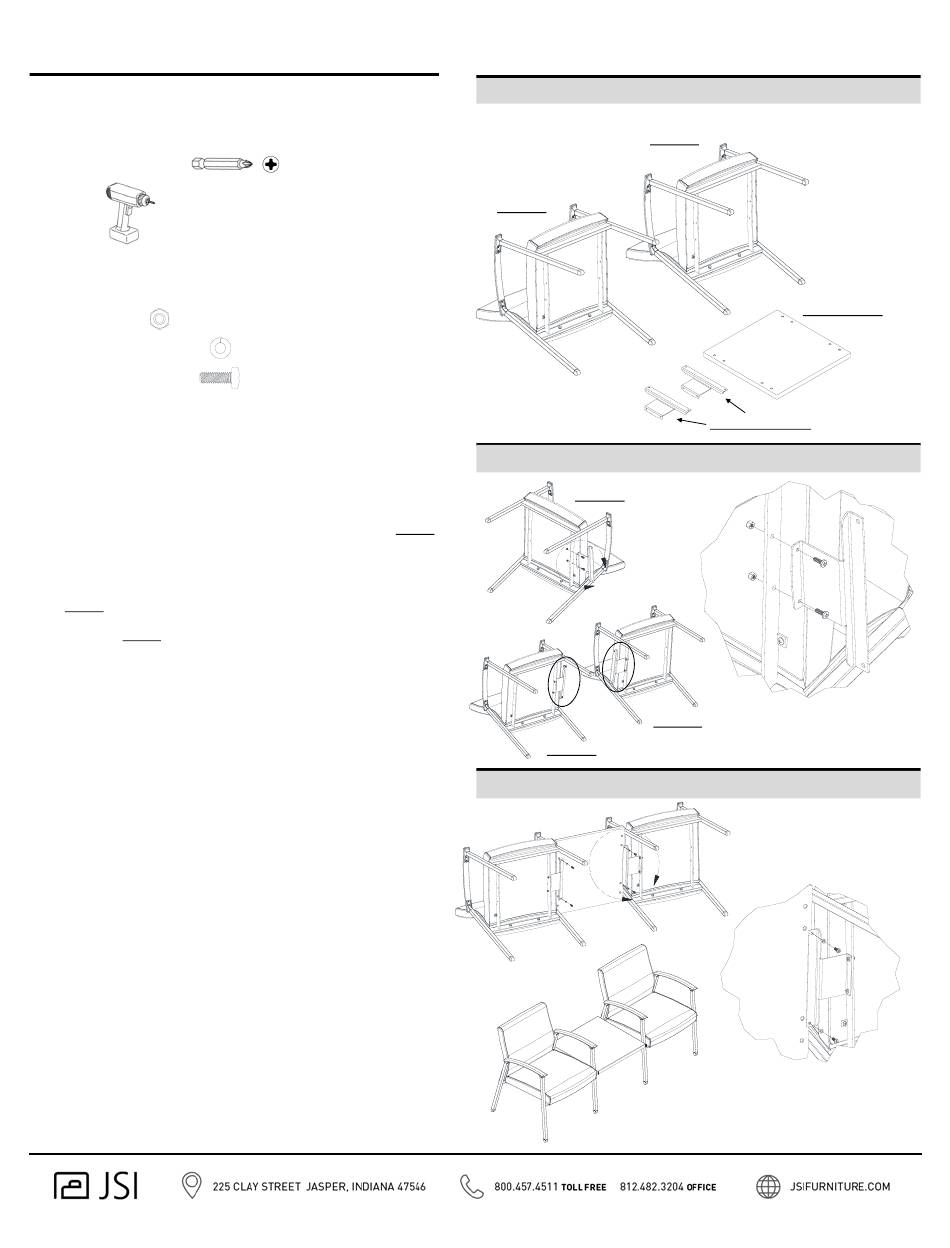

Figure A
