Recommended Tools
#2 Phillips Head
Hardware Used
• #14 x 3/4 " Pan Head Wood Screw, 8 per leg
• #8 x 5/8 " Pan Head Wood Screw, when applicable

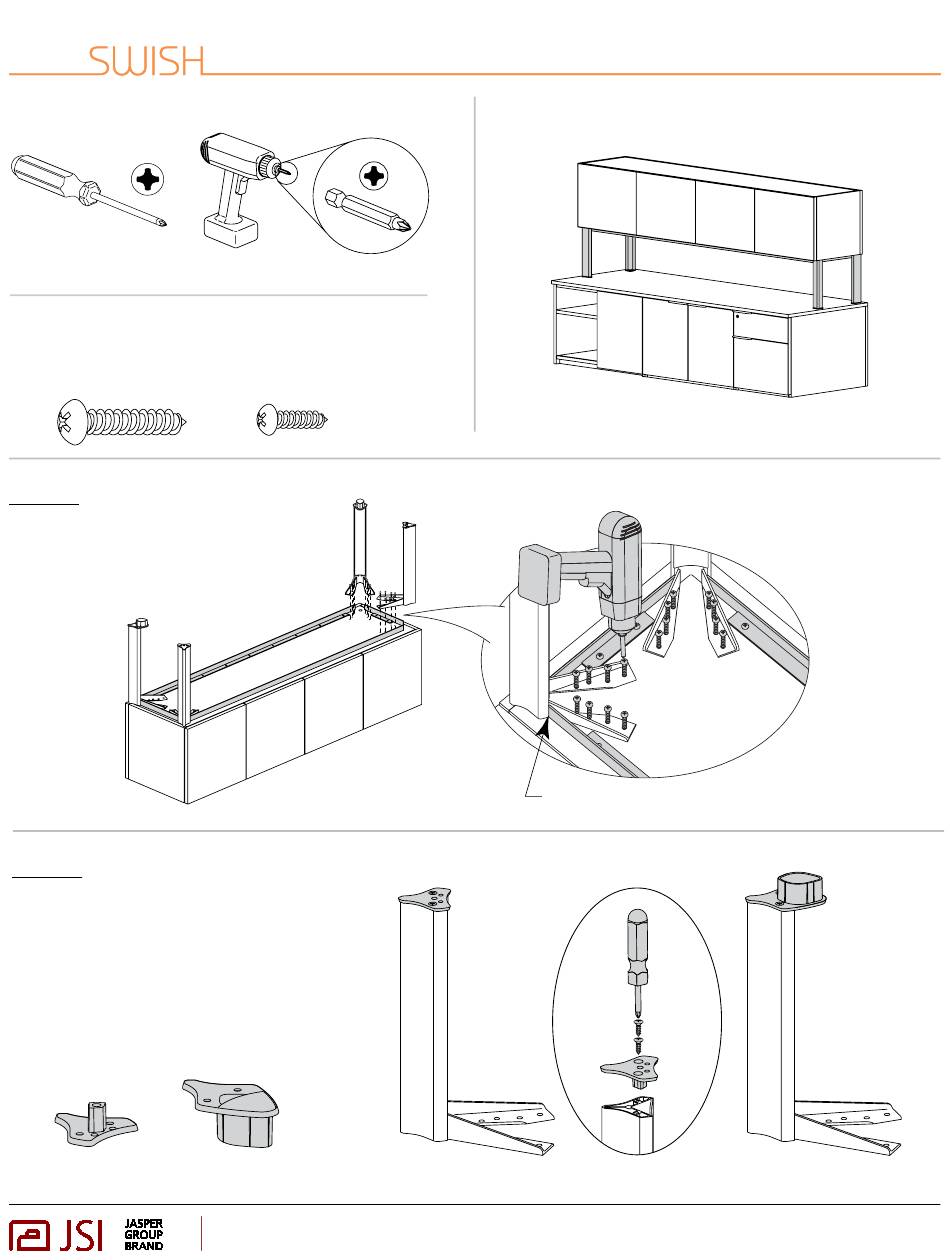

Step 1
Attach Supports To Overhead
• #14 x 3/4 " Pan Head Wood Screw,
8 per leg support
Step 2
Determine Support Foot Needed
For Grommet or No Grommet
• Support legs are shipped with no
grommet foot. Foot can be switched by
removing two screws.
• When no grommet feet are used on either
support leg, the support legs will need to
be fastened to the bench top. (See Step 3).
With Grommet
#3 Phillips Head
No Grommet
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548
Insert supports between metal trim
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
Overhead Supports
Page 1 of 2
Form No. INST-10003
