CONNECT
Recommended Tools
Screw Gun
#2 & #3 Phillips Screw Drivers
Package Contents
Upholstered Unit

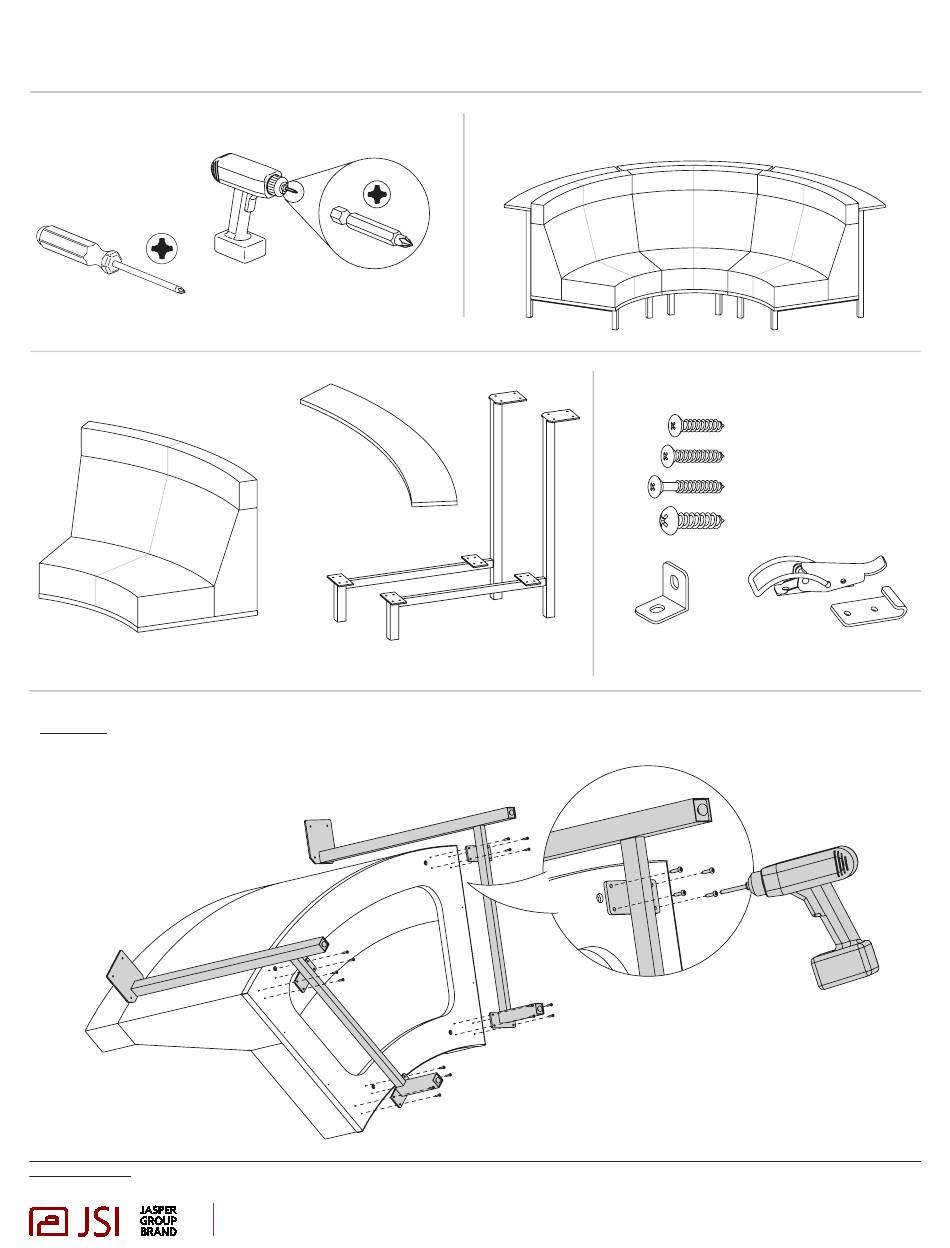

Step 1
Attach the legs to the bottom of the uphol-
stered unit using 1 inch long large wood
screws. The base will have pilot holes to locate
the screws.
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
#2 & #3 Phillips Head Bits
Stand Up
Surface
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548
Unit Assembly with Stand Up Surface
Stand Up Surface
Legs
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
Hardware Used
3/4 " Wood Screw
7/8 " Wood Screw
1-1/4 " Wood Screw
1 " Zinc Wood Screw
L-Bracket
Linking Hook & Latch
Page 1 of 3
Form No. INST-CT002
5/1/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JSI CONNECT
Summary of Contents for JSI CONNECT
- Page 1 Installation Instructions CONNECT Page 1 of 3 Unit Assembly with Stand Up Surface Recommended Tools Screw Gun #2 & #3 Phillips Head Bits #2 & #3 Phillips Screw Drivers Package Contents Hardware Used 3/4 ” Wood Screw Stand Up 7/8 ” Wood Screw Surface 1-1/4 ”...
- Page 2 Installation Instructions CONNECT Page 2 of 3 Unit Assembly with Stand Up Surface Step 2 (continued) Attach the stand up surface to the top of the legs using 7/8” long black wood screws. The work surface will have pre- drilled pilot holes to locate the screws.
- Page 3 Installation Instructions CONNECT Page 3 of 3 Unit Assembly with Stand Up Surface Step 4 (continued) Attach the two (2) linking latches and two (2) linking hooks using 1-1/4” long black wood screws as shown. There will be a predrilled hole for each piece of hardware for the first screw.
