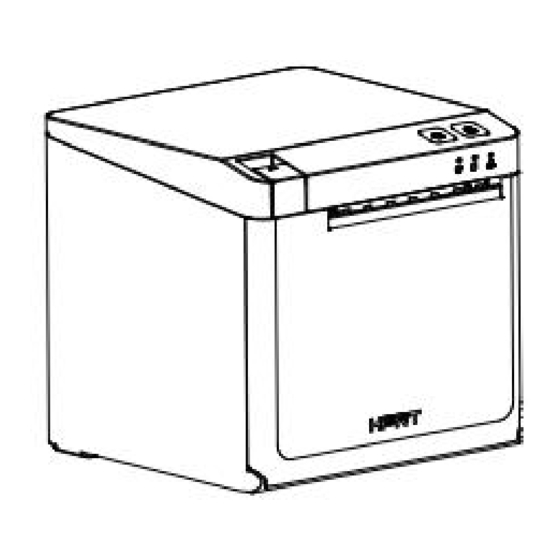

HPRT TP807 User Manual

Thermal receipt printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

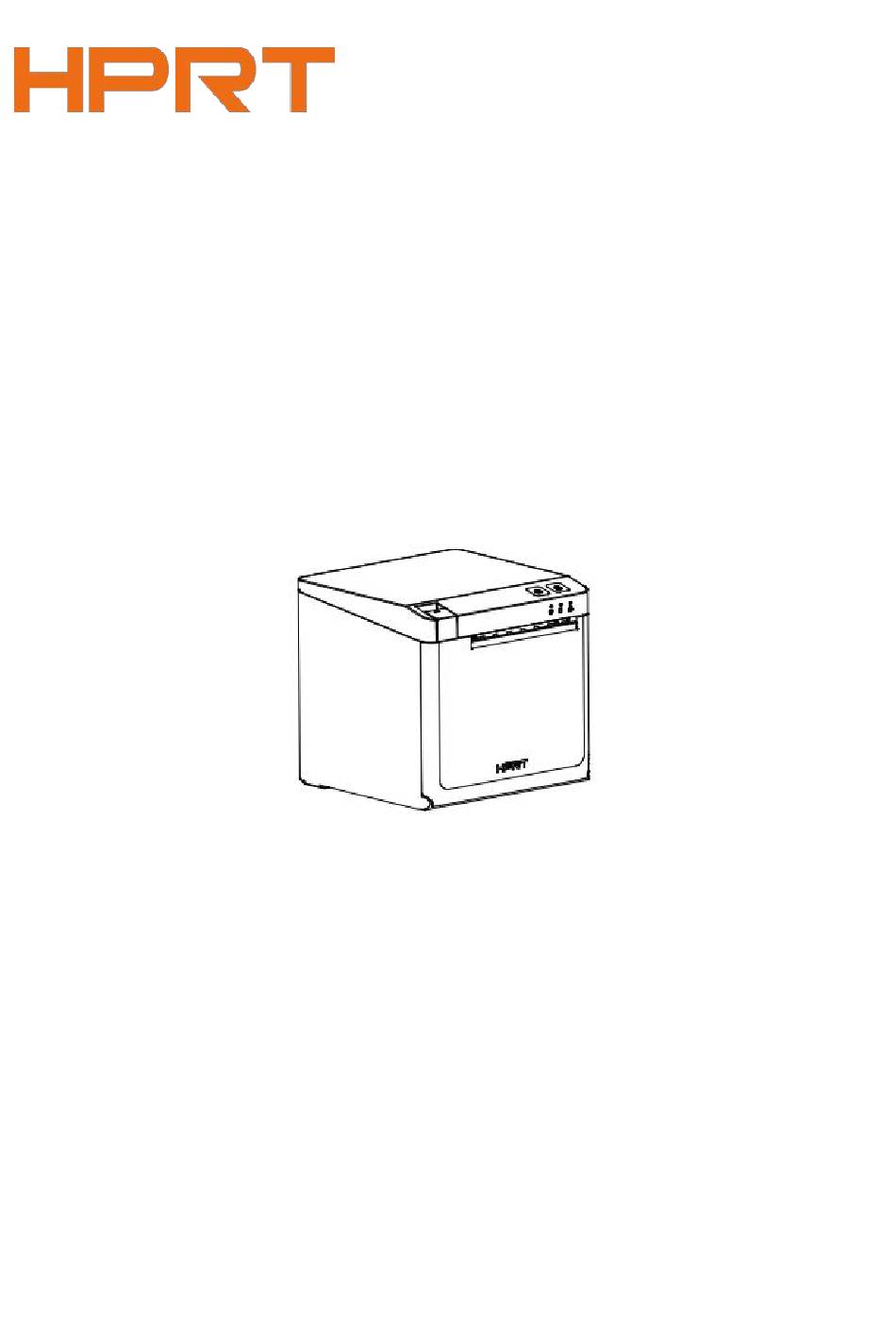

Thermal Receipt Printer
TP807
User Manual
Manufacturer: Xiamen Hanin Electronic Technology Co., Ltd.
Address: No. 96, Rongyuan Road, Tong'an District, Xiamen, China 361100
E-mail: support@hprt.com
Web: www.hprt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP807 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HPRT TP807

Summary of Contents for HPRT TP807

  • Page 1 Thermal Receipt Printer TP807 User Manual Manufacturer: Xiamen Hanin Electronic Technology Co., Ltd. Address: No. 96, Rongyuan Road, Tong’an District, Xiamen, China 361100 E-mail: support@hprt.com Web: www.hprt.com...

  • Page 2: Table Of Contents

    Content Statement ...............................1 Important Safety Instructions ........................ 2 1 OVERVIEW ............................4 1.1 Introductions ..........................4 1.2 The Main Features ........................4 2 GETTING STARTED ..........................5 2.1 Packing List ..........................5 2.2 Appearance and Components ....................6 3 SPECIFICATION ............................ 7 3.1 Printer Specification .........................7 3.2 Printing Media Specification ....................9 3.2.1 Continuous Thermal Paper Specification ..............9 3.2.2 Notices ..........................
  • Page 3 TP807 User Manual 8 DOWNLOAD SOFTWARES FROM HPRT WEBSITE ................26 9 UTILITY TOOL FOR POS INSTRUCTION ....................27 9.1 Utility Tool Installation ......................27 9.2 Utility Tool Using ........................32 9.2.1 Add/Modify/Delete/Connection Printer ..............32 9.2.2 Functions ........................39 9.3 Firmware Update ........................82 10 WINDOWS DRIVER ..........................84...

  • Page 4: Statement

    TP807 User Manual Statement This manual content may be altered without permission, and Xiamen Hanin Electronic Technology Co., Ltd. reserves the rights to make changes without notice in technology, spare parts, hardware and software of the products. If more information is needed about the products, please contact Xiamen Hanin Electronic Technology Co., Ltd.

  • Page 5: Important Safety Instructions

    TP807 User Manual Important Safety Instructions 1. Safety Warning Warnings: The print head will become very hot during printing; avoid contact with the print head after printing has finished. Warnings: Do not touch the printer head and connector in case static damage the printer head.
  • Page 6 TP807 User Manual 3.Other Precautions The copyright for this user manual and various other manuals is property of our company. Any copying or conversion into electronic form and saving of this material without the express written permission is strictly prohibited. Use of the information contained in this manual is not subject to any patent liability.

  • Page 7: Overview

    TP807 User Manual 1 OVERVIEW 1.1 Introductions TP807 is a thermal receipt printer, featured by high print quality, high print speed, high stability, etc. It can be used in commercial POS system, food industry and occasions which need real-time field print receipts.

  • Page 8: Getting Started

    TP807 User Manual 2 GETTING STARTED 2.1 Packing List After receiving your printer, please check for possible shipping damage: 1. Inspect the outside of both the box and the printer for possible damage. 2. Check whether you have received the following accessories together with the printer, if there are any items missing, please contact your local dealer.

  • Page 9: Appearance And Components

    TP807 User Manual 2.2 Appearance and Components  Front  Rear Note: Wi-Fi and Bluetooth interfaces are embedded in the printer.

  • Page 10: Specification

    TP807 User Manual 3 SPECIFICATION 3.1 Printer Specification Table3-1 General Specification (1/2) Item Parameter Printing Method Direct thermal line printing Resolution 203DPI, 8dots/mm Printing Printing Width 72mm Parameter Print Speed Max. 260mm/s Interface USB, Serial, Ethernet, Cash drawer, Wi-Fi, Bluetooth...
  • Page 11 TP807 User Manual Table3-1 General Specification(Continued) (2/2) Item Parameter UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODABAR, CODE128, CODE93 Barcode PDF417, QR code Support varied density bitmap and download bitmap printing Graphics Max size of each bitmap is 40K, the total size of bitmap is 256k.

  • Page 12: Printing Media Specification

    TP807 User Manual 3.2 Printing Media Specification 3.2.1 Continuous Thermal Paper Specification Paper Type : Specified Thermal Paper Paper Width     Paper Outer Diameter : Max. 83 mm Paper Thickness : 0.056 ～ 0.13m Paper Type Manufacturer FD210,PD150R,PD160R OJI Paper CO.,LTD.

  • Page 13: Printing And Cutting Position

    TP807 User Manual 3.3 Printing and Cutting Position 3.3.1 Printing position  mm Print Paper  mm Print Paper 3.3.2 Cutting Position Type Paper Cutting Position(L1) TP807 11.6mm...

  • Page 14: Installation And Usage

    TP807 User Manual 4 INSTALLATION AND USAGE 4.1 Media Loading 4.1.1 Paper Confirmation 1) When using 80mm(width) roll paper, take down the paper guide of both sides. 2) When using 58mm(width) roll paper, insert the paper guide to each side.
  • Page 15 TP807 User Manual...

  • Page 16: Led Indication And Beeper

    TP807 User Manual 4) Tear the extra paper in the direction of printer. Notes: 1) According to the paper size to adjust the paper guide; 2) Make sure the paper inside is at tight status, or it will cause paper jam or other trouble.

  • Page 17: Power Connection

    TP807 User Manual 4.3 Power Connection 1) Connect power adapter to printer; 2) Connect power adapter to power cord; 3) Plug the other side of power cord into the socket outlet. Pay attention about disconnecting or connecting the power adapter at right method, or it’s easy to cause damage.
  • Page 18 TP807 User Manual Notes: 1) Please only use the power adapter recommended by supplier or equivalent products; 2) When disconnecting the power adapter plug, hold plug connector housing, and avoid pulling the cable directly; 3) Avoid dragging the power adapter cable, otherwise it will damage the cables, causing fire and shock;...

  • Page 19: Interface Cable Connection

    TP807 User Manual 4.4 Interface Cable Connection 1) Make sure the printer's power switch is turned off; 2) Put the interface cable into the matched interface and fixed with screws (or spring) on the plug; 3) Connect the other end of the interface cable to the host.

  • Page 20: Wi-Fi Settings

    TP807 User Manual 4.6.2 Wi-Fi Settings Printer factory default Wi-Fi mode is AP mode with IP address “192.168.1.1” and SSID “POS_WIFI”. After the PC or mobile phone is connected with printer successfully, users can set the parameters through utility tool.

  • Page 21: Interfaces

    TP807 User Manual 5 INTERFACES TP807 supports cash drawer interface and many other various communicate interfaces, such as Serial interface, USB interface, Ethernet interface, Wi-Fi and Bluetooth interfaces. 5.1 USB Figure 5-1 SIGNAL NAME VBUS...

  • Page 22: Serial Interface

    TP807 User Manual 5.2 Serial Interface Figure 5-2 SIGNAL NAME...

  • Page 23: Ethernet Interface

    TP807 User Manual 5.3 Ethernet Interface PIN NO. Signal Name Note: The printer is equipped with an Ethernet interface, and use the network connection router, switch and other network communication equipment which meet RJ45 interface standard. When connecting directly with PC, it is suggested that the cross network line in accordance with...

  • Page 24: Cash Drawer Interface

    TP807 User Manual 5.4 Cash Drawer Interface Figure 5-4 PIN NO. Signal Name Drawer 1 DRSW Drawer 2 Electrical characteristics Driving voltage：DC 24 V  Driving current：Maximum 0.8 A ( In 510 ms)  Drawer check signal：“L” = 0～0.5 V...

  • Page 25: Power Supply Interface

    TP807 User Manual 5.5 Power Supply Interface Figure 5-5 PIN No. Signal Name +24V SHELL Printer end: Unetop DC-002 or other products of the same type. User end: Unetop DP-002 or other products of the same type.

  • Page 26: Troubleshooting

    TP807 User Manual 6 TROUBLESHOOTING Your printer is very reliable, but occasionally problems may occur. This chapter provides information on some common problems you may encounter and how to solve them. If you encounter problems that you can not resolve, contact your dealer for assistance.

  • Page 27: Problems Emerge During The Paper Cutting

    TP807 User Manual 6.4 Problems Emerge During the Paper Cutting Problem Description Probable Reason Resolution Cutter abrasion, Replace the cutter insufficient cutting Worn gear and worn Cutter jam, the Replace the worn gear and worn wheel wheel abrasion movable cutter...

  • Page 28: Printer Cleaning And Maintenance

    TP807 User Manual 7 PRINTER CLEANING AND MAINTENANCE Print quality might be degraded by dust, foreign substance, adhesive substance, or other polluted materials stuck on the printer head or inside the printer. When printer is dirty, clean the print head as follows: ※...

  • Page 29: Download Softwares From Hprt Website

    TP807 User Manual 8 DOWNLOAD SOFTWARES FROM HPRT WEBSITE Under URL http://www.hprt.com/Downloads.html, take the following steps to download software from HPRT website: 1) Choose model name of product -> Choose type -> Choose system 2) Click “download”...

  • Page 30: Utility Tool For Pos Instruction

    TP807 User Manual 9 UTILITY TOOL FOR POS INSTRUCTION Utility Tool is applicable to the following operating system: Microsoft Windows 10 (32 bit/64 bit)  Microsoft Windows 8 (32 bit/64 bit)  Microsoft Windows 7 SP1 (32 bit/64 bit) ...
  • Page 31 TP807 User Manual 3) Select destination location to install the HPRT Utility Tool. Click “Next”.
  • Page 32 TP807 User Manual 4) Select start menu folder. Click “Next”.
  • Page 33 TP807 User Manual 5)Click “Install”.
  • Page 34 TP807 User Manual 6) Click “Finish”. HPRT Utility Tool is installed successfully.

  • Page 35: Utility Tool Using

    TP807 User Manual 9.2 Utility Tool Using 9.2.1 Add/Modify/Delete/Connection Printer Warning: In different operating system, screen has a little difference. Please operate it according to the tips. Take TP807 (Windows 7) for example.  Add printer 1) Click “Add Printer”.
  • Page 36 TP807 User Manual 2) Choose the appropriate printer type and port. Then click “OK”. (Take TP807 for example) TP807...
  • Page 37 TP807 User Manual  Modify printer 1) Choose the printer you want to modify in the list. Click “Modify Printer”. TP807 TP807...
  • Page 38 TP807 User Manual 2) Choose the new printer and new port. Then click “OK”. TP807 3) The new printer is added successfully.
  • Page 39 TP807 User Manual  Delete printer 1) Choose the printer you want to delete in the list and click “Delete Printer”. TP807 TP807 2) Click “Yes”, then the printer is deleted.
  • Page 40 TP807 User Manual  Connection Test Make sure printer is connected to computer and it is power on. Choose the printer. Click “Connection Test”. 1） TP807 TP807...
  • Page 41 TP807 User Manual 2) If the connection is successful, it will appear the following window. If the connection is unsuccessful, please connect the printer with computer. Note:  Make sure printer is connected to computer and power on.  Make sure printer is loaded with paper.

  • Page 42: Functions

    TP807 User Manual 9.2.2 Functions Printer Test contains the following items: ▼ Printer Test ▼ Common Test ▼ Manage Images ▼ Download Image in Compatible Mode ▼ Code Page Setting ▼ Download Fonts ▼ Parameter Setting ▼ Advanced Settings 9.2.2.1 Printer Test 1) Self Test Click “Self Test”...
  • Page 43 TP807 User Manual 2) Full Cut Test Click the “Full Cut Test” and the paper will be cut automatically. Cutting method is full-cutting. The paper would be falling down from the paper outlet after cutting. 3) Partial Cut Test Click the cutter test and the paper will be cut automatically. Cutting method is partial cut (Partial cut: Not all cut off, leave a connection point between the two sheets of paper).
  • Page 44 TP807 User Manual Note: The language option in the lower right corner is checked according to the input text. (For ▲ example: The input is Simplified Chinese, the language is checked for Simplified Chinese, the printer prints the input text according to the setting options, and if you check other languages,...
  • Page 45 TP807 User Manual Click the PDF417 mode. ▲Columns: 0~30 ▲Rows: 0~90 ▲Width of the module: 2~6 The larger the module value, the wider the width of the printed PDF417 barcode, and the smaller the opposite. ▲Row height: 2~8 The larger the module value, the...
  • Page 46 TP807 User Manual 9.2.2.2 Command test In the command test, you can send command to the printer. Input text or hexadecimal data. Select a file or enter a command in the input box. 1）There’re two ways to load files. You can choose the way you want.
  • Page 47 TP807 User Manual 2）Click “Send by Text”, input text content.
  • Page 48 TP807 User Manual ▲Sending Recycle: When the interval is set to 3000ms (you can set the interval as needed), then click “Send”, the printer starts to recycle printing. Click “Stop” to stop the recycle printing.
  • Page 49 TP807 User Manual 2） Click “Send by Hex”, input the content. (Convert text to HEX or send ESC command)
  • Page 50 TP807 User Manual 9.2.2.3 Manage Images...
  • Page 51 TP807 User Manual ● Download image Click "Download" to add the image, if you want to print the picture, set the print location before clicking "Download mode of G" to print the picture. (It is recommended to use a picture in BMP format) ●...
  • Page 52 TP807 User Manual Note: Total memory for bitmap is 256K.
  • Page 53 TP807 User Manual ● Delete Image Note: each time click "Download mode of G", an image list number will be generated. Click the image list, select "Delete selected image" will delete the image, click "Delete all Images", without clicking the list option to delete all the images in the list.
  • Page 54 TP807 User Manual 9.2.2.4 Code Page Setting Select the code page from the list and click “Set”. Note: This code page is only valid in multiple languages.
  • Page 55 TP807 User Manual 9.2.2.5 Download Fonts to Printer Select the font from the existing file and click "Download". Note: After downloading the font successfully, you need to restart the printer to take effect.
  • Page 56 TP807 User Manual 9.2.2.6 Parameter Setting You can set “Arabic Character Transform”, “Language Mode”, “Signal light flashing time” and “UTF-8 input mode”.
  • Page 57 TP807 User Manual 9.2.2.7 Advanced Setting The advanced settings contain the following items.
  • Page 58 TP807 User Manual  Function Setting...
  • Page 59 TP807 User Manual  AD Settings: Detect Paper AD Value: click “Read” and you can see the default value and cannot be input. Set AD threshold value: You can input the value, and the ideal value is the AD value plus 300, and the default value is 2100.
  • Page 60 TP807 User Manual  Reduction Print Setting Select the item and click "Settings". Choose the item and click “Setting”. Reduction Of Excessive Top Margin: When the printer is in the "off" state, the blank part at the top of the printed paper is larger than the blank part at the top of the paper printed in the "on"...
  • Page 61 TP807 User Manual  DIP Setting Click "Read" to get the printer parameters, click "Write" to send the modified parameters to the printer.
  • Page 62 TP807 User Manual After the serial port parameter is set, click "Set". Note: When DIP setting is set in soft, the DIP switch in the bottom of printer is disable. After setting the DIP successfully, you need to restart the printer before using it.
  • Page 63 TP807 User Manual ● Printer hardware setting 1）Print Density: Light, Medium, Standard, Dark (default "standard" level) The print density value varies according to the paper material and it can be adjusted to suit your needs. 2）DIP Mode: 180/203DPI (default "203 DPI") The printer supports both of these resolutions.
  • Page 64 TP807 User Manual ● Modify the COM setting 1） After setting the parameters as required, click "Write" and restart the printer. 2） After restarting the printer, open the main menu screen of the tool and click "Modify Printer". TP807 TP807 3）Select the port category "COM"...
  • Page 65 TP807 User Manual  Paper Width Setting 1) 58mm（360dot） 2) 58mm（384dot） 3) 58mm（416dot） 4) 80mm（512dot） 5) 80mm（576dot） Note: Select the paper width above according to the paper print width.
  • Page 66 TP807 User Manual  Ethernet Setting Note: This setting is only available for models with Ethernet functionality. This mode is divided into “Auto Assignment IP” and “Static IP Mode”, select one of the modes to connect as needed. Note: IP addresses can be obtained from the Self-test page.
  • Page 67 TP807 User Manual ● Static IP Mode 1) Change the printer IP address so that the printer IP address (such as: 192.168.0.33) is the same segment as the host IP address (such as: 10.0.21.89). Here is the illustration: Figure ￭ Printer IP Address...
  • Page 68 TP807 User Manual Figure ￭ Host IP Address 2）Set the same network segment. Figure ￭ Printer IP Address...
  • Page 69 TP807 User Manual ● Auto Assignment IP This mode automatically assigns the IP address to the printer. When the settings are complete, click "Write", then restart the printer.
  • Page 70 TP807 User Manual  USB Port Setting Click "Virtual serial port" setting and restart the printer.
  • Page 71 TP807 User Manual ● Check the Virtual Serial Port 1） Right-click the computer and select “Manage”. 2） Click "Device Manager" to view the virtual port. (such as: COM7)
  • Page 72 TP807 User Manual 3) Return to the printer utility and click "Modify Printer". TP807 TP807...
  • Page 73 TP807 User Manual 4）Change the port to "COM7".
  • Page 74 TP807 User Manual  Black Mark Setting When using black mark paper, the black mark can be set, and the printer will automatically locate the black mark position. 1）Print start position (>=-14mm) >=14mm: the start position of printing is at least 14mm from the bottom edge of the black mark paper.
  • Page 75 TP807 User Manual  Bluetooth Setting Note: This setting is only available for models with Bluetooth functionality. In the below window, type in the new Bluetooth name and password, then click “Set” and restart the printer to take it into effect.
  • Page 76 TP807 User Manual  Wi-Fi Firmware Update 1) Click “WiFi Firmware Update”. 2) Click “...” to choose file and click “Update”.
  • Page 77 TP807 User Manual  Cut Pper Config 1）Cut paper after the cover is closed: the printer automatically cuts the paper after closing the cover. 2）Do not cut paper after the cover is closed: the printer does not automatically cut the paper after closing the cover.
  • Page 78 After that, close the cover, so the printer will automatically restart and print out the information about successful mode switching. Note: Simultaneous use of Ethernet and Wi-Fi is not supported. The following steps take TP807 (under WINDOWS 10) for example, and the setting is only available for those models with Wi-Fi function.
  • Page 79 TP807 User Manual 1. Click “Read” to obtain the current status of printer. 1. Wi-Fi Module supports AP mode and STA mode, and default as AP mode. ■ Under AP mode, printer will be used as a wireless network access point, computer or other mobile devices can connect to this Wi-Fi.
  • Page 80 TP807 User Manual...
  • Page 81 TP807 User Manual ■ When using the STA mode, take the printer as a terminal. The PC or mobile devices and printer need to be on the same LAN. ● Choose STA under Wi-Fi mode, the interface is shifted to the following screenshot:...
  • Page 82 TP807 User Manual ● Click “Scan”, choose a connectable “hot spot” from SSID options. type in the password of Wi-Fi that you want to connect to. ● Click “Set”. After it is set successfully, the printer would restart automatically. SSID The SSID name that is chosen after scanning “hot spot”...
  • Page 83 ● After completing the setting, connect the computer to the Wi-Fi that the printer connects to, click “Modify Printer”, choose “TCP/IP”, and set the IP address the same as the printer’s IP address, then click “OK”. (Following Screenshot takes TP807 as an example) TP807 I...
  • Page 84 Wi-Fi parameter by the following way 1) or 2): 1) For TP807 (with built-in Wi-Fi module), shortly press the power button five times, so that the Wi-Fi parameter would be reset. The printer would restart automatically, so the reset is taken into effect.

  • Page 85: Firmware Update

    TP807 User Manual 9.3 Firmware Update 1）Click “FW Update”. TP807 TP807...
  • Page 86 TP807 User Manual 2）When the device appears "Printer", select the Dfu file. 3）Click “Update”. 4）Update success. 5）Restart the printer.

  • Page 87: Windows Driver

    (for example TP807), then you can download Windows Driver and other items. The Windows Driver installation file name is HPRT_POS_Printer_Driver-v-X.X.X.X.exe X.X.X.X indicates the version number, which is updated from time to time.

  • Page 88: Windows Driver Installation

    TP807 User Manual 10.4 Windows Driver Installation Warning: Under different operating system, the screen has slight difference. Please operate it according to the tips. Take TP807 (Windows 7) as example. Double click Windows Driver. Choose “I accept the agreement” and click “Next”.
  • Page 89 TP807 User Manual Click “Next”...
  • Page 90 TP807 User Manual Choose the matched type and port (USBxxx is for USB port, COMx is for serial port, LPTx is for parallel port). Choose the type and port of driver, such as “COM1” as port. Click “Next”. TP807 TP807 NOTE: If printer is already connected with computer by USB port, it only needs to click “Install”,...
  • Page 91 TP807 User Manual Click “Finish”. POS printer driver is installed successfully. After installation, the icon will be found in “Start” → “Devices and Printers”. TP807 NOTE: If you already installed the driver (No matter what kind of port), when you connect the...

  • Page 92: Detailed Windows Driver Setting

    TP807 User Manual 10.5 Detailed Windows Driver Setting 10.5.1. Printing Preferences 1. Click ”Start”→“Devices and Printers”. Right click “TP807” and choose “Printing preferences”.
  • Page 93 TP807 User Manual 2. According to the different needs, choose “Paper”\“Offset”\”Rotate”\”Effect”\”Copies” in “Page”. 1） Paper 2） Offset...
  • Page 94 TP807 User Manual ● Click “Manager”, add or delete paper. ● Click “Advanced” to set “Save Paper”, “Cut Paper”, “Feed Paper”, “Cash Drawer”, “Custom Command”, “Logo”, “Buzzer”, “Code Page”. 1) Save Paper...
  • Page 95 TP807 User Manual 2) Cut Paper Cut Distance: 0/5/10/15/20mm (End Document)
  • Page 96 TP807 User Manual 3）Feed Paper Feed Mode: Feed Automatically/Cut Automatically/Cut Automatically Per Page/None Feed Distance: 0/5/10/15/20mm (End Document)
  • Page 97 TP807 User Manual 4) Cash Drawer...
  • Page 98 TP807 User Manual 5) Logo Note: This setting need to be set in utility, here are the steps: 1) Open the utility and click "Manage Images". TP807 TP807...
  • Page 99 TP807 User Manual 2）Click “Download”. 3）Click "Add" to add a logo. (BMP format is recommended)
  • Page 100 TP807 User Manual 4）Select the print location, and then click "Download mode of G". (Such as: left print) 5）Return to image list to view the image number. Note: each time click "Download mode of G", an image list number will be generated.
  • Page 101 TP807 User Manual 6) Select Printer properties in Devices and Printers, then click “Preference”. TP807 TP807...
  • Page 102 TP807 User Manual 7）Click the “Advanced”, then click “Logo”.
  • Page 103 TP807 User Manual 8）Set the printing time to print and click "OK". (Such as: Start Document) 9）Return to the logo setting in driver, also select "Print left". 10）Set the key Code according to the image number. (Such as: 0 0)
  • Page 104 TP807 User Manual 11) Then click “OK”.
  • Page 105 TP807 User Manual 12）Click “Print Test Page” to view the printing effect. TP807 TP807...
  • Page 106 TP807 User Manual 6) Buzzer Buzzer times: 0/1/2/3/4/5 Buzzer Duration: 0.0/0.5/1/1.5/2/2.5/3.0 Sec Buzzer Interval: 0.0/0.5/1/1.5/2/2.5/3.0 Sec Note: this setting must be operated in Utility.
  • Page 107 TP807 User Manual 7) Code Page 8) Error Reprint...
  • Page 108 TP807 User Manual 3. Click “Watermark”. Set watermark to print (BMP format is recommended) and click OK to save...
  • Page 109 TP807 User Manual 4. Click “Halftone” to set the halftone.
  • Page 110 TP807 User Manual...
  • Page 111 TP807 User Manual 5. Set up the “Barcode” Assuming the font type of the main document is “Italics”, if you want to convert the data “123456”to the barcode printing, the steps are as follows: ● Sets the data "123456" font type to a different font from the main document. Such as: Arial.
  • Page 112 TP807 User Manual Open the Preference. ● If the document is open, you can set it in the document: file-print-preferences. TP807...
  • Page 113 TP807 User Manual 1）Add Barcode firstly.
  • Page 114 TP807 User Manual 2）Set the “Font Name” and the “Barcode Option”.
  • Page 115 TP807 User Manual 3) Click the “Printer Setting”. ● Choose the “Display Language for Properties”...
  • Page 116 TP807 User Manual Turn on the “Font Substitution”, select the system text need to be replaced (for example, Arial), ● and then select the font you want to replace (for example, 01) and click Settings, and the replacement font will display "01".
  • Page 117 TP807 User Manual...
  • Page 118 TP807 User Manual...
  • Page 119 TP807 User Manual...
  • Page 120 TP807 User Manual ● If you do not have a barcode set, the action is as follows: 1） Suppose you change the size of the data "123456", for example: 2） Set the Printing preferences. TP807...
  • Page 121 TP807 User Manual 3）Click the “Printer Setting”. ● Choose the “Display Language for Properties”. 4）Turn on the “Font Substitution”.
  • Page 122 TP807 User Manual 5）Select the “System Font”, for example: Arial.
  • Page 123 TP807 User Manual 6）Select the font to that you went to replace.
  • Page 124 TP807 User Manual 7）Click “Setting”.
  • Page 125 TP807 User Manual...

  • Page 126: Other Settings

    TP807 User Manual 10.5.2. Other Settings Click ”Start”→“Devices and Printers”. Right click “TP807” and choose “Printer properties”. Choose “General”, click on “Print Test Page”, then it will print the current settings. TP807 TP807...
  • Page 127 TP807 User Manual Setting the “Ports” TP807 TP807...
  • Page 128 TP807 User Manual Click “Advanced” to set the printing time. TP807...

  • Page 129: Uninstall Windows Driver

    TP807 User Manual 10.6 Uninstall Windows Driver 1) Double click Windows Driver. 2) Choose “Uninstall printer driver”, then click “Next”...
  • Page 130 TP807 User Manual 3) Choose “TP807”, then click “Next” TP807...

  • Page 131: Specification

    TP807 User Manual 10.7 Specification Resolution: TP807: 203×203dpi Paper Size: 70*297mm 72*420mm 72*3276mm...

  • Page 132: Appendix

    TP807 User Manual APPENDIX FCC-DECLARATION OF CONFORMITY Product HPRT TP807 We declare that the product conforms to the following specification: FCC Part 15, Subpart B Class B digital device. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: ●...
  • Page 133 TP807 User Manual FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 134: Ec Declaration Of Conformity

    TP807 User Manual EC DECLARATION OF CONFORMITY Manufacturer certifies that the following designated product HPRT TP807 Type of product Direct Thermal Line Printing It is in conformity with the standards Test standard information Under the Council Directive: (LVD) Directive 2014/35/EU relating to electrical equipment designed for use within Low Voltage Directive.
