Page 1: User Manual
HLP106D User Manual Xiamen Hanin Electronic Technology Co.,Ltd. ADD: Room 305A, Angye Building, Pioneering Park, Torch High-tech Zone, Xiamen, China 361009 Tel: +86-(0)592-5885993 Fax: +86-(0)592-5885992 Web: www.hprt.com... - Page 2 REVISION RECORDS DESCRIPTION REV. DATE DRAWN CHECKED APPROVED 2014.11.18 Preliminary Cui Xiao Yang Kaiqu Ren Xiaowei 2015.01.04 1.Modify 3.7 Operation panel Cui Xiao Yang Kaiqu Ren Xiaowei 1.Update Important Safety Instruction 2.Change structure General Specification 2015.06.24 Dorothy Yang Kaiqu Ren Xiaowei 3.Update the printing speed to 120mm/s;...
-
Page 3: Table Of Contents
CONTENTS ■ Manual Information ..................... 1 ■ Important Safety Instructions ................1 CHAPTER 1 PRODUCT INTRODUCTION..............4 1.1 Unpacking list....................4 1.2 Appearance and component............... 5 CHAPTER 2 SPECIFICATION ..................7 CHAPTER 3 Installation & Usage ................9 3.1 Power Connection ..................9 3.2 Opening Printer Cover................ - Page 4 Statement This manual content may be altered without permission, and Xiamen Hanin Electronic Technology Co., Ltd. reserves the rights to make changes without notice in technology, spare parts, hardware and software of the products. If more information is needed about the products, please contact Xiamen Hanin Electronic Technology Co., Ltd.
-
Page 5: Manual Information
■ Manual Information This user manual contains basic information for product usage as well as for emergency measures that may be required. ※ The following separate manuals provide more details on various technological issues and areas. 1.Windows Driver Manual This manual provides information on the installation instructions and main functions of the Windows Driver. - Page 6 scald. 2. Operation Precautions 1) Water or other liquid should not be spilled into the printer, the printer also should not expose to the rain, or else may damage printer. 2) Please do not open the printer cover when it is printing, otherwise the printer may work improperly.
- Page 7 by the our company, as well as from the unauthorized alteration, repair, and/or modification of the product by the user and/or third party. Our company is not legally liable for any damages and/or issues resulting from the use of options and/or parts that are not our authentic or authorized products.
-
Page 8: Chapter 1 Product Introduction
CHAPTER 1 PRODUCT INTRODUCTION 1.1 Unpacking list Notes: 1. Unpack the printer and keep the packing material in case you need to ship the printer in the future. 2. Make sure you own all parts as follows, if not, do contact the local dealer. ... -
Page 9: Appearance And Component

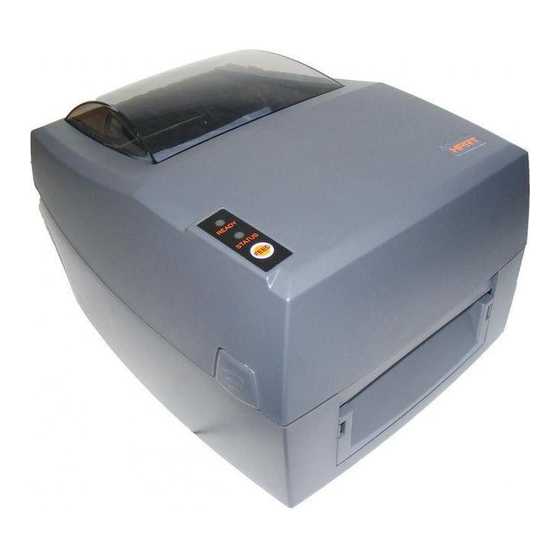

1.2 Appearance and component Figure 1-2 Rev.1.2... - Page 10 See more information in “3.7 Operation panel”. External roll paper slot HLP106D support external roll paper which can be fed by external roll paper entry slot. Release latch Press down the left and right release latch simultaneously and lift the printing group.
-
Page 11: Chapter 2 Specification
CHAPTER 2 SPECIFICATION Table 2-1 Specification Item Parameter Print method Direct thermal and thermal transfer Resolution 203dpi（8dots/mm） Printing Printing width 108mm Print speed Max.120mm/s Interface USB, Ethernet(Optional) Page Mode Support 2M Byte Memory Flash 2M Byte Chinese GB18030 16×16 24×24 dots Character Alphanumeric ASCII 8×16,12×24 dots... - Page 12 Table 2-1 Specification(Continued) （2/2） Item Parameter Command TSPL Operation condition 0～40℃/20～85%RH Storage condition -40～60℃/5～95%RH Physical spec. Dimensions 285(L)*226(W)*171(H)mm Weight 2.26kg(Without roll paper and ribbon) Reliability 30km Rev.1.2...
-
Page 13: Chapter 3 Installation & Usage
CHAPTER 3 Installation & Usage 3.1 Power Connection Connect the power adapter of printer as shown below. Figure 3-1 1. Turn off the printer. 2. Make sure that voltage of the power adapter is in accord with voltage of power. 3. -
Page 14: Opening Printer Cover
3.2 Opening Printer Cover Press the left and right cover open latch with both hands simultaneously and lift the printer cover. Figure 3-2 3.3 Opening Printing Group Press the left and right release latch with both hands simultaneously and lift the printing group. -
Page 15: Loading Ribbon
Pass the paper through paper guides and adjust paper guides according to the paper width. Figure 3-5 3.5 Loading Ribbon 1.Put the new ribbon into the ribbon supply shaft, and put ribbon supply group into the printing group. Figure 3-6 Rev 1.2 www.hprt.com... - Page 16 2~3 circles. Turn around the ribbon feed mechanism to make it smooth. Figure 3-8 4.Press down the printing group and fix it, then close the printer cover. Figure 3-9 Rev 1.2 www.hprt.com...
-
Page 17: Label Detection
3.6 Label Detection We have a movable detector to detect label paper. Figure 3-11 3.7 Connecting Interface Cable Connect interface cable as shown below. Figure 3-12 Rev 1.2 www.hprt.com... -
Page 18: Operation Panel
Press the [FEED] button when it is printing, the current printing job pauses; repress the [FEED] button, the printer continues to print. Caution: If the printer cannot locate the label, please refer to section 3.8 for label detection detail. LED status description: Rev 1.2 www.hprt.com... -
Page 19: Basic Operation
6.Close the printing group.STASUS indicator is off. READY indicator is yellow. Printer will feed six label to finish label learning. 7.After label learning printer will restart and locate automatically. READY indicator is off for a while, then it is on and printer feed one label. Rev 1.2 www.hprt.com... -
Page 20: Printing Self Page
NOTE: In order to save paper, you can reload the blank label which is used after the label learning. Auto label learning Carry out label learning by printer utility tool. See more information in<HPRT Utility Tool Manual>. 3.8.4 Printing Self Page The self-test checks the printer’s current settings, status and whether the printer... -
Page 21: Chapter 4 Interface
CHAPTER 4 INTERFACE 4.1 USB Interface Figure 4-1 SIGNAL NAME VBUS 4.2 Other Optional Interface Ethernet Port PIN NO. Signal Name Rev 1.2 www.hprt.com... -
Page 22: Chapter 5 Maintenance And Adjustment
3) Soak the cloth or cotton swab in alcohol for medical use and use it to remove adhesive foreign substances or other pollution materials. 4) After cleaning the parts, do not use the printer until the alcohol evaporates completely (1~2 min) and the printer has completely dried Rev 1.2 www.hprt.com... - Page 23 ※ Clean the parts when there is a degradation of print quality or paper detection. Rev 1.2 www.hprt.com...
