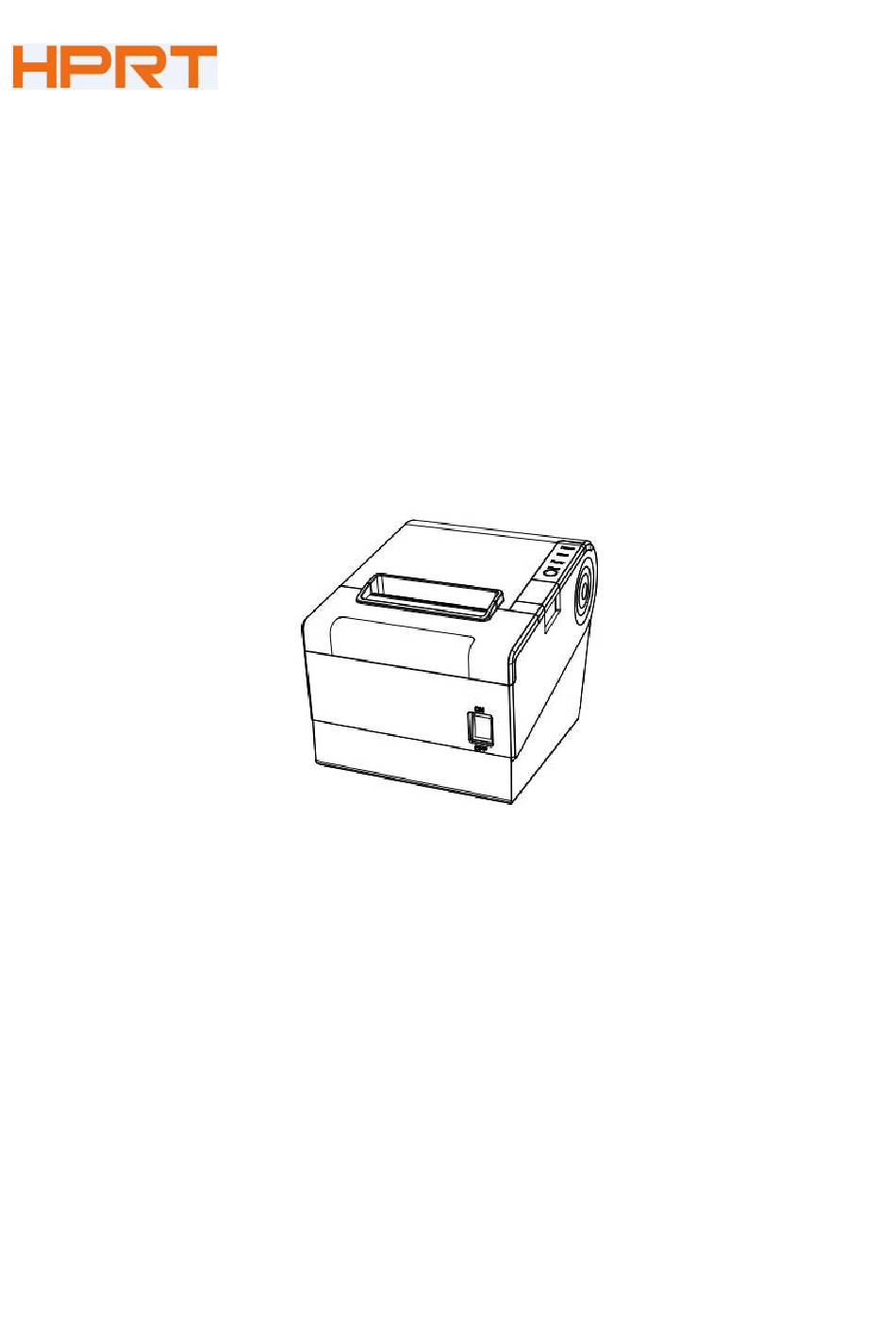

- Page 1 Desktop POS Printer TP806L User Manual Rev.1.1 Xiamen Hanin Electronic Technology Co.,Ltd. Tel: +86-(0)592-5885991 Web: www.hprt.com...
-
Page 2: Table Of Contents
CONTENT STATEMENT............................3 CAUTIONS...............................3 IMPORTANT SAFETY INSTRUCTIONS......................4 1 OVERVIEW ............................6 1.1 Introductions..........................6 1.2 The Main Features........................6 2 GETTING STARTED..........................7 2.1 Packing List..........................7 2.2 Appearance and Components....................8 3 SPECIFICATION..........................10 3.1 Printer Specification....................... 10 3.2 Media Specification........................ 12 3.2.1 Continuous Thermal Paper Specification.............. -
Page 3: Statement
STATEMENT This manual content may be altered without permission, and Xiamen Hanin Electronic Technology Co., Ltd. reserves the rights to make changes without notice in technology, spare parts, hardware and software of the products. If more information is needed about the products, please contact Xiamen Hanin Electronic Technology Co., Ltd. -
Page 4: Important Safety Instructions
TP806L User Manual IMPORTANT SAFETY INSTRUCTIONS 1. Safety warning Warnings: The print head will become very hot during printing; avoid contact with the print head after printing has finished. Warnings: Do not touch the printer head and connector in case static damage the printer head. - Page 5 TP806L User Manual Other Precautions The copyright for this user manual and various other manuals is property of our company. Any copying or conversion into electronic form and saving of this material without the express written permission is strictly prohibited. Use of the information contained in this manual is not subject to any patent liability.
-
Page 6: Overview

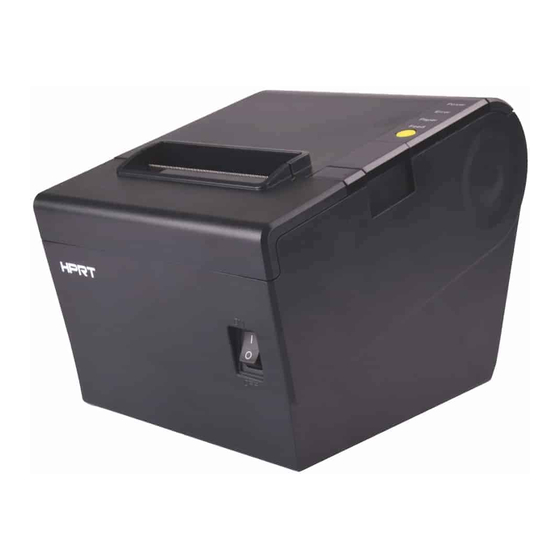

1 OVERVIEW 1.1 Introductions TP806L is a thermal receipt printer with auto-cutter, featured by high print quality, high print speed, high stability, etc. It can be used in commercial POS system, food industry and occasions which need real-time field print receipts. -
Page 7: Getting Started
TP806L User Manual 2 GETTING STARTED 2.1 Packing List After receiving your printer, please check for possible shipping damage: 1) Inspect the outside of both the box and the printer for possible damage. 2) Check whether you have received the following accessories together with the printer, if there is any items missing, please contact with your local dealer. -
Page 8: Appearance And Components
TP806L User Manual 2.2 Appearance and Components... - Page 9 6) Paper Guide Use the paper guide in the paper container to meet different paper widths. TP806L paper container has 2 paper guide slots. Paper guide slot 1 meets the 80mm width paper, and slot 2 meets the 58mm width paper.
-
Page 10: Specification
TP806L User Manual 3 SPECIFICATION 3.1 Printer Specification General Specification Item Parameter Printing method Direct thermal line printing Resolution Default 203 dpi, 180 dpi can be emulated Printing width 72mm（576dots） Printing Parameter Printing speed Max. 250mm/s Print density Adjustable from degree 1 to degree 4... - Page 11 TP806L User Manual Item Parameter ESC/POS Emulation Operating 0~40℃/20~85%RH Condition Storage -20~70℃/5~95%RH TPH Life 150km Reliability Cutter Life 2,000,000 times Dimensions 145*197*146mm （W*D*H） Packing Standard: power adaptor, power cord, serial cable, CD, quick guide, Information Accessories paper guide for 58mm width paper, paper roll...
-
Page 12: Media Specification
TP806L User Manual 3.2 Media Specification 3.2.1 Continuous Thermal Paper Specification Paper Type: Standard thermal paper Paper Width: 79.5±0.5mm/57.5±0.5mm (with 1" spacer) Paper Roll Diameter: 83mm Max. Paper Thickness: 0.056~0.1mm Paper Type Manufacturer FD210,PD150R,PD160R OJI Paper CO.,LTD. Notes: Please use the recommended thermal paper or same quality paper, otherwise it will influence the print quality and decrease the thermal printer head life;... -
Page 13: Printing And Cutting Position
TP806L User Manual 3.3 Printing and Cutting Position 3.3.1 Printing Position mm Print Paper mm Print Paper 3.3.2 Cutting Position Type Paper Cutting Position(L1) TP806L 15.4mm... -
Page 14: Installation And Usage
4.2 Installation Site and Direction of Printer 1) TP806L has two ways to install: wall-hanging(optional:wall-hanging kit) and horizontal installation. It’s recommend to install the printer at a horizontal surface; 2) The printer should install at a flat and steady place. It’s recommend to install the printer at a horizontal surface. - Page 15 TP806L User Manual The power adapter plug is designed with switch type. When the power adapter makes a "click " sound, the socket switch is locked and the adapter is connected in place, otherwise, please reconnect with the socket. When pulling out the adapter, please pinch the shell of power adapter and pull the switch up, when the switch is fully opened then pull out the power adapter.
-
Page 16: Interface Cable Connection
TP806L User Manual 4.4 Interface Cable Connection 1) Make sure the printer's power switch is turned off; 2) Put the interface cable into the matched interface and fixed with screws (or spring) on the plug; 3) Connect the other end of the interface cable to the host. - Page 17 TP806L User Manual 5) Pull out some paper and close the printer cover. 6) Tear the extra paper. Notes: 1) Adjust the paper guide according to the paper width; 2) Make sure the paper roll inside is at tight status, or it may cause paper jam or other fault.
-
Page 18: Specification Of Led Indication And Beeper
TP806L User Manual 4.7 Specification of LED Indication and Beeper 4.7.1 Specification of LED Indication Name Status Specification POWER LED The printer works well (Green) The printer is power off. ERROR LED Flash The printer in an error status (Red) -
Page 19: Print Self Testing
TP806L User Manual 4.8 Print Self Testing The self-test checks the printer’s current settings, status and whether the printer has any problem. 1) Make sure the power is connected and paper is loaded properly. 2) Make sure the printer is off and top cover is closed properly. -
Page 20: Interface Signal
TP806L User Manual 5 INTERFACE SIGNAL Printer TP806L supports cash drawer interface and many other communicate interfaces, such as serial interface, USB interface, Ethernet interface. The printer has the communication board with the default USB interface and cash drawer interface. -
Page 21: Power Connector
User end: Unetop DC-002 or similar products. Note: Strictly prohibit unplugging the power cable while the printer is power on. 5.4 Serial Interface Printer TP806L serial interface is compatible with RS 232 standard, with 9 pin socket. Figure 5-2 PIN NO. -
Page 22: Ethernet Interface
TP806L User Manual 5.5 Ethernet Interface PIN NO. Signal Name Note: The printer is equipped with an Ethernet interface, and use the network connection router, switch and other network communication equipment which meet RJ45 interface standard. When connecting directly with PC, it is suggested that the cross network line in accordance with... -
Page 23: Troubleshooting
TP806L User Manual 6 TROUBLESHOOTING Your printer is very reliable, but occasionally problems may occur. This chapter provides information on some common problems you may encounter and how to solve them. If you encounter problems that you can not resolve, contact with your dealer for assistance. -
Page 24: Problems Emerge During The Paper Cutting Processes
TP806L User Manual 6.4 Problems Emerge During the Paper Cutting Processes Solution Problem Description Probable Reason Cutter abrasion, Replace the cutter insufficient cutting Worm gear and worm Cutter jam, the Replace the worm gear and worm wheel wheel abrasion movable cutter... -
Page 25: Remove Jammed Paper
TP806L User Manual 6.5 Remove Jammed Paper Warning: Do not touch the thermal print head because it becomes very hot after printing. If the top cover can be opened, operate it according to the next steps. 1) Turn off the printer and press open cover button. -
Page 26: Printer Cleaning And Maintenance
TP806L User Manual 7 PRINTER CLEANING AND MAINTENANCE Print quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer. When dirty, clean the print head as following steps: ※...
