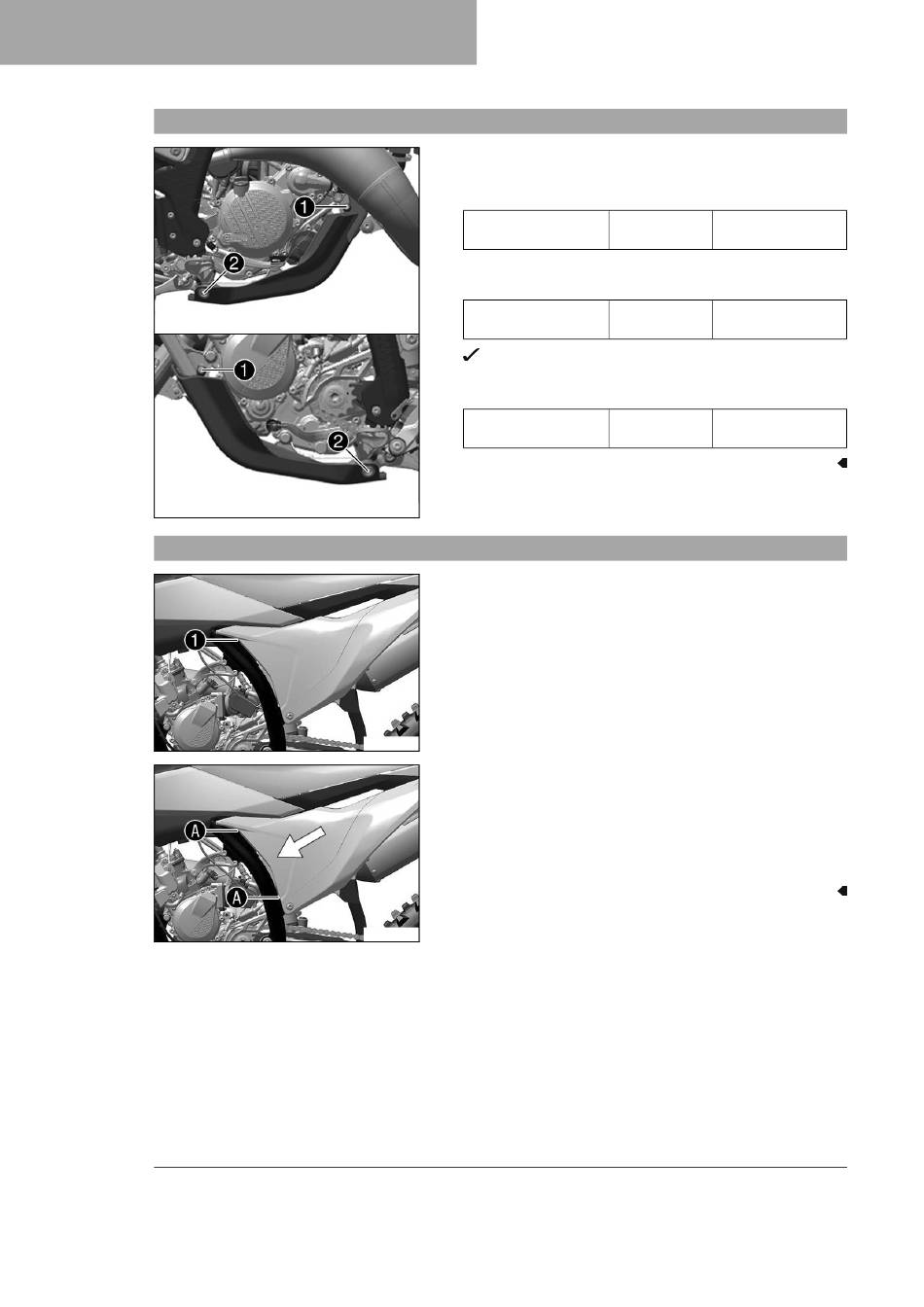

Installing the engine guard (XC)

S05562-11

Removing the air filter box cover

S05540-10
S05541-10
–
Position the engine guard on the frame.
–
1
Mount screws , but do not tighten yet.
Guideline
Remaining screws,
chassis
–
2
Mount screws with bushings, but do not tighten yet.
Guideline
Remaining screws,
chassis
The engine guard is directed evenly toward the front.
–
Tighten all the screws of the engine guard.
Guideline
Remaining screws,
chassis
Condition
The air filter box cover is secured.
–
1
Remove screw .
–
Pull off the air filter box cover in area
ways and forward. Take off the air filter box cover.
Condition
The air filter box cover is not secured.
–
Pull off the air filter box cover in area
ways and forward. Take off the air filter box cover.
M6 10 Nm (7.4 lbf ft)
M6 10 Nm (7.4 lbf ft)
M6 10 Nm (7.4 lbf ft)
A
and push it side-
A
and push it side-
