Installation Guide
BWT ROC Clinic One
for Units & Autoclaves

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROC Clinic One and is the answer not in the manual?

Questions and answers

Related Manuals for BWT ROC Clinic One

Summary of Contents for BWT ROC Clinic One

  • Page 1 Installation Guide BWT ROC Clinic One for Units & Autoclaves...

  • Page 2: Table Of Contents

    Step by step installation guide......................8 Blindcap & Membrane installation ...................... 18 BWT Flexhead installation ......................... 19 Startup ............................... 21 Clinic One filter installation ......................... 22 BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 2 / 24...

  • Page 3: Introduction

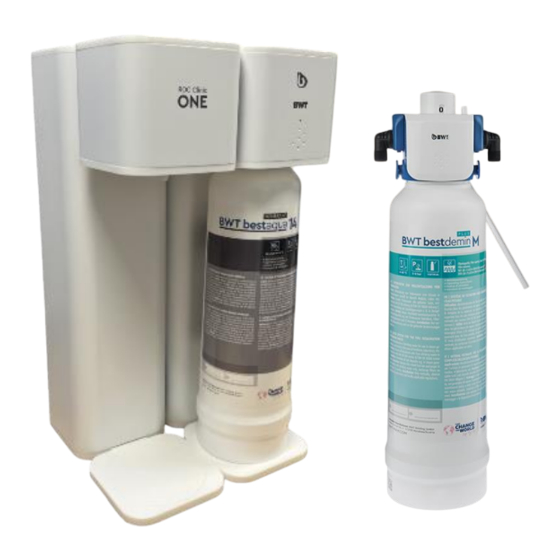

    Installation guide BWT ROC Clinic Onefor Units & Autoclaves Introduction The BWT ROC Clinic One is a combination of reverse osmosis and a filter cartridge for complete desalination of the permeate. BWT ROC Clinic App download Download site for BWT ROC Clinic One. Scan QR code...

  • Page 4: Scope Of Delivery

    12. 1 Pcs. Flow Restrictor Stainless Steel 1.4mm 13. 4 Pcs. Clips 8mm Be Advised: There are components in the set which are not to be used!! BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 4 / 24...

  • Page 5: Installations Kits

    26. 1 pcs. Female X Male reduction 1“ x 3/4" (50 L Hydrofor) Be Advised: There are components in the set which are not to be used!! BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 5 / 24...

  • Page 6: Bwt Flexhead Connections

    Rotate the clip to release the connection. The connector can now be changed out or repositioned in another angel. The connectors can be rateted in 360°. Remount the clip after change or reposition af the connector. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 6 / 24...

  • Page 7: Overview Of The Back Of The Unit

    ( A ) Drain Outlet ( B ) Water Inlet ( C ) Pressure Tank ( D ) Product Outlet ( E ) Concentrate Restrictor ( F ) BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 7 / 24...

  • Page 8: Step By Step Installation Guide

    Installation guide BWT ROC Clinic Onefor Units & Autoclaves Step by step installation guide. Mount the inlet water hose (15) to the inlet on the BWT Multiblock (21) Mount the other end of the inlet water hose (15) on the Water Inlet (C).
  • Page 9 Installation guide BWT ROC Clinic Onefor Units & Autoclaves Be Aware!! Restrictor flow. Wrong Way Right Way BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 9 / 24...
  • Page 10 Installation guide BWT ROC Clinic Onefor Units & Autoclaves Insert the Concentrate Restrictor (12) in the Drain Outlet (B). The Drain elbow (5) can now be mounted on the Concentrate Restrictor (12). BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 10 / 24...
  • Page 11 Push the 8mm push-in elbow (24) into the top of the Siphon (19). Push the other end of the 8mm hose (6) into the elbow (24) on the Siphon (19). BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 11 / 24...
  • Page 12 Use a pressure gauge to measure the pressure in the pressure tank (14) The factory default pressure aprox. 4 bars. The tank must be deflated to 1 bar. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 12 / 24...
  • Page 13 Mount the Female adaptor 8mm (20) to the pressure tanks (14) inlet. Push the 8mm hose (7) into the adaptor (20) and remember to lock it with a locking clip (13). BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 13 / 24...
  • Page 14 Mount the Straight terminal F3/8'' 8mm (9) on the Product Outlet (E). Push the 8mm hose (16) into the adaptor (9). Remember to lock it with a locking clip (13). BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 14 / 24...
  • Page 15 Installation guide BWT ROC Clinic Onefor Units & Autoclaves Mount the Reduction FM 3/4” (22) on the right side of the BWT Multiblock (21) Push the 8mm hose (16) into the reduction (22) Remember to lock it with a locking clip (13) BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500...
  • Page 16 Plug in the power plug (4) into the units power inlet (A). Remember to set the power button in OFF position. Insert the 230V plug (4) into a wall outlet. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 16 / 24...
  • Page 17 Installation guide BWT ROC Clinic Onefor Units & Autoclaves Now the all the connections are done and the back look like this: BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 17 / 24...

  • Page 18: Blindcap & Membrane Installation

    Install the membrane (3) (right side) by slightly tipping the unit back, insert the filtertop in the unit and rotate the membrane. Ensure that the filter and membrane catch the screw thread in the unit. To see the film, scan the QR code in section 2. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 18 / 24...

  • Page 19: Bwt Flexhead Installation

    10 BWT Flex head installation The filter for the autoclaves needs to be installed separately. After the BWT Multiblock (21), a tee is needed for separating the treated water into water for the units and water to the Patrol™ filter.
  • Page 20 (2) Mount the hose from the tee on the inlet as shown. Mount a hose from the filter head outlet to the autoclaves. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 20 / 24...

  • Page 21: Startup

    Click the power button next to the power inlet (A) on the back. The BWT ROC Clinic One will make a beep and will now make a rinse and prepare itself for operation. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500...

  • Page 22: Clinic One Filter Installation

    Installation guide BWT ROC Clinic Onefor Units & Autoclaves 12 BestDemin filter installation Insert the filter in the filter head as shown in the pic BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 22 / 24...
  • Page 23 The filter will start flushing out of the transparent hose at the bottom of the filter head. You need to flush 2 liters out of a BestDemin M And 3,1 liter out of a BestDemin XL BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 23 / 24...
  • Page 24 Installation guide BWT ROC Clinic Onefor Units & Autoclaves The filter can be installed both standing freely or wall mounted with the wall bracket. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 24 / 24...
