Installation Guide
BWT ROC Clinic One
for Autoclaves

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROC Clinic One and is the answer not in the manual?

Questions and answers

Related Manuals for BWT ROC Clinic One

Summary of Contents for BWT ROC Clinic One

  • Page 1 Installation Guide BWT ROC Clinic One for Autoclaves...

  • Page 2: Table Of Contents

    Installations guide BWT ROC Clinic One Installation guide for Autoclaves Introduction ............................3 BWT ROC Clinic App download ......................3 Documents and films regarding Roc Clinic One .................. 3 Scope of delivery ..........................4 Installations Kits ........................... 5 Overview of the back of the unit ......................6 Step by step installation guide.

  • Page 3: Introduction

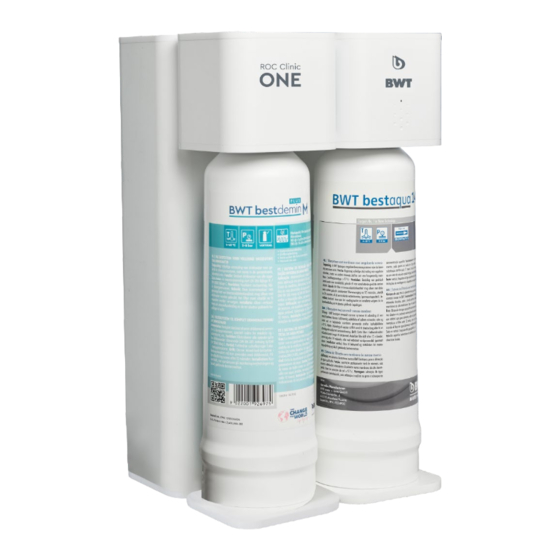

    Installations guide BWT ROC Clinic One Installation guide for Autoclaves Introduction The BWT ROC Clinic One is a combination of reverse osmosis and a filter cartridge for complete desalination of the permeate. BWT ROC Clinic App download Download site for BWT ROC Clinic One. Scan QR code...

  • Page 4: Scope Of Delivery

    Installations guide BWT ROC Clinic One Installation guide for Autoclaves Scope of delivery 1 Pcs. BWT ROC Clinic One unit. 1 Pcs. BWT BestDemin M filter 1 Pcs. BWT BestAqua 14 membrane 1 Pcs. Power cable, Power Cord SCHUKO 1 Pcs. Elbow 8mm...

  • Page 5: Installations Kits

    Installations guide BWT ROC Clinic One Installation guide for Autoclaves Installations Kits Hydrofor 8, 25, 50L 14. 1 Pcs. 15. 1 Pcs. SPX DN8 3/4F x 3/4E 1500mm 16. 5 m. Tube foodgrade 8mm 17. 1 Pcs. Power Cable with DK ground 18.

  • Page 6: Overview Of The Back Of The Unit

    Installations guide BWT ROC Clinic One Installation guide for Autoclaves Overview of the back of the unit Power Plug ( A ) Drain Outlet ( B ) Water Inlet ( C ) Pressure Tank ( D ) Product Outlet ( E ) Concentrate Restrictor ( F ) BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500...

  • Page 7: Step By Step Installation Guide

    Installations guide BWT ROC Clinic One Installation guide for Autoclaves Step by step installation guide. Mount the inlet water hose (15) to the inlet on the BWT Multiblock (21) Mount the other end of the inlet water hose (15) on the Water Inlet (C).
  • Page 8 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Be Aware!! Restrictor flow. Wrong Way Right Way BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 8 / 18...
  • Page 9 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Insert the Concentrate Restrictor (12) in the Drain Outlet (B). The Drain elbow (5) can now be mounted on the Concentrate Restrictor (12). BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500...
  • Page 10 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Cut the 8mm hose (6) in the needed length for connecting the unit to the Siphon (19). Push the 8mm hose (6) into the drain elbow (5). Push the 8mm push-in elbow (24) into the top of the Siphon (19).
  • Page 11 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Use a pressure gauge to measure the pressure in the pressure tank (14) The factory default pressure approx. 4 bars. The tank must be deflated to 1 bar. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500...
  • Page 12 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Use the 8 mm hose (7) and cut it in the needed length, for connecting the unit to the pressure tank. Push one end of the 8mm hose (7) into the tank inlet (D). Remember to lock it with a locking clip (13).
  • Page 13 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Mount the Straight terminal F3/8'' 8mm (9) on the Product Outlet (E). Push the 8mm hose (16) into the adaptor (9). Remember to lock it with a locking clip (13).
  • Page 14 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Mount the Reduction FM 3/4” (22) on the right side of the BWT Multiblock (21) Push the 8mm hose (16) into the reduction (22) Remember to lock it with a locking clip (13) BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500...
  • Page 15 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Plug in the power plug (4) into the units power inlet (A). Remember to set the power button in OFF position. Insert the 230V plug (4) into a wall outlet.
  • Page 16 Installations guide BWT ROC Clinic One Installation guide for Autoclaves Now the all the connections are done and the back look like this: BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500 16 / 18...

  • Page 17: Membrane And Filter Installation

    Installations guide BWT ROC Clinic One Installation guide for Autoclaves Membrane and filter installation Install the filter (2) (left side) and the membrane (3) (right side) by slightly tipping the unit back, insert the filtertop in the unit and rotate the membrane or the filter. Ensure that the filter and membrane catch the screw thread in the unit.

  • Page 18: Startup

    Click the power button next to the power inlet (A) on the back. The BWT ROC Clinic One will make a beep and will now make a rinse and prepare itself for operation. BWT Denmark A/S, Geminivej 24, 2670 Greve, Tel.: 43 600 500...
