Summary of Contents for BWT Domestic R.O. System RO300

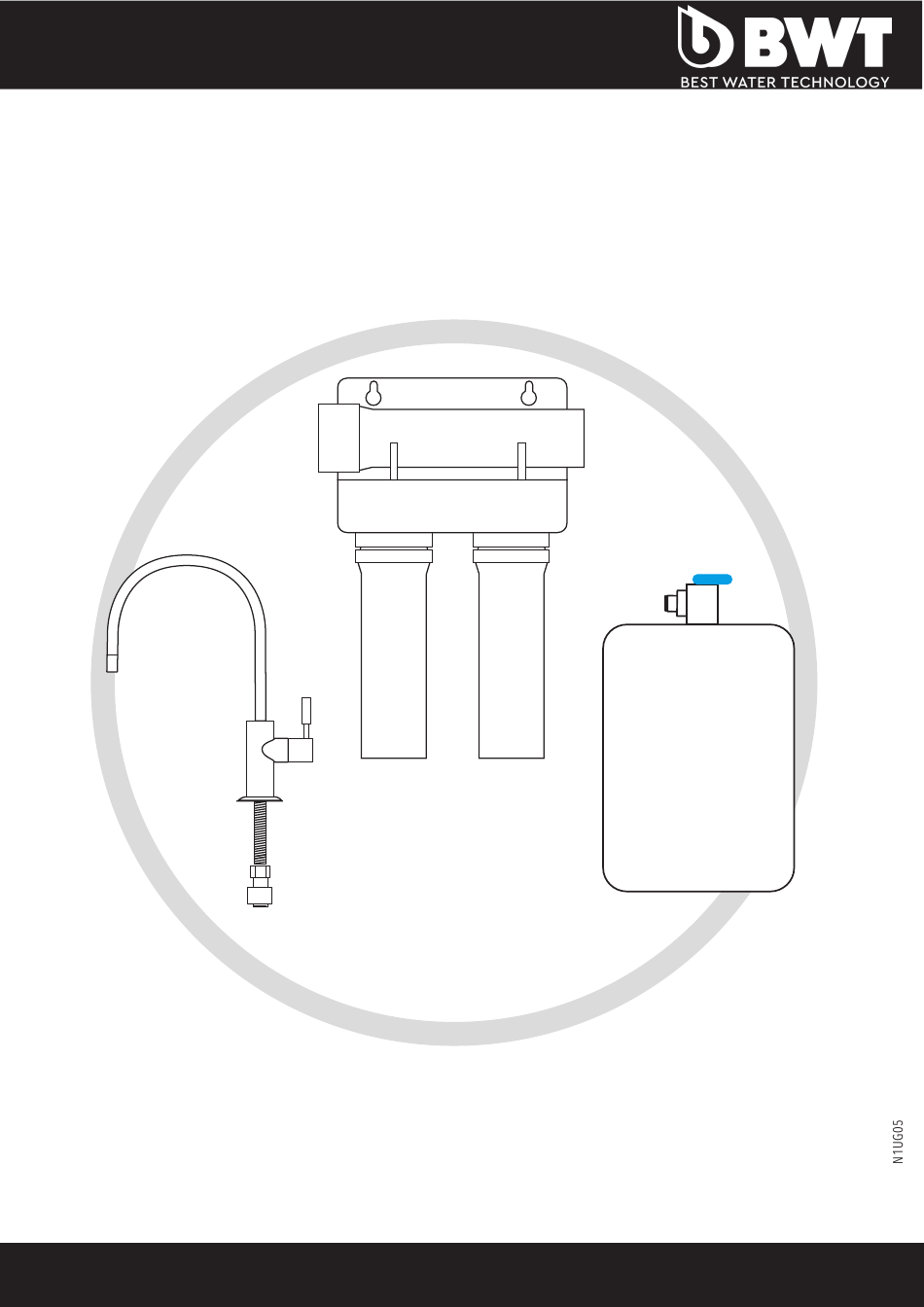

- Page 1 Installation and Service Guide Domestic R.O. System | RO300 RO300 N1IS35 Please read this manual carefully before attempting installation. 1300 720 299 sales@bwtaustralia.com.au www.bwtaustralia.com.au...
- Page 2 Congratulations on purchasing the RO300 Reverse Osmosis system, which delivers superb quality drinking water. CHECKLIST RO300 R.O. System FCT-4 Faucet PA-E-132 Tank - 14 Litre CI3212U7S Fitting for faucet connection PPSV500822W Ball Valve - 1/4” x 1/4” Speedfit (For Tank connection) PPSV040808W Ball Valve - 1/4”...
- Page 3 Correctly maintained, the RO300 will provide many years of reliable service. Before you start installation: 1. Water pressure at the installation point should be minimum 350kPa or the RO performance is compromised. Speak with WFS if mains water pressure is less than 350kPa. 2.
- Page 4 R.O. Unit and Tank Installation The R.O. unit is normally mounted to the right or left sink cabinet sidewall, depending on where supply tank is to be located. Generally the unit is installed at the front of the cabinet and the tank at the rear. To mount the unit, elevate it at least 75mm off the floor, level it and mark the location of mounting holes needed.
- Page 5 Ball Valve and Tubing Installation: FIGURE C The grey inlet adaptor provides a simple, easy connection between the cold water shut-off and the cold water line. Shut-off the cold water supply by using the existing shut-off valve or stop cock, located under your sink. Leave the water supply off until installation is complete.
- Page 6 Membrane The RO300 is fitted with a 75US GPD membrane (280 litres per day). Depending on your water pressure and temperature the production will be 9-12 litres per hour. Troubleshooting R.O. Systems are highly sensitive to pressure and temperature. The majority of problems with R.O. Systems are a result of low pressure.
