Back-to-Wall Carrier System
INSTALLATION INSTRUCTIONS
w e l l m a d e f o r e v e r
Fantôme H Concealed Toilet Tank Carrier
System with Top Flush for Back-to-Wall Toilet
SM-WC328
@SwissMadison
#WellMadeForever
www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com
Advertisement
Related Manuals for Swiss Madison SM-WC328
Summary of Contents for Swiss Madison SM-WC328

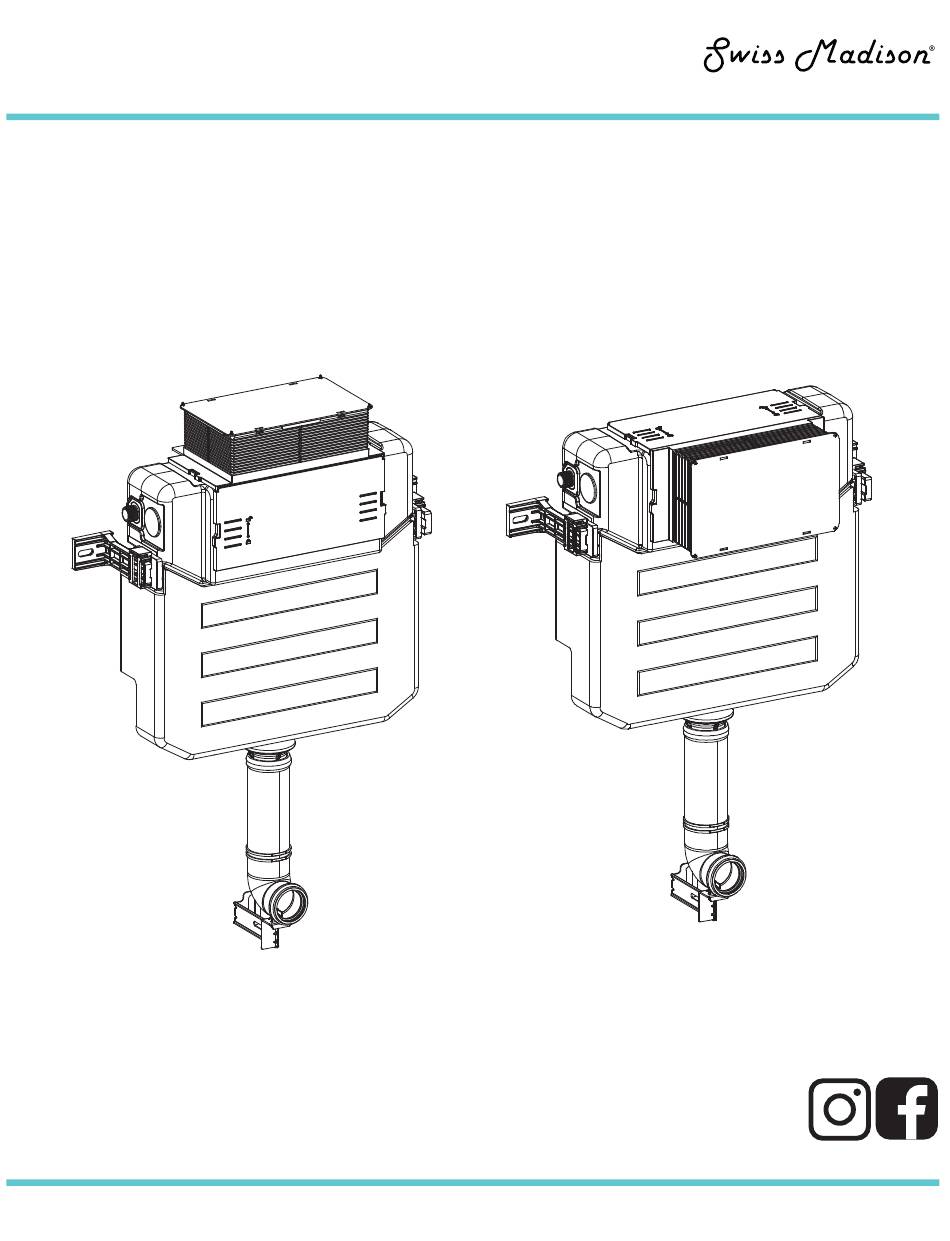

- Page 1 Back-to-Wall Carrier System INSTALLATION INSTRUCTIONS w e l l m a d e f o r e v e r Fantôme H Concealed Toilet Tank Carrier System with Top Flush for Back-to-Wall Toilet SM-WC328 @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS Parts for Reference: — 2 —...
- Page 4 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 1. Fasten Mounts (if fastening to studs) · Adjust clips then fasten carrier to studs or wall framing. · Ensure frame is flush and level before fastening. — 3 —...
- Page 5 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 1. Fasten Mounts (if fastening to wall) · Adjust clips then fasten carrier to studs or wall framing. · Ensure frame is flush and level before fastening. — 4 —...
- Page 6 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 2. Cut Pipe · Measure and cut pipe according to your toilet. · Make sure to measure the sub floor and finished floor measurements before cutting to have the correct center. · Once pipe is cut, remove any burrs. X+ (22 ³⁄4”...
- Page 7 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 4. Remove Actuator Cover · Remove the actuator cover to attach water connection. 5. Tighten Water Connection · Hold shutoff valve stationary while tightening water connection. · Install the locking nut as shown below. — 6 —...
- Page 8 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 6. Flush Debris & Reconnect Waterline and Actuator · Undo the waterline hose and turn on the valve to flush out any debris before reinstalling to the actuator. · Once flushed, reconnect the waterline and actuator. 00:00:45 —...
- Page 9 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 7. Secure Rough-in Box · Ensure roughing box is secure to keep any debris from entering the tank. “Click” “Click” “Click” “Click” “Click” “Click” “Click” “Click” “Click” “Click” — 8 —...
- Page 10 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 8. Build & Finish Wall Installation ²³⁄32” - 2 ¹¹⁄16” ¹⁄8” ¹⁄8” ¹⁄8” ¹⁄8” min. ²⁵⁄32” — 9 —...
- Page 11 BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS 1. Insert tube into wall and mark as shown. 2. Insert tube into bowl and mark as shown. — 10 —...
- Page 12 BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS 3. Carefully measure between your marks, this distance will be cut off the bald end. Add ¹5⁄64” to measurement before cutting, leaving a small cushion for error. ¹5⁄64” 4. De-burr any particles after cutting. — 11 —...
- Page 13 BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS 5. Lubricate both ends then install. 6. Ensure the bowl is level and install. Caulk and seal around the bowl. — 12 —...
-
Page 14: One-Year Limited Warranty
Should there be any defects in materials or crafts- manship under regular use that are discovered within the first year of installation, Swiss Madison will provide replacement parts at no charge, or at its discretion, replace any product or part of the product that is deemed defective, under normal installation, use, service or maintenance.
