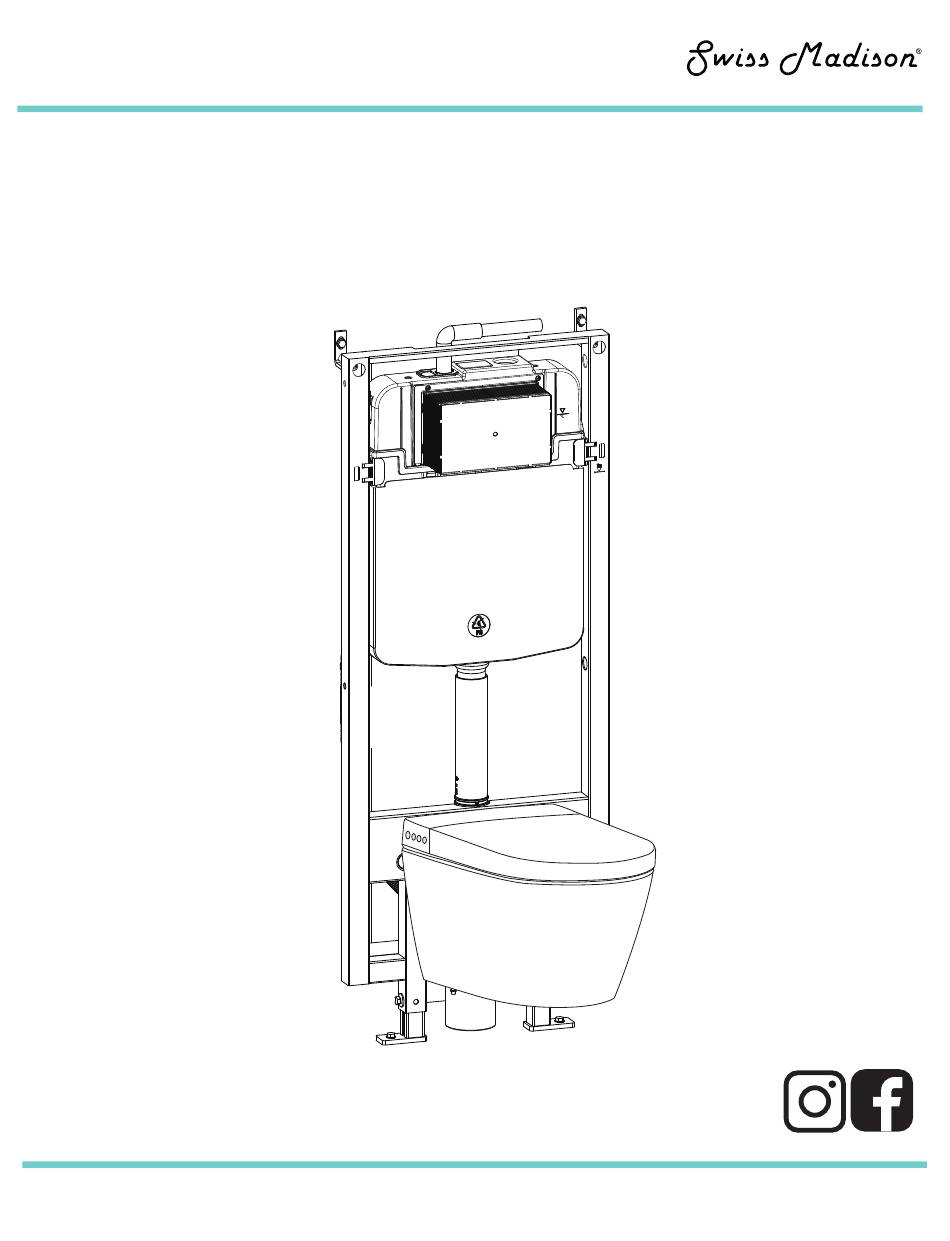

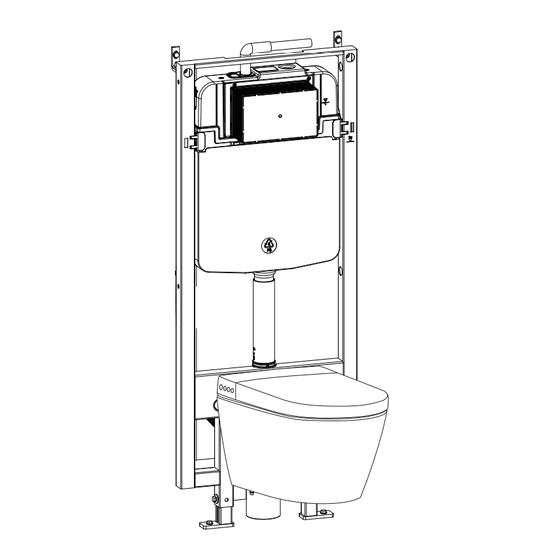

- Page 1 Wall-Hung Carrier System INSTALLATION INSTRUCTIONS w e l l m a d e f o r e v e r Concealed In-Wall Toilet Tank Carrier System 2x4 SM-WC427 @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Installation Instructions
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS Included Parts (Carrier): Included Parts (Toilet): · Cistern cover · Smart toilet · Mounting box · Transition pieces · Mounting box cover · Nuts & washers · Flush pipe assembly · Bolt covers · Drain pipe assembly ·...
- Page 4 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 2. Fasten Mounts · After adjusting bowl height, fasten four mounts (A). · Screw carrier to wood framing flush across the front. NOTE: It is recommended to use 2 1/2” screws and 1 1/4” fender washers (4 of each total). ·...
- Page 5 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 4. Install T-Connector · Install the t-connector inside the mounting box. 5. Install Auto Flush Module · Insert module to the designated location at the top right of the mounting box. · Connect the 3 corresponding wires. ·...
-
Page 6: Connect Power Source
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 6. Install Cistern Cover, Mounting Box & Dust Covers 7. Connect Power Source A) For wired connection to junction box/circle breaker. · Attach corrugated pipe (below) to the frame by running pipe through the bottom right hole of the frame. ·... - Page 7 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 8. Connect Power Source cont. · Install the power cord connector. · Cut plug from end of power cord. · Pass power cord through corrugated pipe and into junction box. · With the power turned off, install the circuit breaker in accordance with the circuit breaker manual. —...
- Page 8 SMART TOILET INSTALLATION INSTRUCTIONS Toilet Installation 1. Remove Seat · Open seat lid and remove fixing screws/washers from seat lid. · Remove the bidet seat from the toilet bowl. 2. Dry Fit Outlet Pipe and Inlet Pipe · Attach mounting pad. ·...
- Page 9 SMART TOILET INSTALLATION INSTRUCTIONS 3. Determine Pipe Size · Apply lubricant on rubber washers of straight tube and connecting pipe, then insert into holes. · Draw lines on pipes as pictured below. 4. Cut Pipes · Measure the distance between both marked lines on pipe. Take measured distance, deduct from bald end of pipe and cut pipes as shown below.
- Page 10 SMART TOILET INSTALLATION INSTRUCTIONS 5. Mount Toilet Bowl · Apply lubricant to the joint surface on straight tube and connecting pipe. · Mount the toilet bowl to the wall. 6. Level and Attach Bowl · Attach bowl using the washers and bolts, make sure the bowl is level, then cover with included cap. ·...
- Page 11 SMART TOILET INSTALLATION INSTRUCTIONS 7. Connect Bidet Seat · Connect water inlet hose in the toilet with ball valve switch in the bidet seat. · Connect power cords between the toilet and the bidet. · Wrap both previous connections with Velcro. ·...
-
Page 12: Maintenance Instructions
SMART TOILET MAINTENANCE INSTRUCTIONS Daily maintenance Spray nozzle maintenance Main unit maintenance 1. While not sitting on the unit, short press 1. Disconnect the power before maintenance. the “REAR/MOVE” Button on the main unit, the spray nozzle will extend outward Use only a soft, damp cloth to clean. -
Page 13: Emergency Troubleshooting
SMART TOILET TROUBLESHOOTING Emergency troubleshooting Filter maintenance Water and power failure 1. How to flush the toilet in water and If poor spray performance occurs power failure: under normal conditions: Fill water in a large bucket (around 8L), flush the toilet from the center of the 1. - Page 14 SMART TOILET TROUBLESHOOTING Function description of main unit buttons Operation instructions of main unit buttons 1. Long press the “STOP” button (for about 3s), the main unit will enter power-off mode (red light will turn off). Long press the “STOP” button again, the main unit will return to working mode (red light will turn on).
-
Page 15: Troubleshooting Guide
SMART TOILET TROUBLESHOOTING Troubleshooting guide Problem Cause Solution Ensure inlet hose isconnected to the unit and Water Inlet hose is bentor kinked isnot kinked or bent No Water is Released from Inlet Stop Valve is turned "OFF" Turn the ball valve switch "ON" the Spray Nozzle Connect water supply andwait for water to Water supply is not connected... -
Page 16: Safety Instructions
SMART TOILET SAFETY INSTRUCTIONS SAFETY PRECAUTIONS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 1. This product is not intended for children (without proper adult supervision). 2. This product is not intended for individuals with reduced physical, sensory, or mental capabilities. -
Page 17: Important Safety Instructions
SMART TOILET SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CAUTION – Failure to follow the instructions may cause bodily injury orproperty damage. 1. Do not install or use the product in wet or damp locations such as a steam room. 2. Ensure the electrical outlet is positioned where it will not come in contact with water. 3. -
Page 18: Parts Identification
SMART TOILET SAFETY INSTRUCTIONS Parts identification Left side Bumper Seat Stop Drying button Ceramic toilet Front washing button Rear washing button Right side Drying baffle Spray nozzle Rear washing Night light Front washing sensitive window — 17 —... - Page 19 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
