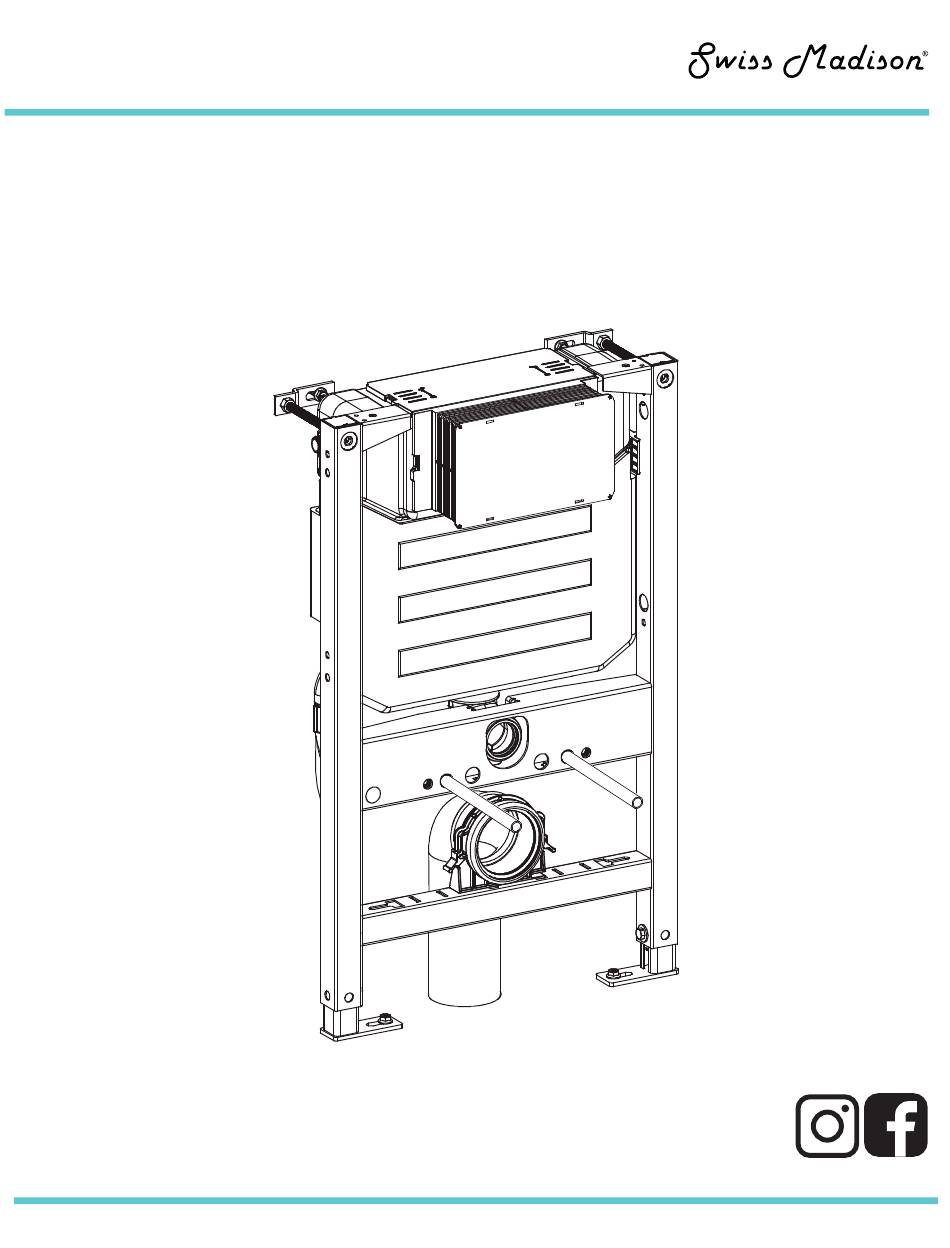

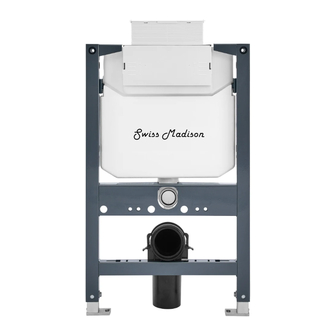

- Page 1 Wall-Hung Carrier System INSTALLATION INSTRUCTIONS w e l l m a d e f o r e v e r Fantôme H Concealed Cistern with 820mm Iron Frame Height, Top & Front Flush SM-WC428 @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 1. Attach Legs · Attach legs to framing. · Adjust bowl height as desired. — 2 —...
- Page 4 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 2. Fasten Mounts · After adjusting bowl height, fasten four mounts. · Screw carrier to wood framing flush across the front. NOTE: It is recommended to use 2 1/2” screws and 1 1/4” fender washers (4 of each total). ·...
- Page 5 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 4. Fasten Mounts · Tie your mechanical coupling into your existing sanitary line using a 4x3” or 3x3” depending on your installation. · Thread in threaded bolts, be sure the slotted end is to the outside for later adjustments. Place plastic sleeves over the end of the bolts to protect during installation.
-
Page 6: Installation Instructions
WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 6. Tighten Water Connection · Hold shutoff valve stationary while tightening your water connection. · Install the locking nut as shown below. 7. Undo Waterline Hose · Once the water connection is made to the water shutoff valve, undo the other side of the hose. —... - Page 7 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 8. Flush Debris & Reconnect Waterline and Actuator · Turn on the valve to flush out any debris before re-installing to the actuator. · Once flushed, reconnect the waterline and actuator. — 6 —...
- Page 8 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 9. Secure Rough-in Box · Ensure roughing box is secure to keep any debris from entering the tank. — 7 —...
- Page 9 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 10a. Finished Wall Installation — 8 —...
- Page 10 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 10b. Fixed Wood Frame Installation — 9 —...
- Page 11 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS Toilet Installation 1. Fit Pipes · Install pipes and make sure they are thoroughly inserted. · With a ruler, mark a line on the pipe where it meets the finished wall. · Remove from wall and install pipes in the back of the toilet and make sure they are thoroughly inserted. ·...
- Page 12 WALL-HUNG CARRIER SYSTEM INSTALLATION INSTRUCTIONS 3. Mount Bowl · With grease sponge, thoroughly lubricate all ends. · Before mounting, measure thickness of china and mounting hardware to get approximate depth of threaded rods. · Use slotted end of thread bolt to adjust in or out. Do not damage the thread. 1”...
- Page 13 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
