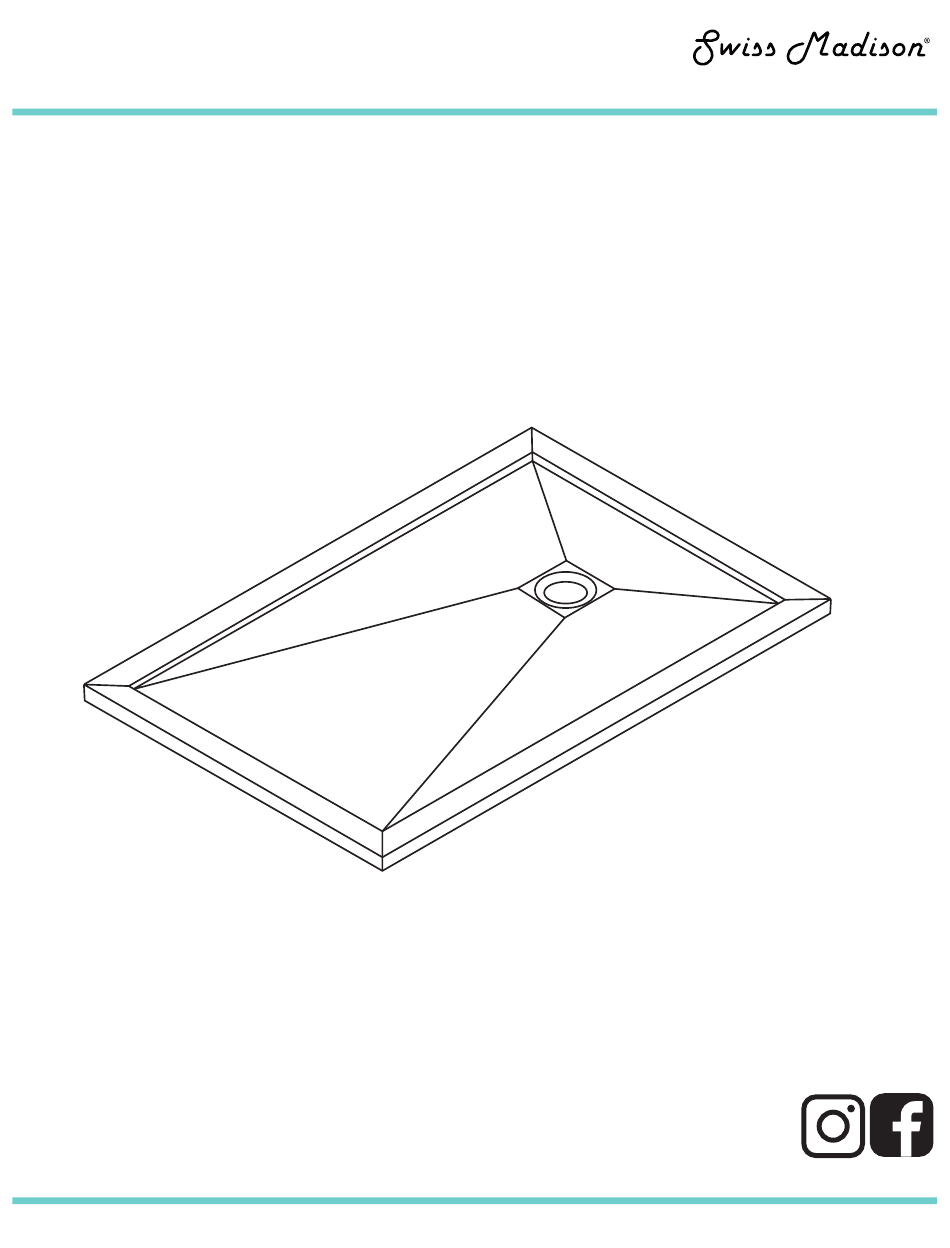

- Page 1 Resin Terre B Shower Base INSTALLATION INSTRUCTIONS w e l l m a d e f o r e v e r @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. -
Page 3: Preparing The Base
RESIN TERRE B SHOWER BASE INSTALLATION INSTRUCTIONS 1. Leveling the floor · Verify that the shower base is level using the “level” tool on all four sides. · If the shower base is level proceed to step 2. · If shower base is not level use shims or mortrar compound to adjust accordingly. Verify with level tool. - Page 4 RESIN TERRE B SHOWER BASE INSTALLATION INSTRUCTIONS 2. Preparing the base · Install the drainer with the center of the shower tray drain. · To ensure a leveled finish using the mortar compound, make sure that the hole around the drain is not higher than 2 cm and is not below base level.
- Page 5 RESIN TERRE B SHOWER BASE INSTALLATION INSTRUCTIONS 3. Shower base installation · Before placing adhesive, put the shower tray on the base and connect the drainer. Pour water onto the base. Check the water flows directly to the drain. This verification is important for inspecting a leveled base.
- Page 6 RESIN TERRE B SHOWER BASE INSTALLATION INSTRUCTIONS 3. Shower base installation · To secure the drain to the base, apply a silicone sealant around the perimeter of the rubber gasket as well. · After all checks and adjustments, apply straight lines of silicone sealant along the leveled floor. NOTE: If you are finishing a tiled wall on the sides of the shower base, it is necessary to leave that side free from the silicone sealant and leave 3mm of space between the shower tray and the wall to fit the tiles.
- Page 7 RESIN TERRE B SHOWER BASE INSTALLATION INSTRUCTIONS 3. Shower base installation · Prepare the showere tray with masking tape before sealing and fill the joint between the shower tray and the walls with silicone. Let it dry for 24 hours. ·...
-
Page 8: Routine Maintenance
RESIN TERRE B SHOWER BASE INSTALLATION INSTRUCTIONS 4. Routine maintenance · You may use soap and water with a soft cloth or cleaning cloth. Do NOT use a scouring pad or sponge to avoid scratching. Daily cleaning is recommended. · For a deeper clean, you may use a commercial cleaning product, but it is important to rinse thorough and ensure the pan dries after cleaning to avoid prolonged stains. -
Page 9: One-Year Limited Warranty
(including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
