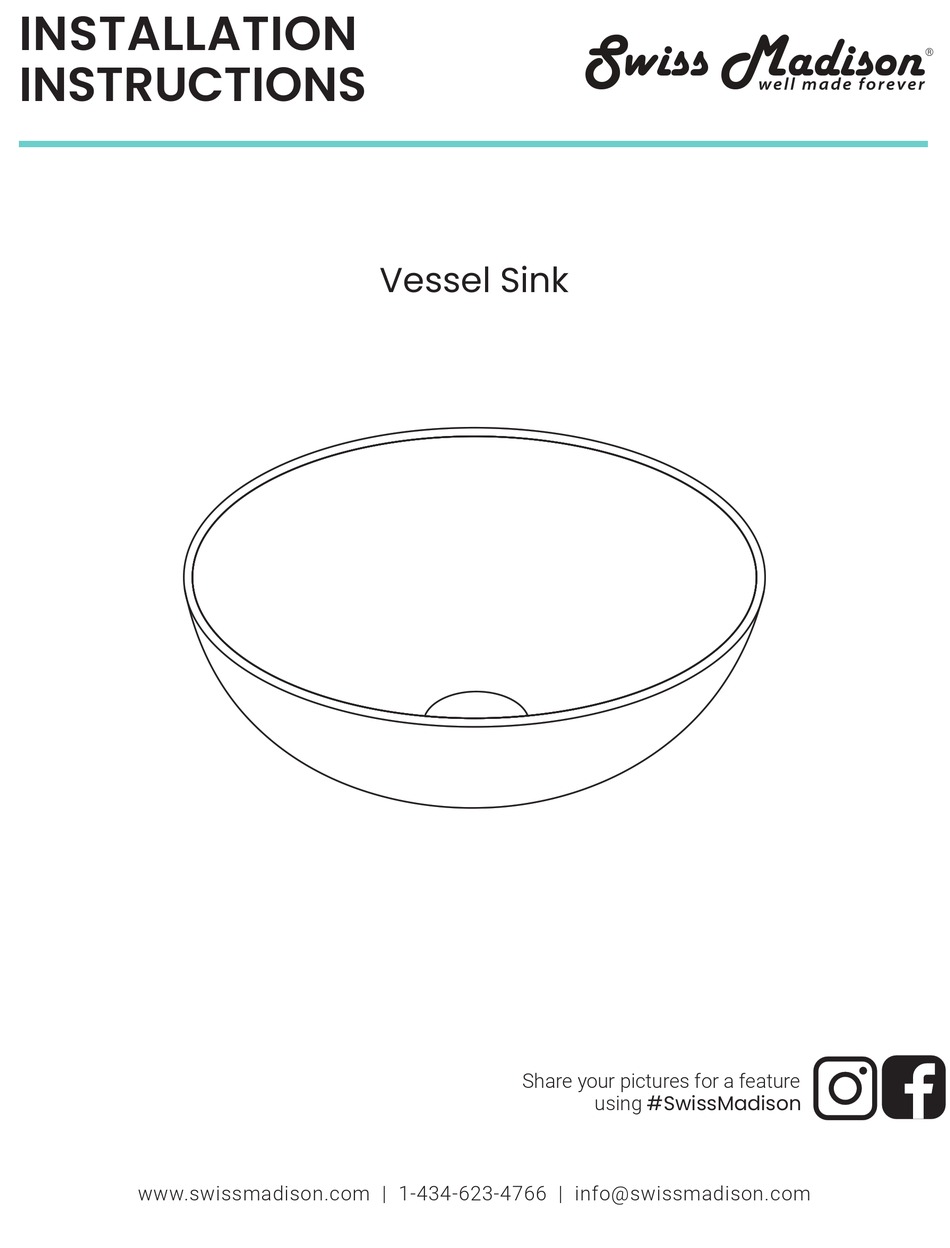

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Vessel Sink Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for purchasing a Swiss Madison Vessel Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 3 VESSEL SINK MODELS 18 ¹¹⁄16” L” W” 13 ³⁄4” H” 5 ¹¹⁄16” L” x W” x H” 18 ¹¹⁄16” x 13 ³⁄4” x 5 ¹¹⁄16” SKU - Color SM-VS201 - White *Matching Drain: SM-PD24 SM-PD25 19 7⁄8” 23 7⁄16” 18 ¹¹⁄16” 13 ³⁄4”...
- Page 4 VESSEL SINK MODELS 16 ¹5⁄16” 23 ¹⁄4” 16 ¹5⁄16” 15 ³⁄8” 8 ¹¹⁄16” 6 ¹¹⁄16” 23 ¹⁄4” x 15 ³⁄8” x 8 ¹¹⁄16” 16 ¹5⁄16” x 16 ¹5⁄16” x 6 ¹¹⁄16” SM-VS211 - White SM-VS212 - White *Matching Drain: SM-PD23 *Matching Drain: SM-PD23 14 9⁄16”...
- Page 5 VESSEL SINK MODELS 15 ³⁄4” 24 ³⁄16” 15 ³⁄4” 16 ¹⁄8” 4 ¹⁄2” 4 5⁄16” 24 ³⁄16” x 16 ¹⁄8” x 4 ¹⁄2” 15 ³⁄4” x 15 ³⁄4” x 4 5⁄16” SM-VS231 - White SM-VS232 - White *Matching Drain: SM-PD24 *Matching Drain: SM-PD24 SM-PD25 SM-PD25...
- Page 6 VESSEL SINK MODELS 16 9⁄16” 19 ¹¹⁄16” 16 9⁄16” 19 ¹¹⁄16” 6 5⁄16” 6 ¹⁄2” 16 9⁄16” x 16 9⁄16” x 6 5⁄16” 19 ¹¹⁄16” x 19 ¹¹⁄16” x 6 ¹⁄2” SM-VS252 - White SM-VS262 - White *Matching Drain: SM-PD23 *Matching Drain: SM-PD23 25 ³⁄16”...
- Page 7 VESSEL SINK MODELS 28 ¹⁄8” 22 ¹⁄16” 16 9⁄16” 16 ³⁄16” 5 ¹¹⁄16” 5 ¹¹⁄16” 28 ¹⁄8” x 16 ³⁄16” x 5 ¹¹⁄16” 22 ¹⁄16” x 16 9⁄16” x 5 ¹¹⁄16” SM-VS274 - White SM-VS275 - White *Matching Drain: SM-PD24 *Matching Drain: SM-PD24 SM-PD25 SM-PD25...
- Page 8 VESSEL SINK MODELS 31 ¹⁄2” 23” 17 ¹⁄8” 15 ³⁄8” 5 ¹¹⁄16” 5 ¹⁄2” 31 ¹⁄2” x 17 ¹⁄8” x 5 ¹¹⁄16” 23” x 15 ³⁄8” x 5 ¹⁄2” SM-VS292 - White SM-VS278 - White *Matching Drain: SM-PD23 *Matching Drain: SM-PD24 SM-PD25 19 5⁄16”...
-
Page 9: Installation Instructions
VESSEL SINK INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. - Page 10 VESSEL SINK INSTALLATION INSTRUCTIONS 2. Drill Countertop 3. Install Faucet · Cut the opening for the drain in the countertop. · Install faucet and its components. ALWAYS WEAR PROTECTIVE GEAR WHEN USING DANGEROUS MATERIALS 4. Install Sink · Check alignment of the sink to the opening in the countertop. ·...
-
Page 11: One-Year Limited Warranty
If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
