Summary of Contents for Swiss Madison SM-UM621

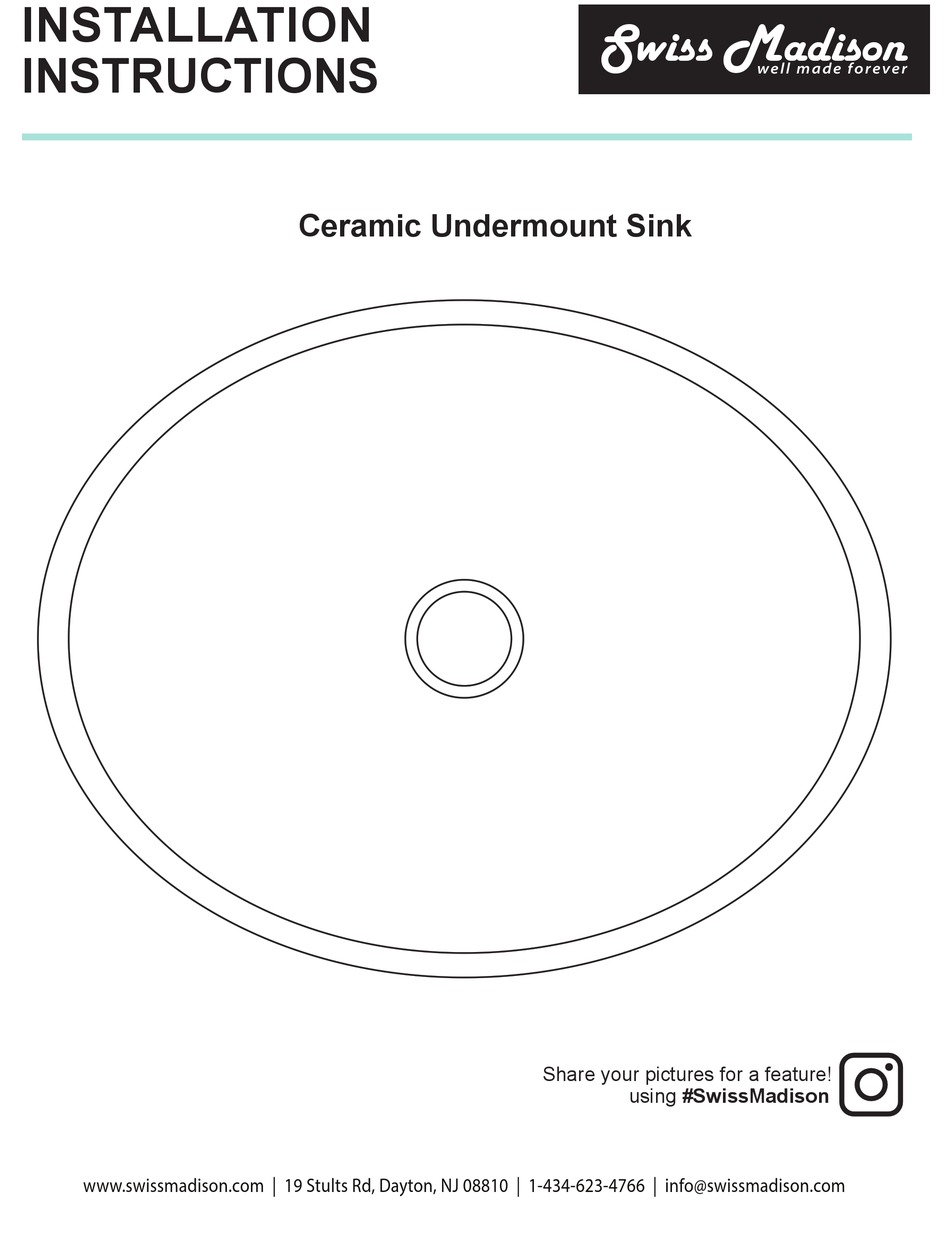

- Page 1 INSTALLATION wiss adison INSTRUCTIONS Ceramic Undermount Sink Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 19 Stults Rd, Dayton, NJ 08810 | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Prior to Installation: Inspect sink to ensure no damages have occurred while in shipping If provided, use the Swiss Madison cut out template Observe all plumbing and building codes in accordance with your state and local requirements Additional oor and wall preparations may be necessary to avoid damage to the product Installation with laminate countertop not recommended We recommend professional countertop installers.
- Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Ceramic Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 4 UNDERMOUNT SINK MODELS 21” 18.5” 19.3” 15” 15.25” 16.14” SM-UM621 SM-UM622 SM-UM623 18.5” x 15.25” x 8” 19.3” x 16.14” x 8.25” 21” x 15” x 8” *Matching Drain: SM-PD23R *Matching Drain: SM-PD23R *Matching Drain: SM-PD23R 16.75” 18.5” 21.3” 14”...
-
Page 5: Installation Instructions
Jig Saw/ Hacksaw Liquid Safety Glasses Pencil Tape Measure Nail PARTS LIST Swiss Madison Sink NOTE: Specialized tools may be necessary to install Swiss Madison Ceramic Undermount sinks with countertop materials other than wood, marble, or granite. — 4 —... - Page 6 UNDERMOUNT SINK INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional Read the complete instruction manual before beginning installation.
- Page 7 2. Clean Countertop Make sure to thoroughly clean the underside of the countertop and let it dry completely. Note: The undersides of counters tend to be rough and un nished which makes it easy to hold debris. You want to make sure it’s clean so nothing interferes with the bond between adhesive and the countertop. 3.
- Page 8 5. Secure Sink to Countertop Once again clean underside of the countertop and around cut-out area making sure area is free of defects. Apply a liquid nail or adhesive of choice to the rim of the sink near the inside edge. Be careful not to miss or skip any area.
- Page 9 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
