Summary of Contents for Swiss Madison Vivante Smart Toilet SM-STS01

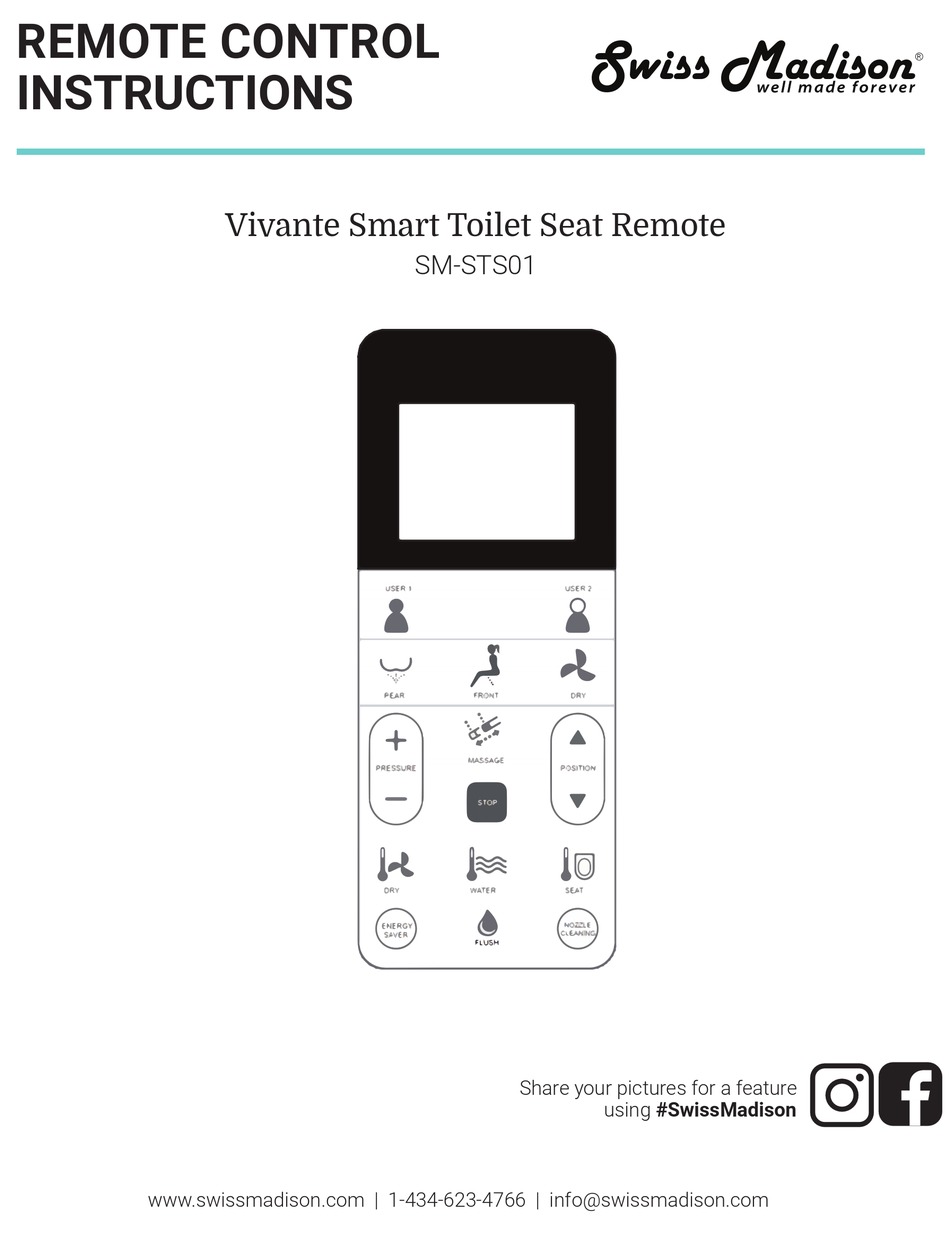

- Page 1 REMOTE CONTROL wiss adison ® ® INSTRUCTIONS Vivante Smart Toilet Seat Remote SM-STS01 Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 To learn more about our products, please visit: www.swissmadison.com Sincerely, The Swiss Madison Team Prior to Installation: Inspect toilet seat to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements.
- Page 3 The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. 1. Read the complete instruction manual before beginning installation.
-
Page 4: Table Of Contents
SMART SEAT BIDET REMOTE CONTENTS Installation Preparation 1. Remote control installation Usage Instruction 1. Remote control illustration 2. Rear/Front cleaning operation 3. Dry operation 4. Massage operation 5. Spray nozzle position adjustment 6. Water pressure adjustment 7. Energy saver 8. Full flush 9. -
Page 5: Remote Control Installation
SMART SEAT BIDET REMOTE REMOTE INSTALLATION 1. Drill a 6 mm diameter hole on the wall with a 2. Remove the adhesive’s protective film on depth of 35 mm. Make sure the placement is the back of the hanger. reachable from the toilet seat. 3. -
Page 6: Usage Instruction
SMART SEAT BIDET REMOTE USAGE INSTRUCTIONS Signal instruction User code User code Front cleaning Rear cleaning Drying Massage Water pressure Spray nozzle position Stop Seat temperature Dry temperature Energy saver Nozzle cleaning Flush button Water temperature Load settings user 2 Lid close/seat close Lid open/seat open Hardware... -
Page 7: Rear/Front Cleaning Operation
SMART SEAT BIDET REMOTE USAGE INSTRUCTIONS Rear/Front Cleaning Press “REAR/FRONT” button, the water comes out of the wand to clean the rear/front portion of body. It will automatically stop after a cycle of cleaning. Pressing “STOP” will stop the function immediately. Drying Operation Press “DRY”... -
Page 8: Massage Operation
SMART SEAT BIDET REMOTE USAGE INSTRUCTIONS Massage Press “MASSAGE” button to activate massage function, the nozzle moves forward and back to extend the cleaning scope; Press “MASSAGE” button again to stop the function. Spray Nozzle Position Adjustment During “REAR” or “FRONT”, press spray nozzle button of “ ”... -
Page 9: Energy Saver
SMART SEAT BIDET REMOTE USAGE INSTRUCTIONS Energy Saver Press “ENERGY SAVER” button, LCD screen shows energy saver and figures. It shows three options of energy saver period as 3-6-9-off, which can be selected accordingly. For example, user can set from 9:00 to 15:00 as energy saver according to following operation. -
Page 10: Full Flush
SMART SEAT BIDET REMOTE USAGE INSTRUCTIONS Full Flush (only for toilets with auto flush function) Press “FLUSH” button to activate full flushing. Nozzle Cleaning Nozzle Self-Cleaning by Quick Press: Nozzle Self-Cleaning by Long Press: The deodorization function starts to Long press “NOZZLE CLEANING” work automatically as the user sits on button, the spray won’t move forward the seat and stops automatically 3... -
Page 11: Temperature Adjustment
SMART SEAT BIDET REMOTE TEMPERATURE ADJUSTMENT Dry Temperature Adjustment: Press “DRY” button to adjust temperature for drying. The LCD display of 1 to 5 lines means level 1 to 5. No display means normal temperature. Adjust level by up and down buttons. Water Temperature Adjustment: Press “WATER”... -
Page 12: User Code
SMART SEAT BIDET REMOTE USAGE INSTRUCTIONS User Code (only for toilets with User Code function) Long press “USER 1” or “USER 2” button to save the parameters including current pressure, nozzle position, dry temperature, water temperature, seat temperature and massage status. Quick press “USER 1”... -
Page 13: Auto Function
SMART SEAT BIDET REMOTE USAGE INSTRUCTIONS Auto Function (only for toilets with Auto Flush function) Full-automatic function can be achieved by three ‘”AUTO” buttons, convenient and practical. User can pre-set the suitable nozzle position, water pressure and temperature and save the setting. Full-automatic function will be activated by pressing the related function button when using afterwards. -
Page 14: Combination Button
SMART SEAT BIDET REMOTE USER INSTRUCTIONS Combination Button Night Light Press “STOP” button, then “DRY” button, night light will be in the off state; Repeat the process, night light will switch to non-intelligent state. Repeat above process constantly, the night light will switch between off state and intelligent state. - Page 15 SMART SEAT BIDET REMOTE AUTOMATIC FUNCTION Set Automatic Rear Cleaning Function The default setting of the automatic water pressure, nozzle position, water temperature, wind temperature and seat temperature are on level three, the massage function is in the off state. User can reset based on personal preference.
-
Page 16: Setting Front Cleaning
SMART SEAT BIDET REMOTE AUTOMATIC FUNCTION Set Automatic Front Cleaning Function 1. Press spray nozzle position adjustment button to adjust nozzle to suitable position; Press “+”, “-” to adjust water pressure; set temperature level; open/close massage function. 2. Press “ ”... -
Page 17: Setting Rear/Front Cleaning
SMART SEAT BIDET REMOTE AUTOMATIC FUNCTION Set Automatic Rear and Front Cleaning Combination Function NOTE: During using toilet, user can find the suitable level and temperature after comparing repeatedly. Please set the automatic Rear and Front cleaning combination function during toilet usage. The first stage: Rear Cleaning 1. - Page 18 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
