Summary of Contents for Swiss Madison Pierre SM-BV551

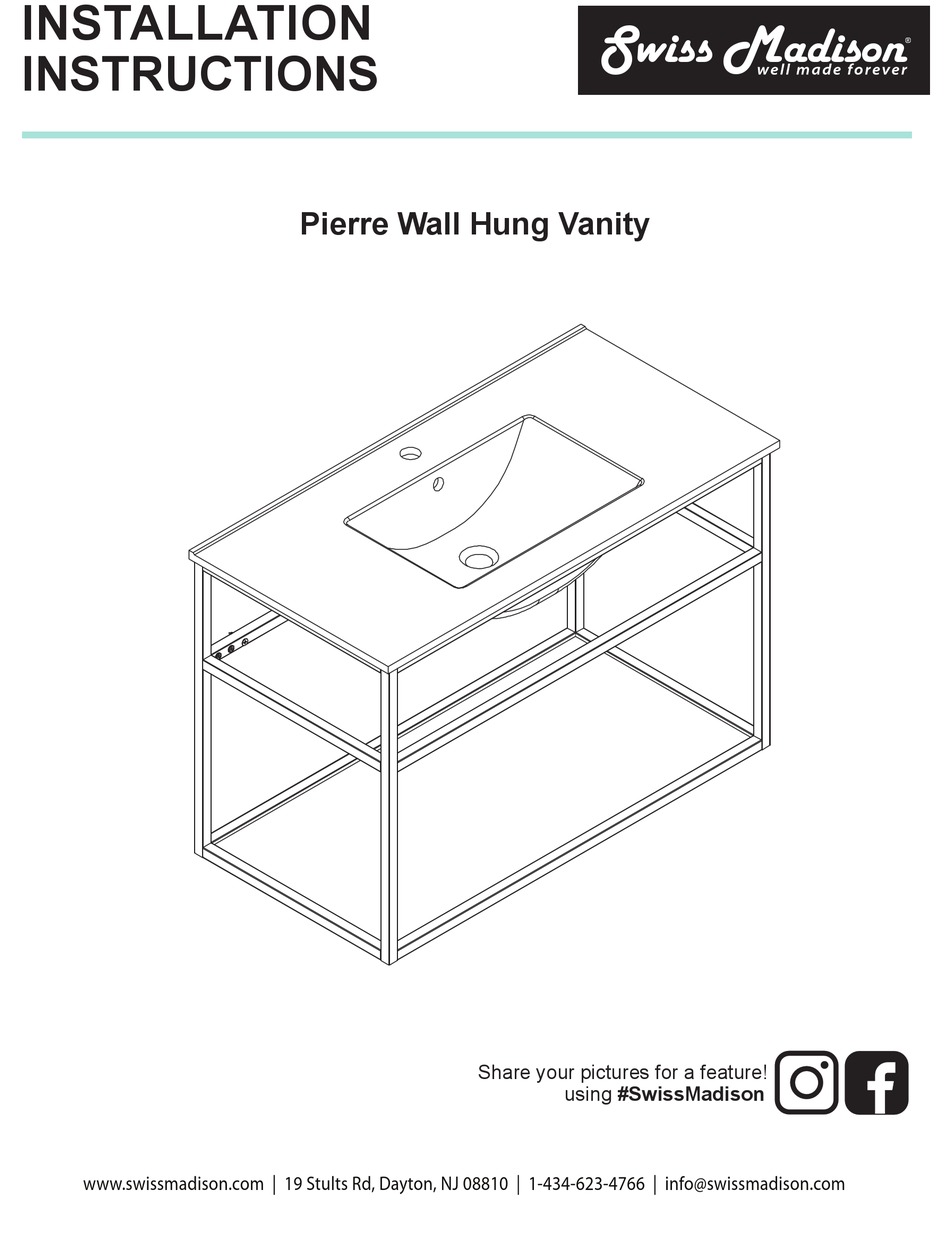

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Pierre Wall Hung Vanity Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 19 Stults Rd, Dayton, NJ 08810 | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Prior to Installation: Inspect sink to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Additional oor and wall preparations may be necessary to avoid damage to the product. Height of console frame is NOT adjustable.
- Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Vanity Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 4 WALL HUNG VANITY MODELS 19 ⁄ ” 24” 19 ⁄ ” 24” 23 ¼” SM-BV551 SM-BV552 19 ⁄ ” x 9 ⁄ ” x 25 ⁄ ” 24” x 18 ⁄ ” x 24” 47 ⁄ ” 35 ⁄ ” 35 ⁄...
-
Page 5: Installation Instructions
Console Components Faucet (not included) Drain (not included)* SM-PD23B SM-PD23Z NOTE: Specialized tools may be necessary to install Swiss Madison Vanity Top Sink. *Matching drains are not included, please contact us if you wish to purchase one. — 4 —... - Page 6 WALL HUNG VANITY INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional Read the complete instruction manual before beginning installation.
- Page 7 2. Install Vanity Base 3. Install Faucet and Drain Secure your vanity base to the wall in your Following manufacturer's instructions, install drain desired location. and faucet onto vanity top. NOTE: Use wall anchors along with included hardware. 4. Apply Adhesive 5.
- Page 8 5. Install Plumbing Fixtures 6. Installing Plumbing Fixtures Connect drain, trap to drain, and water supply connections Apply a bead of caulk along the back edge to the faucet according to manufacturer’s instruction. of the sink against the wall. Wipe away any excess. Run water and check for leaks.
- Page 9 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
