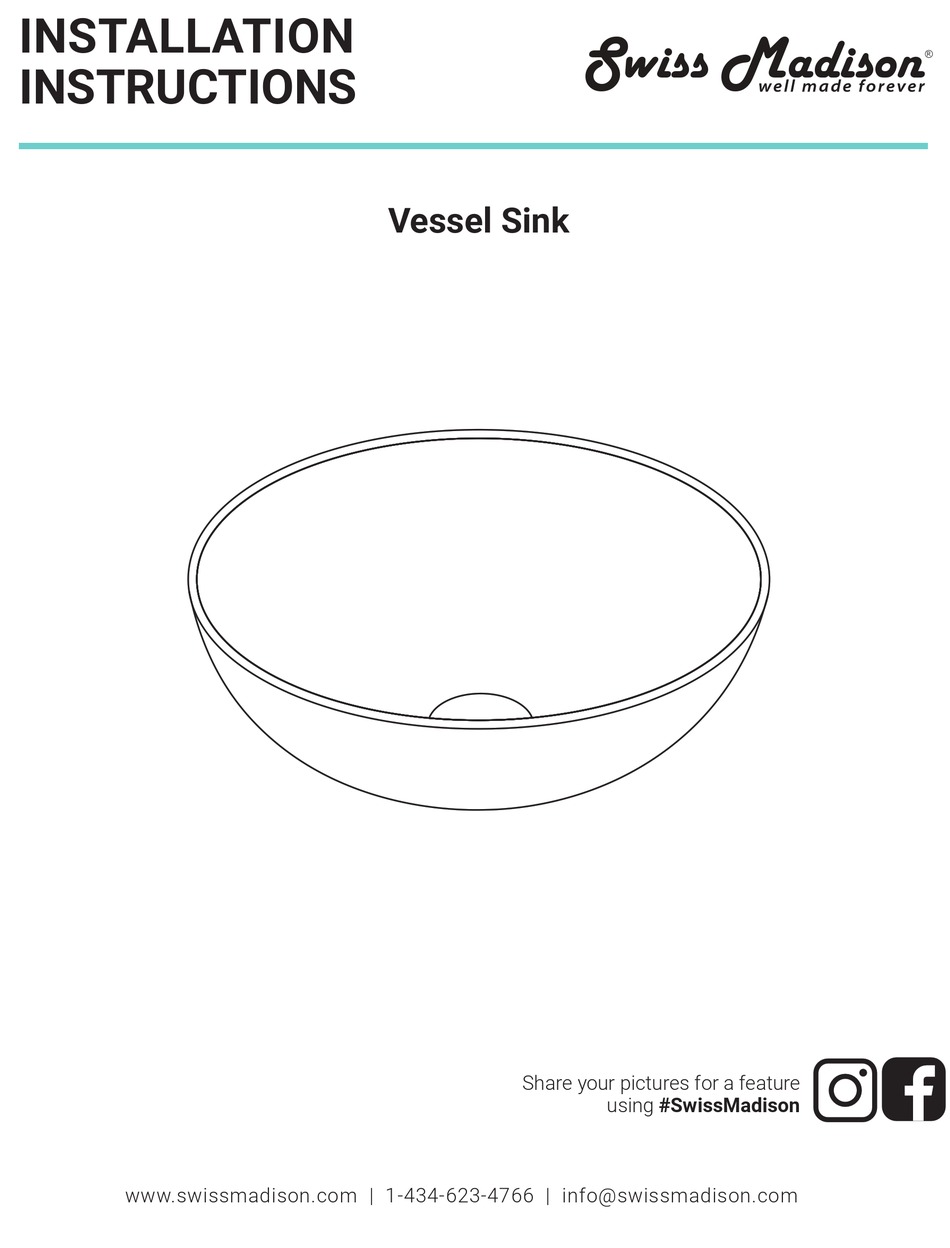

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Vessel Sink Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Prior to Installation: Inspect sink to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Additional floor and wall preparations may be necessary to avoid damage to the product. All dimensions are nominal! Be sure to measure your sink prior to installation.
- Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Vessel Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 4 18 ¹¹⁄16” 13 ³⁄4” 5 ¹¹⁄16” 6 ¹¹⁄16” 18 ¹¹⁄16” x 13 ³⁄4” x 5 ¹¹⁄16” 23 7⁄16” x 18 ¹¹⁄16” x 6 ¹¹⁄16” SM-VS201 - White SM-VS202 - White *Matching Drain: SM-PD24 *Matching Drain: SM-PD23 SM-PD25 23 ¹⁄4” 19 7⁄8”...
- Page 5 VESSEL SINK MODELS 16 5⁄16” 16 ¹5⁄16” 16 5⁄16” 16 ¹5⁄16” 6 ¹¹⁄16” 4 ³⁄4” 16 ¹5⁄16” x 16 ¹5⁄16” x 6 ¹¹⁄16” 16 5⁄16” x 16 5⁄16” x 4 ³⁄4” SM-VS212 - White SM-VS222 - White *Matching Drain: SM-PD23 *Matching Drain: SM-PD23 14 9⁄16”...
- Page 6 VESSEL SINK MODELS 15 ³⁄4” 19 ¹¹⁄16” 15 ³⁄4” 15 ³⁄4” 4 5⁄16” 4 5⁄16” 15 ³⁄4” x 15 ³⁄4” x 4 5⁄16” 19 ¹¹⁄16” x 15 ³⁄4” x 4 5⁄16” SM-VS232 - White SM-VS242 - White *Matching Drain: SM-PD24 *Matching Drain: SM-PD24 SM-PD25 SM-PD25...
- Page 7 VESSEL SINK MODELS 25 ³⁄16” 19 ¹¹⁄16” 19 ¹¹⁄16” 16 ¹⁄8” 4 ¹5⁄16” 6 ¹⁄2” 19 ¹¹⁄16” x 19 ¹¹⁄16” x 6 ¹⁄2” 25 ³⁄16” x 16 ¹⁄8” x 4 ¹5⁄16” SM-VS262 - White SM-VS272 - White *Matching Drain: SM-PD23 *Matching Drain: SM-PD24 SM-PD25 17 ³⁄4”...
- Page 8 VESSEL SINK MODELS 18 ¹⁄2” 28 ¹⁄8” 13 ³⁄4” 16 ³⁄16” 5 5⁄16” 5 ¹¹⁄16” 28 ¹⁄8” x 16 ³⁄16” x 5 ¹¹⁄16” 18 ¹⁄2” x 13 ³⁄4” x 5 5⁄16” SM-VS275 - White SM-VS277 - White *Matching Drain: SM-PD24 *Matching Drain: SM-PD23 SM-PD25 22 ¹⁄16”...
-
Page 9: Installation Instructions
Pencil Adhesive PARTS LIST Swiss Madison Sink Sink Faucet (not included) Sink Drain (not included) NOTE: Specialized tools may be necessary to install a Swiss Madison Vessel Sink with countertop materials other than wood, marble, or granite. — 8 —... - Page 10 VESSEL SINK INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional.
- Page 11 3. Install Faucet Install faucet and it’s components. 4. Install Sink Check alignment of the sink to the opening in the countertop. Use a bead of clear silicone (or preferred adhesive) around the underside of the sink. Carefully place the sink on the countertop, align, and press firmly. Allow sealant to set above 60 minutes.
-
Page 12: One-Year Limited Warranty
If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
