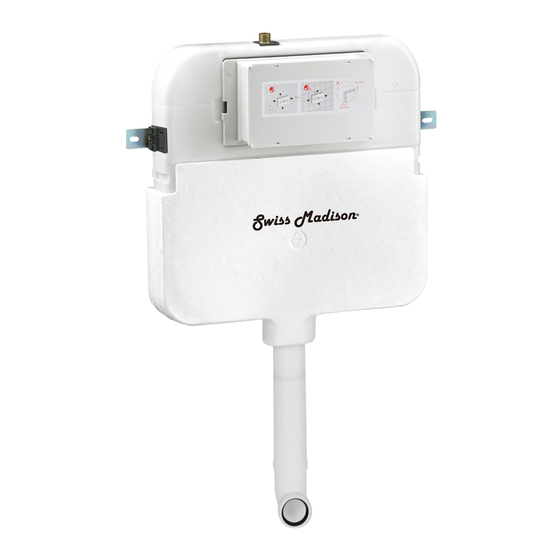

- Page 1 Back-to-Wall Carrier System ® INSTALLATION INSTRUCTIONS w e l l m a d e f o r e v e r Residential Concealed In-Wall Toilet Tank for Back-to-Wall Toilet SM-WC324 @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. -
Page 3: Installation Instructions
BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS Parts for Reference: Flush Actuator not included — 2 —... - Page 4 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 1. Fasten Mounts (if fastening to studs) · Adjust clips then fasten carrier to studs or wall framing. · Ensure frame is flush and level before fastening. *Click* — 3 —...
- Page 5 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 1. Fasten Mounts (if fastening to wall) · Adjust clips then fasten carrier to studs or wall framing. · Ensure frame is flush and level before fastening. ” Ø10 — 4 —...
- Page 6 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 2. Cut Pipe · Measure and cut pipe according to your toilet. · Make sure to measure the sub floor and finished floor measurements before cutting to have the correct center. · Once pipe is cut, remove any burrs. ”...
- Page 7 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 4. Remove Plate · Remove plate and attach to water connection. 5. Attach Water Connection · Hold the shut-off valve stationary while tightening water connection. · Install locking nut as shown. — 6 —...
- Page 8 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 6. Flush Debris · After attaching water connection to shut-off valve, undo the other side of the hose. · Turn on valve to flush any debris before installing the actuator. 7. Reconnect Water Supply · After flushing debris, reconnect the water supply hose. —...
- Page 9 BACK-TO-WALL CARRIER SYSTEM INSTALLATION INSTRUCTIONS 8. Reinstall Plate · Reinstall actuator and cover plate. · Ensure roughing box is secure to keep debris from entering the tank. *Click* *Click* 9. Trim Roughing Box · After wall materials are installed, trim roughing box. ”...
- Page 10 BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS Toilet Installation 1. Fit Pipe · Install pipe and make sure it is thoroughly inserted. · With a ruler, mark a line on the pipe where it meets the finished wall. · Remove from wall and install pipe in the back of the toilet and make sure it is thoroughly inserted. ·...
- Page 11 BACK-TO-WALL TOILET BACK-TO-WALL TOILET INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Adjusting Flush Volume Make sure your water connection is shut prior to adjusting flush volume if the unit is already hooked up to the water line. Remove the inlet and outlet valves from the concealed cistern tank: Adjust the dimension of the outlet valve (A, B) and the dimension of the inlet valve (C) with the following dimensions (make sure to measure in mm): WC324 A= 9mm B= 2mm, C= 42mm...
- Page 12 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
